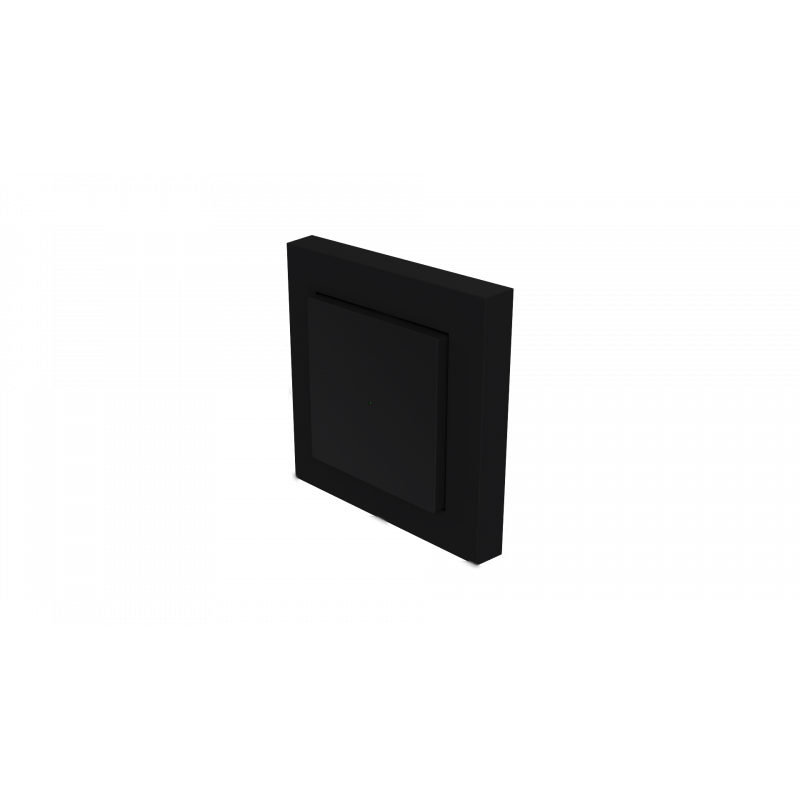

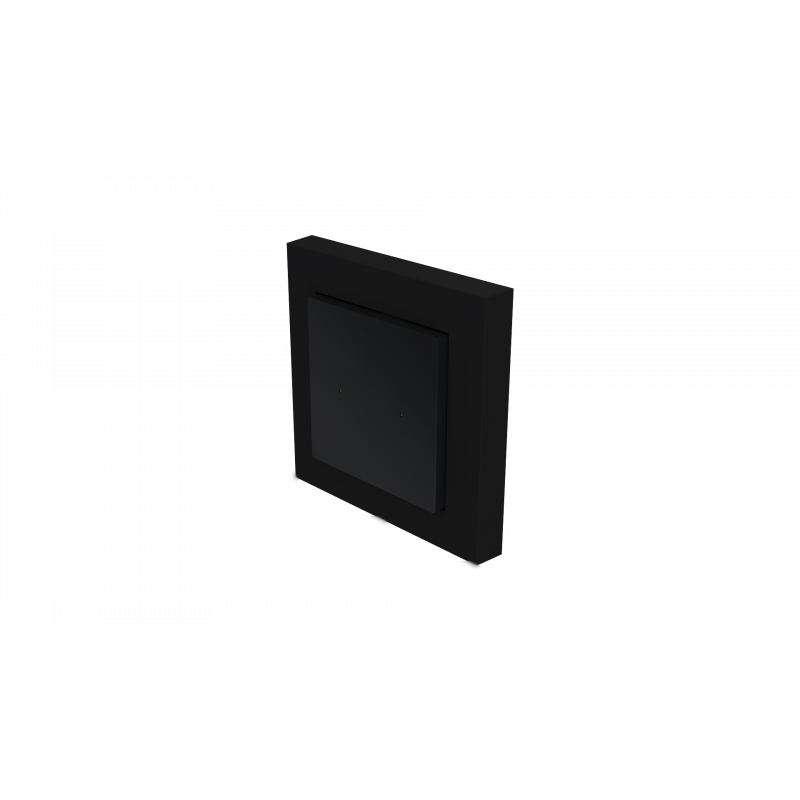

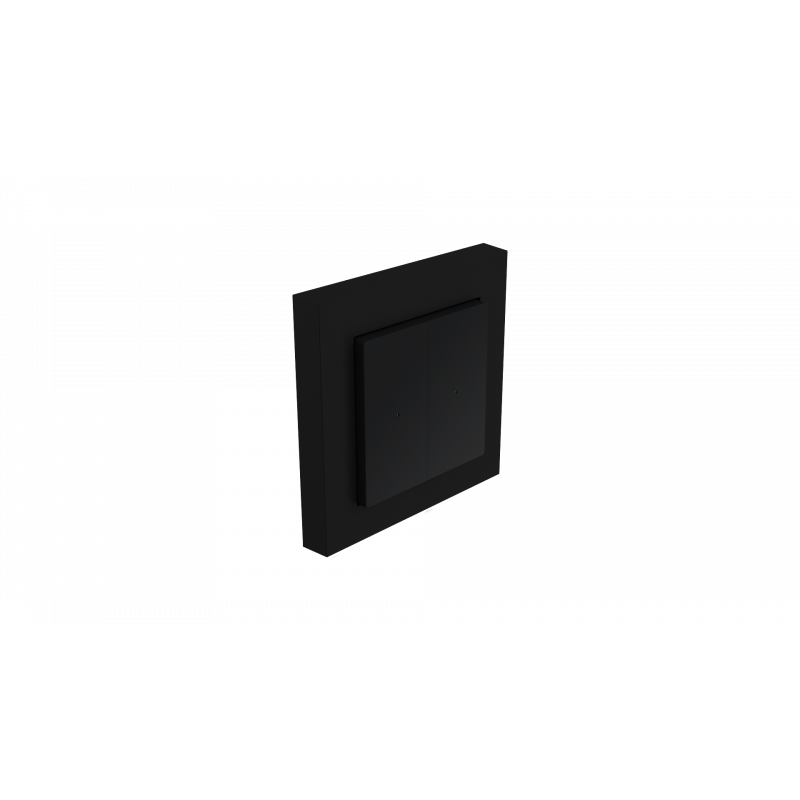

Controlador de parede Heatit Z-Push - Botão embutido Z-Wave

Características tecnicas

Tecnologia Domótica	Z-Wave Serie 700

Mais Informação

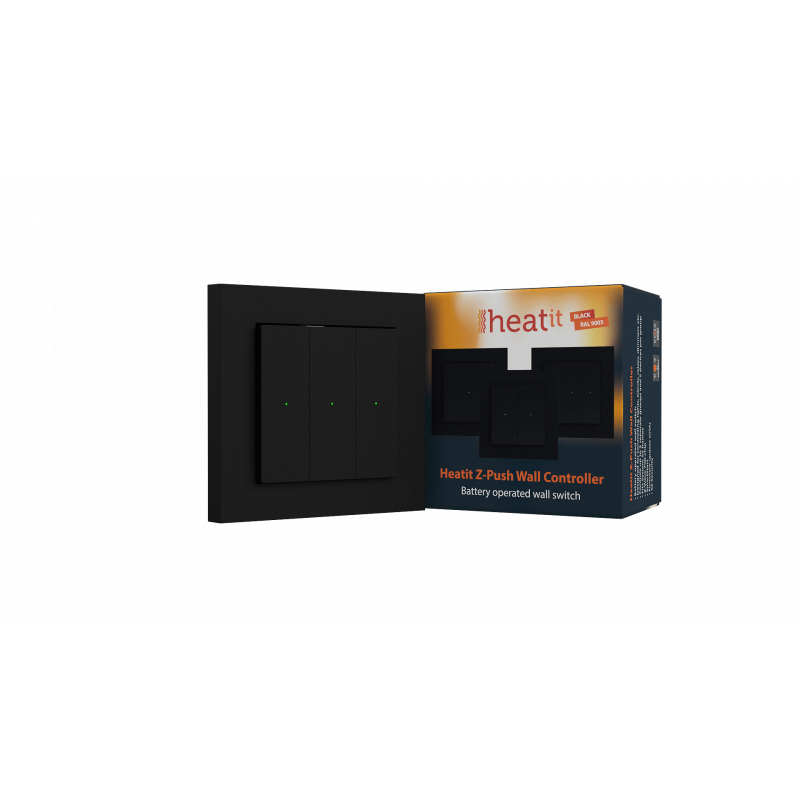

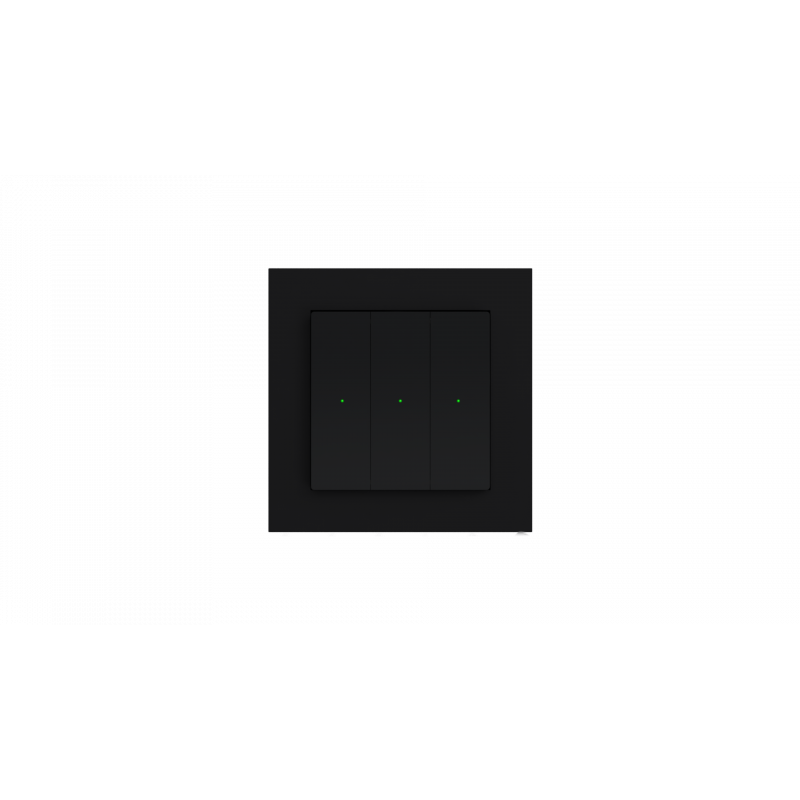

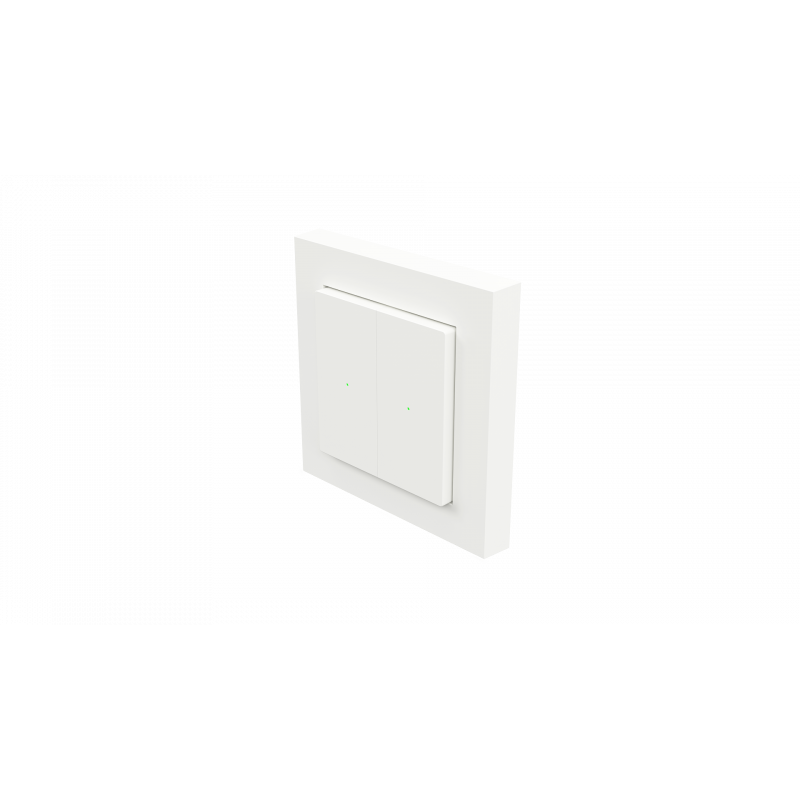

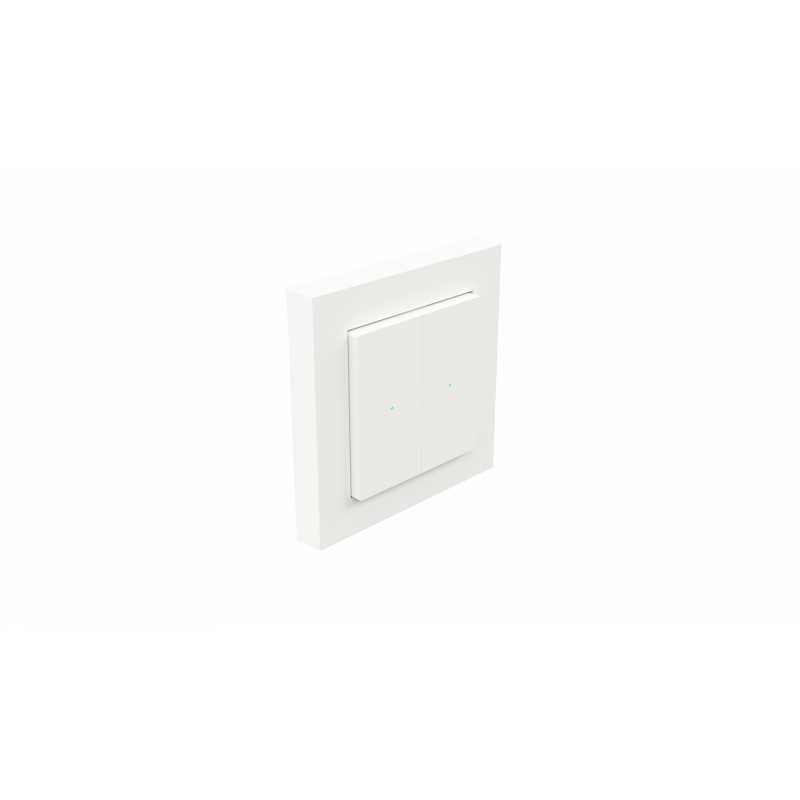

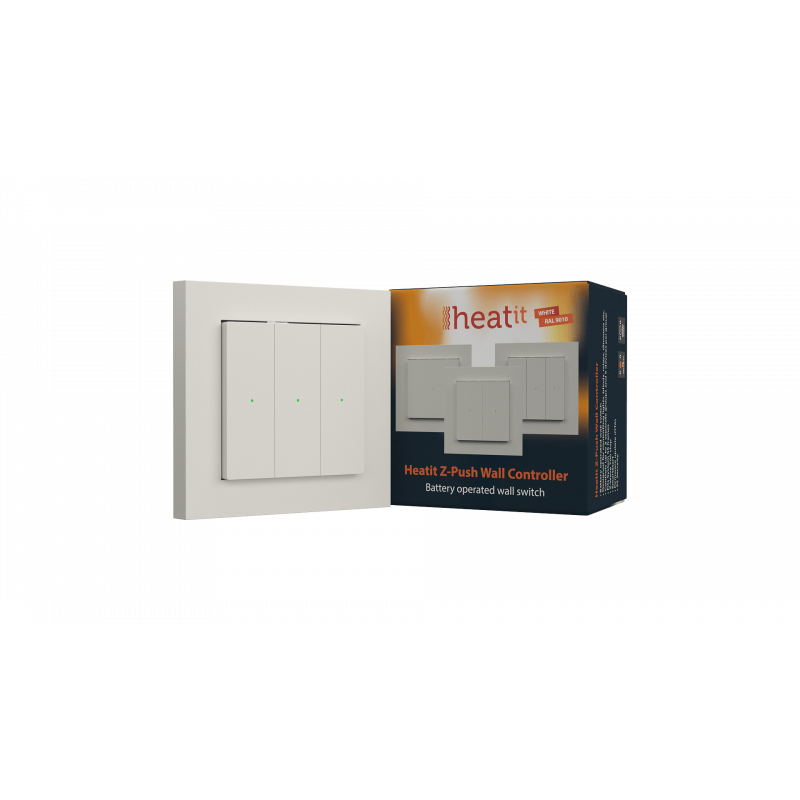

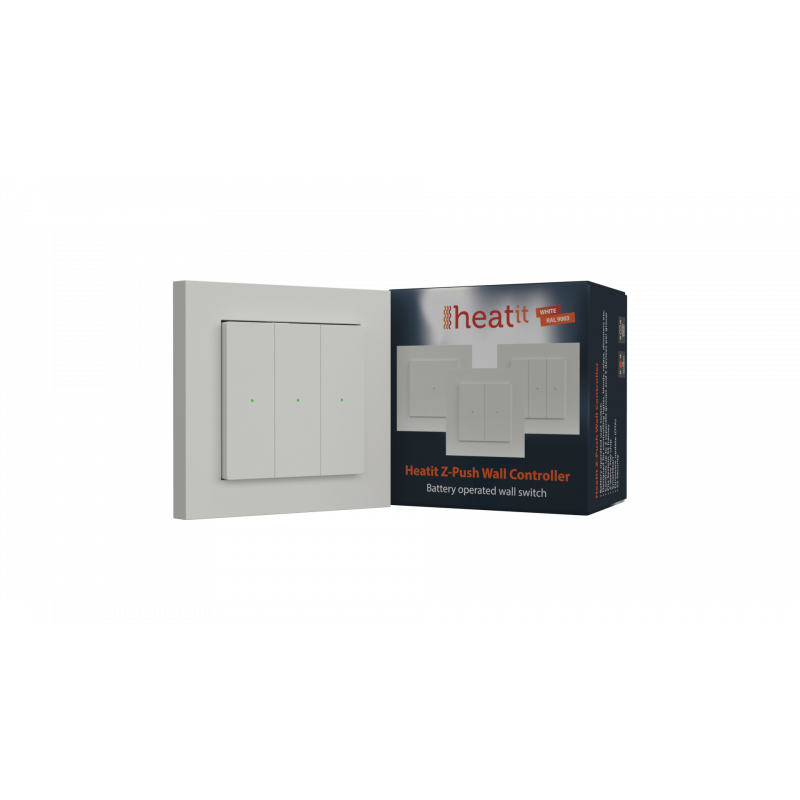

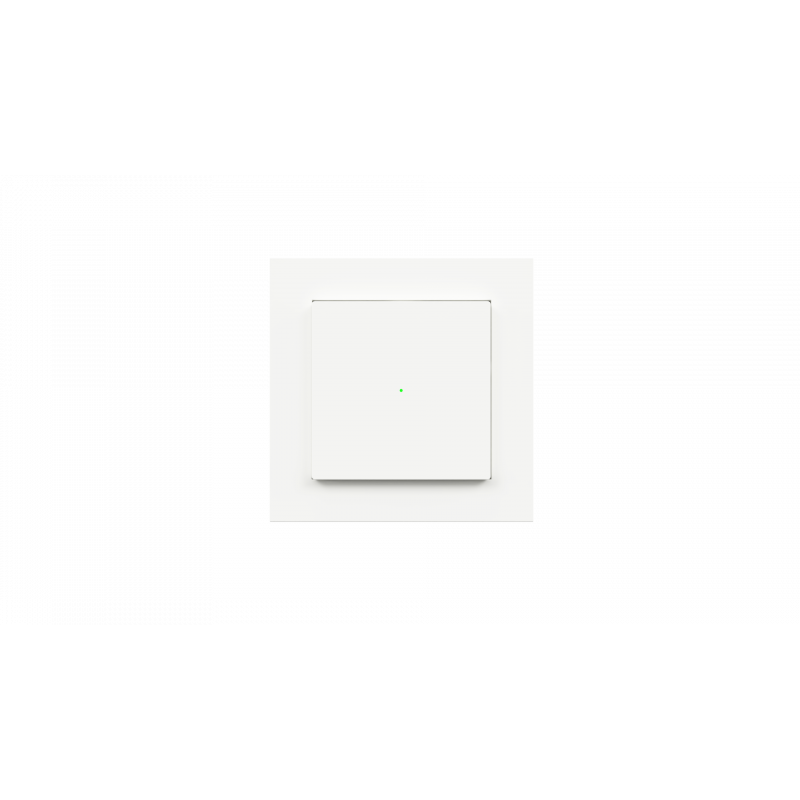

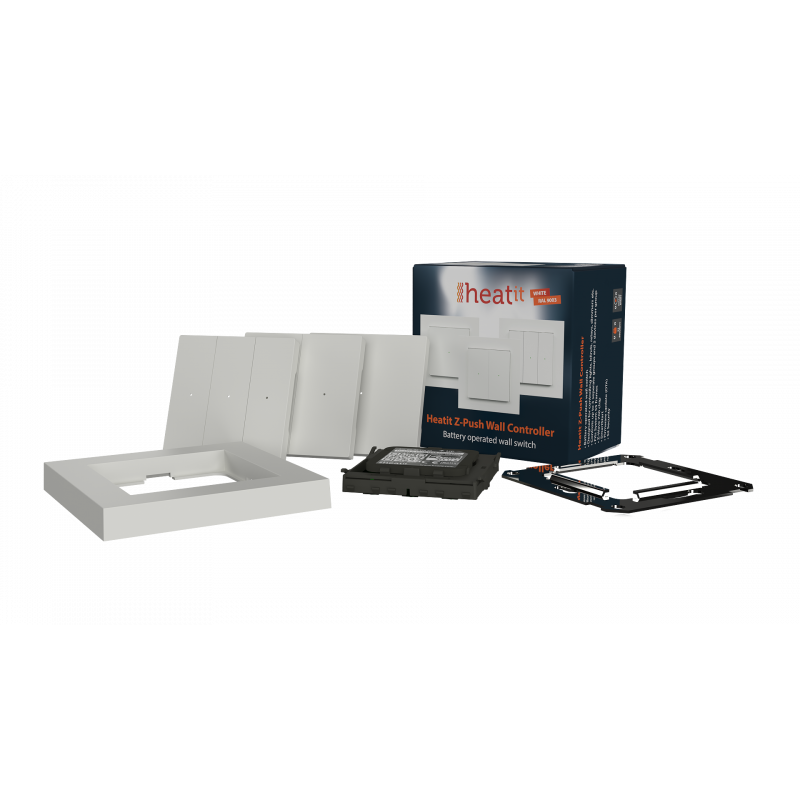

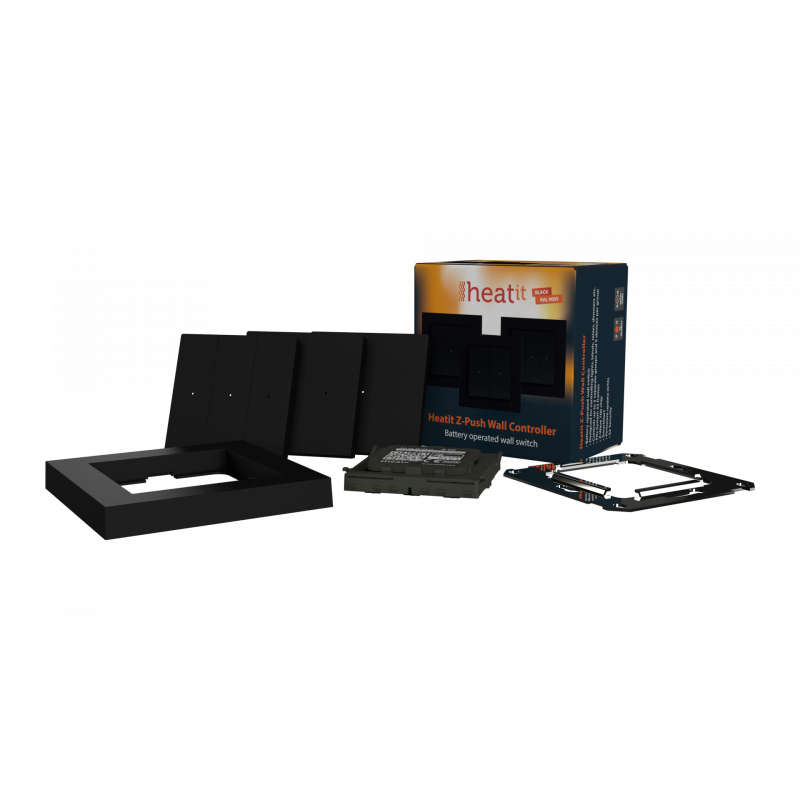

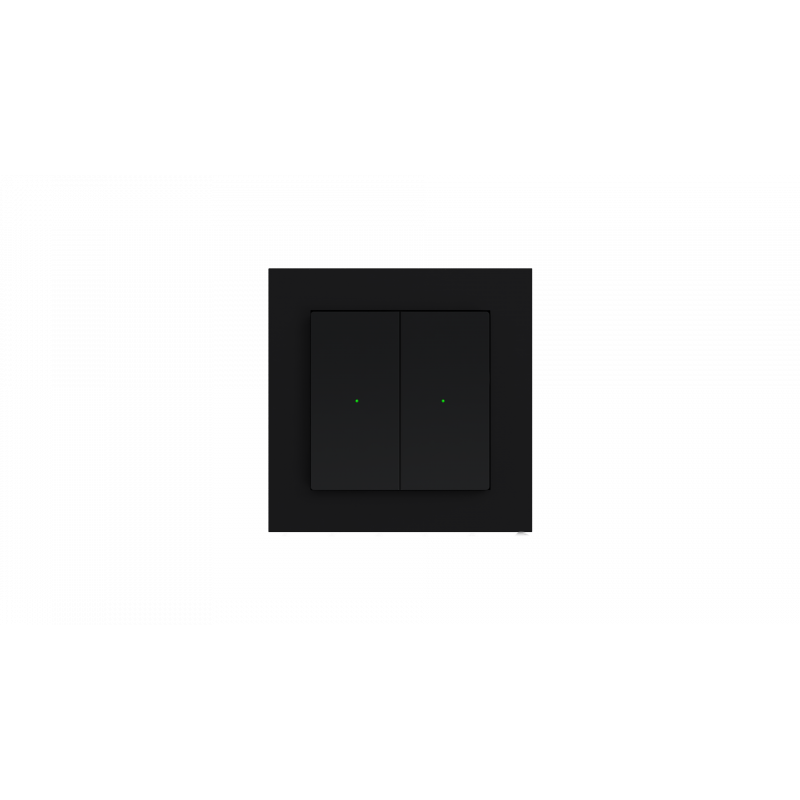

O controlador de parede Heatit Z-Push é um switch Z-Wave para montagem na parede. Ele vem com três frentes ou teclas, então você pode escolher entre 1, 2 ou 3 interruptores. Isso torna mais fácil e conveniente gerenciar seus produtos Z-Wave. O switch pode ser configurado para controlar cenários ou trabalhar com outros produtos Z-Wave. Cada chave seletora possui um LED de duas cores para indicar as ações. Este controlador de parede Heatit Z-Push vem com todas as três frentes de interruptor basculante.

O controlador de parede Heatit Z-Push é alimentado por uma bateria do tipo botão.
O produto deve ser usado principalmente em residências, mas pode ser usado em outros ambientes mais comerciais.

O controlador de parede Z-Push da Heatit possui SmartStart. Este recurso permite que o usuário inclua todos os dispositivos com SmartStart, digitalizando os códigos QR dos dispositivos. Na inicialização, todos os dispositivos são incluídos automaticamente no controlador de automação residencial (requer suporte SmartStart).

O produto é entregue na versão mate.
Se encaixa quadros do System-55.

Principais características do Z-Push

Interruptor de parede sem fio operado por bateria
Projetado para controlar luzes, persianas, relés, dimmers, etc.
Se encaixa quadros do sistema 55
Smartstart
Controle até 3 grupos separados e 5 dispositivos por grupo
10 tomadas de cena por gangorra
Fácil de colocar
Atualização de firmware (OTA)
Suporta modos de criptografia S0, S2 Class Authenticated e S2 Class Unauthenticated

Dados técnicos Z-Push

Protocolo IOT: Z-Wave - 868,4 MHz (UE)

Tensão: 1 x bateria CR2450

Grau de proteção (IP): IP 20

Certificações: Z-Wave Plus

Faixa de temperatura ambiente de armazenamento (° C): - 40

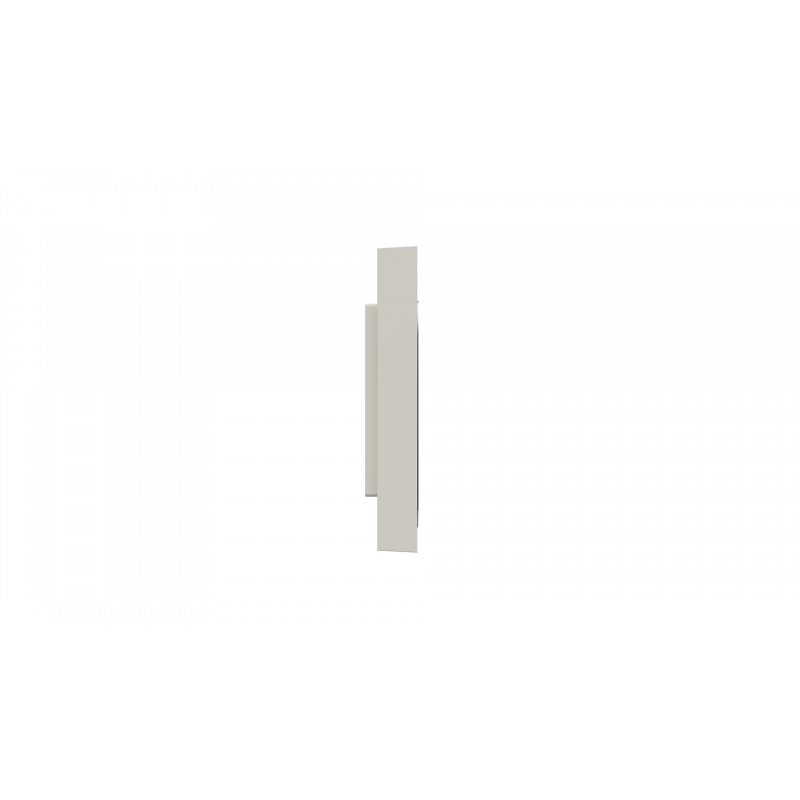

Dimensões (LxAxA): 55x55x13

Padrão internacional: CE, RoHS 2002/95 / CE, 2002/96 / CE (WEEE), 1999/5 / CE (RTTE)

Alcance do sinal de radiofrequência (número máximo de metros): 40

Umidade ambiente máxima (% UR): 95% metros RFA): 40

Umidade ambiente máxima (% UR): 95% RF

Fixação / montagem: fita adesiva dupla-face

Altura do produto (mm): 14

Comprimento do produto (mm): 55

Peso do produto (grama): 140

Largura do produto (mm): 55

Tipo de Chip: Z-Wave 700 Chip

Modo de criptografia Z-Wave: Classe S2 Não Autenticada, Classe S2 Autenticada, S0

Informação alargada da Z-Wave (Inglês)

Nome: Heatit Z-Push Wall Controller

Fabricante:Heatit controls

Identificador:Z-Push Wall Controller

Número de Certificação Z-Wave :ZC12-21030196

Plataforma de Hardware :ZGM130

FLiRS:Não

Tipo de Role :Reporting Sleeping Slave

Descrição breve :The Heatit Z-Push Wall Controller is a wireless wall mounted Z-Wave Controller. It has mounting options for 1, 2 or 3 rockers, allowing for easy and practical management of your Z-Wave products. The Heatit Z-Push Wall Controller is supplied with all three sets of rockers in the box.

Descrição :The Heatit Z-Push Wall Controller is a wireless wall mounted Z-Wave Controller. It has mounting options for 1, 2 or 3 rockers, allowing for easy and practical management of your Z-Wave products. The switch can be set up to control scenarios or work in association with other Z-Wave products. Each rocker switch has a dual color LED to indicate button actions. The Heatit Z-Push Wall Controller is supplied with all three sets of rockers in the box. The Wall Controller is coin cell battery powered. The product is intended primarily for residential applications. The Heatit Z-Wall Wall Controller has a fine, matt finish. The switch fits into System 55 frames.

Descarregue o manual a partir de aqui.

Grupo

Nodos máximos

Descrição

1

5

Lifeline (Normally used by the Z-Wave Controller) - Battery notification (sent when the battery runs low). - Device reset locally (sent if the device is reset). - Central scene notification.

2

5

- Basic Set Push on UP will send: ON (0xFF) Holding UP send: Level Increase Start Releasing UP send: Level Increase Stop Push on DOWN send: OFF (0x00) Holding DOWN send: Level Increase Start Releasing DOWN send: Level Increase Stop

3

5

- Basic Set Push on UP will send: ON (0xFF) Holding UP send: Level Increase Start Releasing UP send: Level Increase Stop Push on DOWN send: OFF(0x00) Holding DOWN send: Level Increase Start Releasing DOWN send: Level Increase Stop

4

5

-Basic Set Push on UP will send: ON (0xFF) Holding UP send: Level Increase Start Releasing UP send: Level Increase Stop Push on DOWN send: OFF (0x00) Holding DOWN send: Level Increase Start Releasing DOWN send: Level Increase Stop

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

1

2

Select Button reports

Configure reports sent when pressing buttons: 0 - Send Central Scene Command only 1 - Send Group Association Command only 2 - Send Central Scene and Group Association Commands

2

1

Enable LED

0 disable,1 enable

3

1

3

Active Button rockers

If there is issue where, single button accidently presses other buttons, customer can turn of different button groups. Not needed if plasic design already prevents this. 1 = Buttongroup 3 is used (when sigle rocker is used) 2 = Buttongroup 2 & 4 is used (when double rocker is used) 3 = Buttongroup 2, 3 & 4 is used (when triple rocker is used)

Association Group Information V3

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Battery

COMMAND_CLASS_BATTERY

Central Scene V3

COMMAND_CLASS_CENTRAL_SCENE_V3

Configuration V4

COMMAND_CLASS_CONFIGURATION_V4

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V5

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Indicator V3

COMMAND_CLASS_INDICATOR_V3

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi-Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S2

COMMAND_CLASS_SECURITY_2

Supervision

COMMAND_CLASS_SUPERVISION

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Wake Up V2

COMMAND_CLASS_WAKE_UP_V2

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

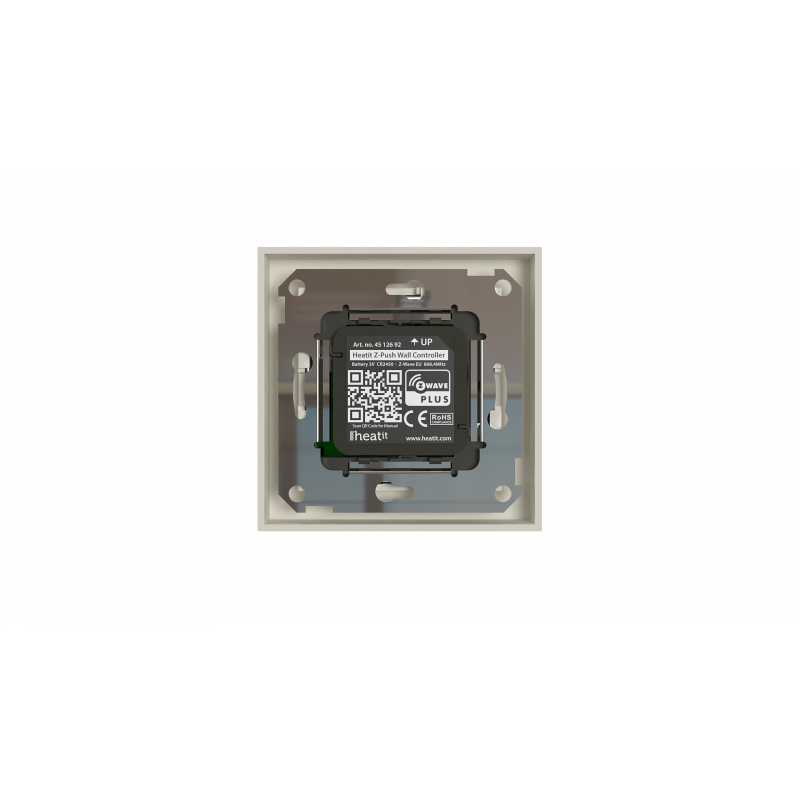

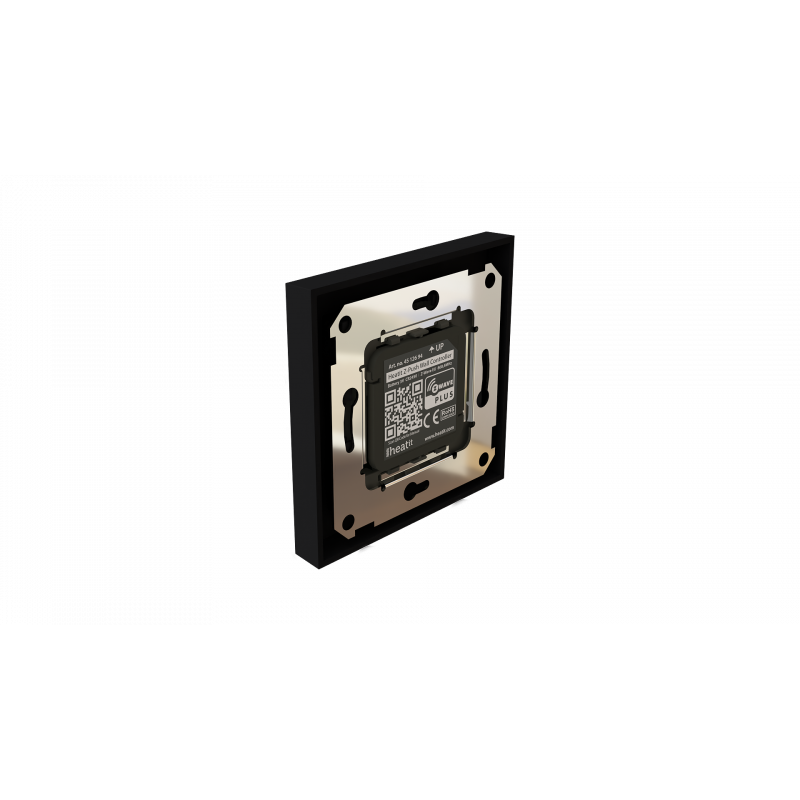

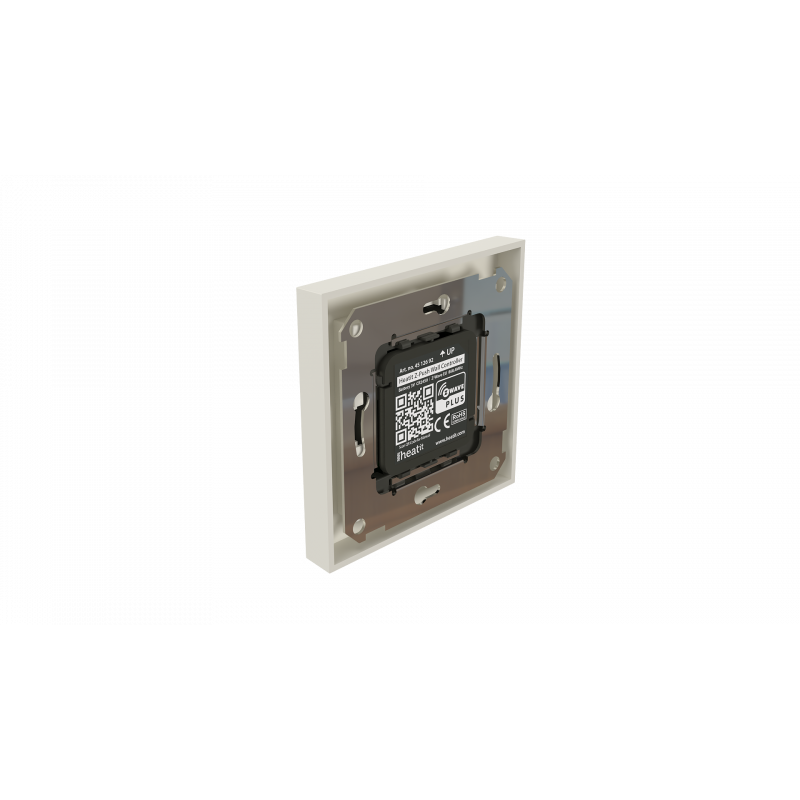

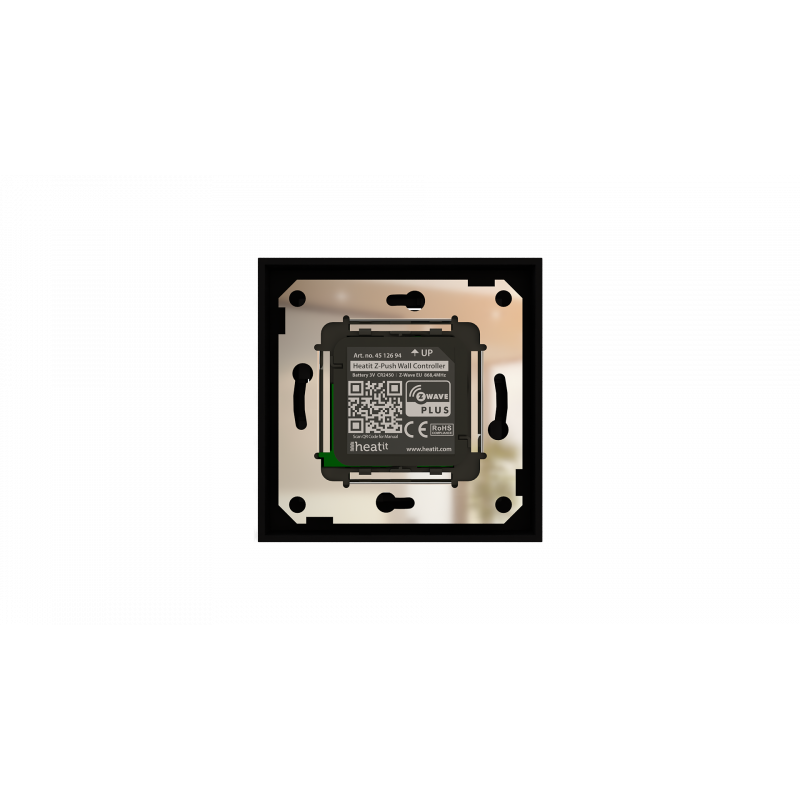

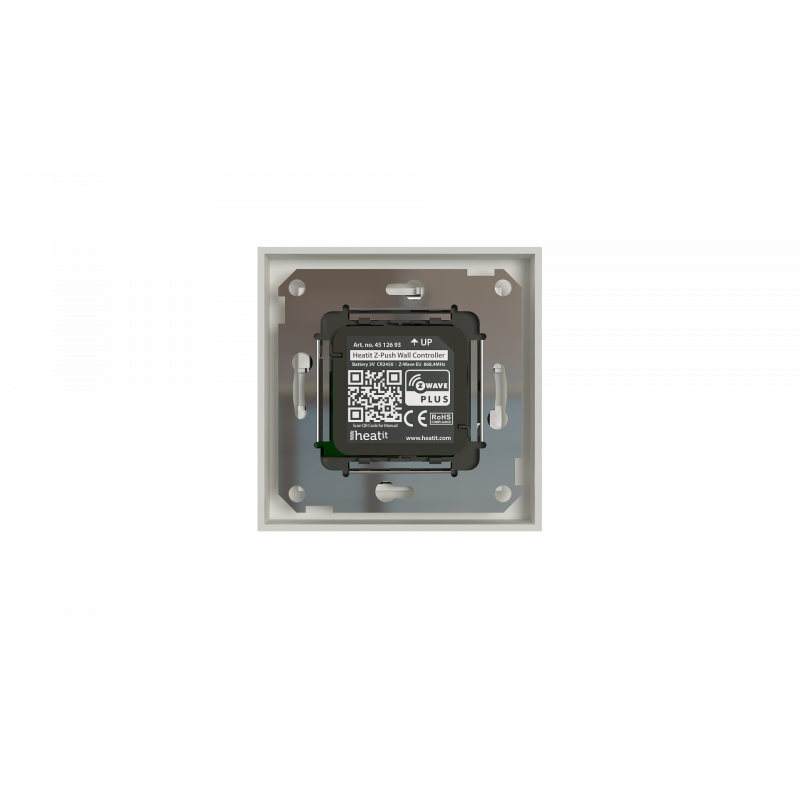

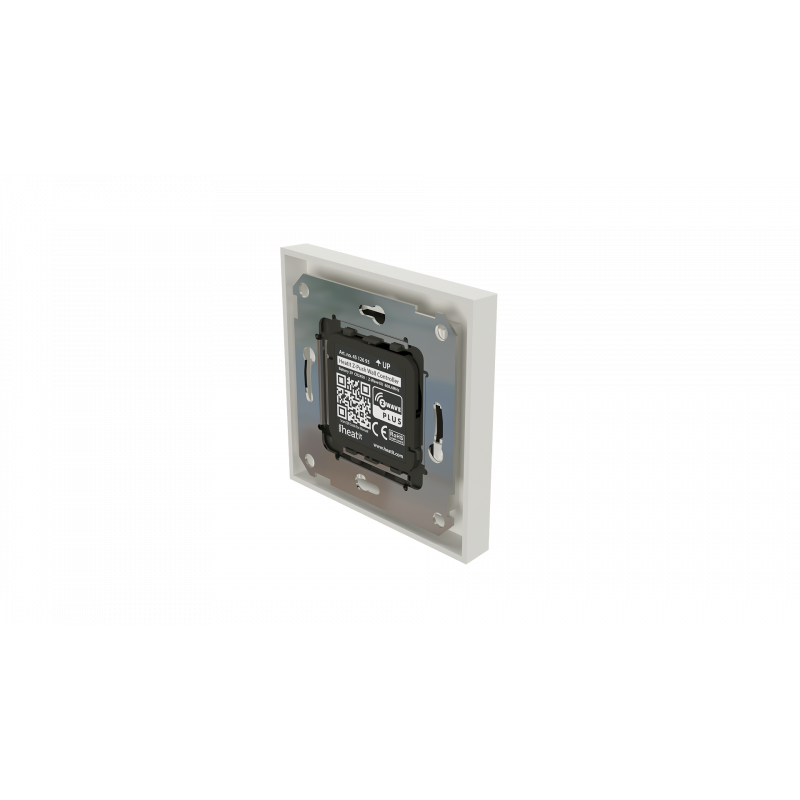

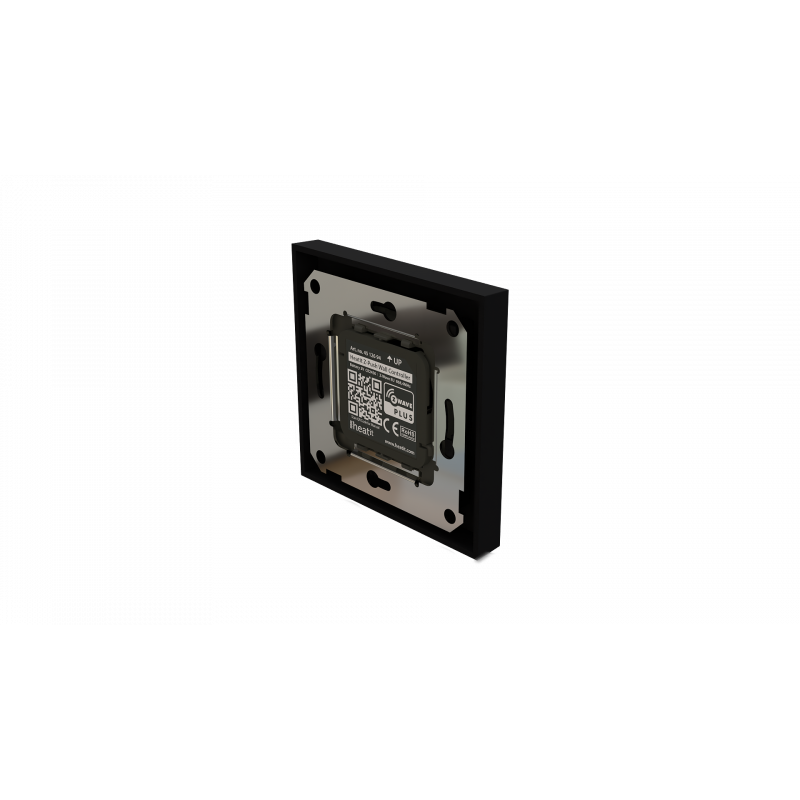

Where to find S2 DSK on product

The QR-Code is needed when including a device using S2 security or SmartStart. The DSK can be found in the QR-Code and is located;

1. On the product.

2. On the Quick Guide manual.

3. On the product box.

Classic Inclusion

The primary controller/gateway has a mode for adding devices. Please refer to your primary controller manual on how to set the primary controller in add mode. The device may only be added to the network if the primary controller is in add mode.

There are two ways to add the device to a Z-Wave network.

Method 1: Standard (Manual)

Initiate the learning mode in the controller.

Press any UP button 6 times within 3 seconds.

When the add mode has started, the LED corresponding to the button you pressed will blink green. The device will indicate ”Success” by emitting a green light for 3 seconds.

Method 2: SmartStart (Automatic)

SmartStart-enabled products may be added to a Z-Wave network by scanning the Z-Wave QR-Code on the product if your primary controller supports SmartStart inclusion. No further action is required and the SmartStart product will be added automatically after being powered on within range of the primary controller.

Classic Exclusion

The primary controller/gateway has a mode for removing devices. Please refer to your primary controller manual on how to set the primary controller in remove mode. The device may only be removed from the network if the primary controller is in remove mode.

When the device is removed from the network, it will NOT revert to factory settings.

Wake-Up Procedure

To manually wake up the device, please press any down button 6 times. The device will light up in green until wake up is no longer active. The default wake up interval in seconds: 604 800 (1 week).

Factory Reset Procedure

To factory reset the device, remove the battery from the device. Press and hold any button on the device and repower the device. The LEDs will start blinking 3 times before lighting up in green. When the green LED is on, you can release the button. The device will issue a Device Reset Locally Notification Command to notify that the device will be reset to default. When preforming a factory reset the device will lose its Node ID from the gateway and reset its Home ID.

Other Special Features

Paragraph 5 Choosing the correct front/assembly

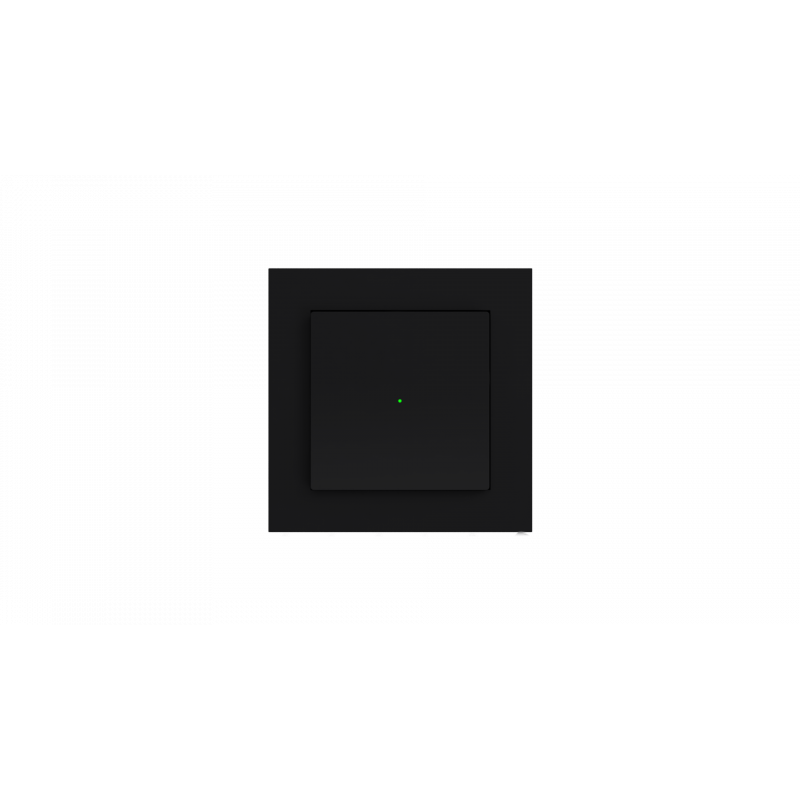

5.1 Single rocker configuation When the device is in single rocker configuration, it uses associations group 3. Change Parameter 3 to 1 when using a single rocker.

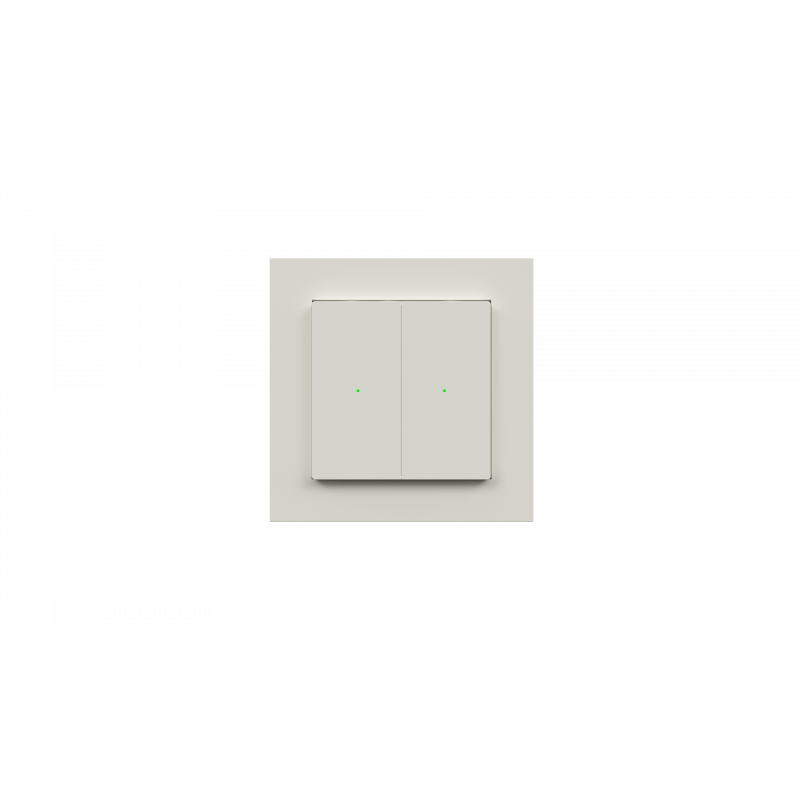

5.2 Dual rocker configuration

When the device is in dual rocker configuration, it uses associations group 2 for the first button and 4 for the second button.

Change Parameter 3 to 2 when using dual rockers.

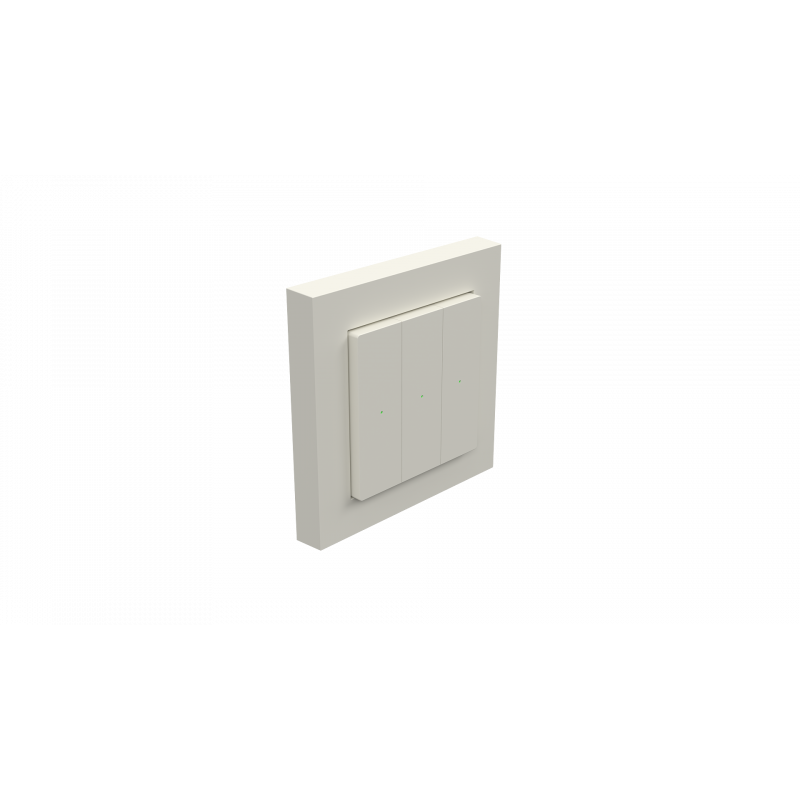

5.3 Triple rocker configuration

When the device is in triple rocker configuration, it uses associations group 2 for the first button, 3 for the

second and 4 for the third button.

Change Parameter 3 to 3 when using dual rockers.

S2 Authenticated

S2_AUTHENTICATED

S2 Unauthenticated

S2_UNAUTHENTICATED

Outdoor Use

Product is suitable for use outdoors.

Battery Type

Enter the type (e.g. AA, CR2032, AAA) of the battery/batteries that the product uses.

IP (Ingress Protection) Rated

Product is suitable for Outdoor use and is waterproof under an IP (Ingress Protection) rating system.

Battery Quantity

Enter the number of batteries of the designated type that the product uses.
