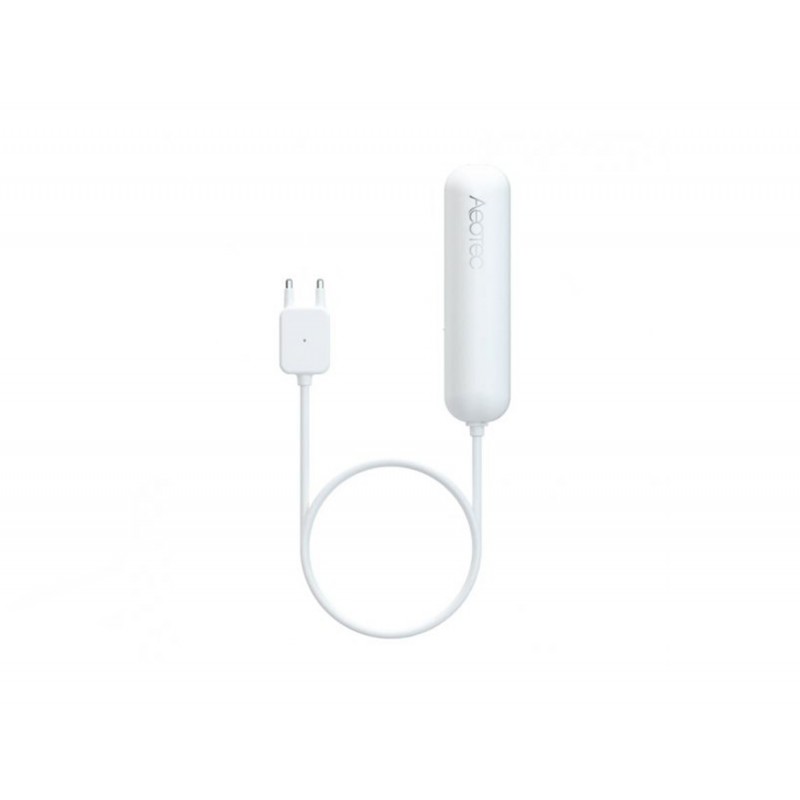

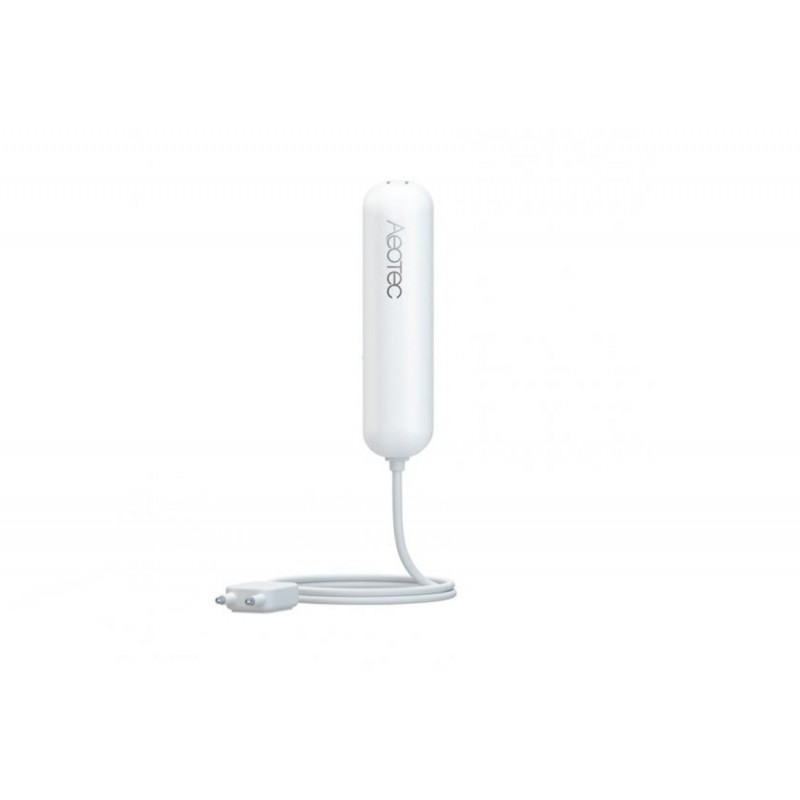

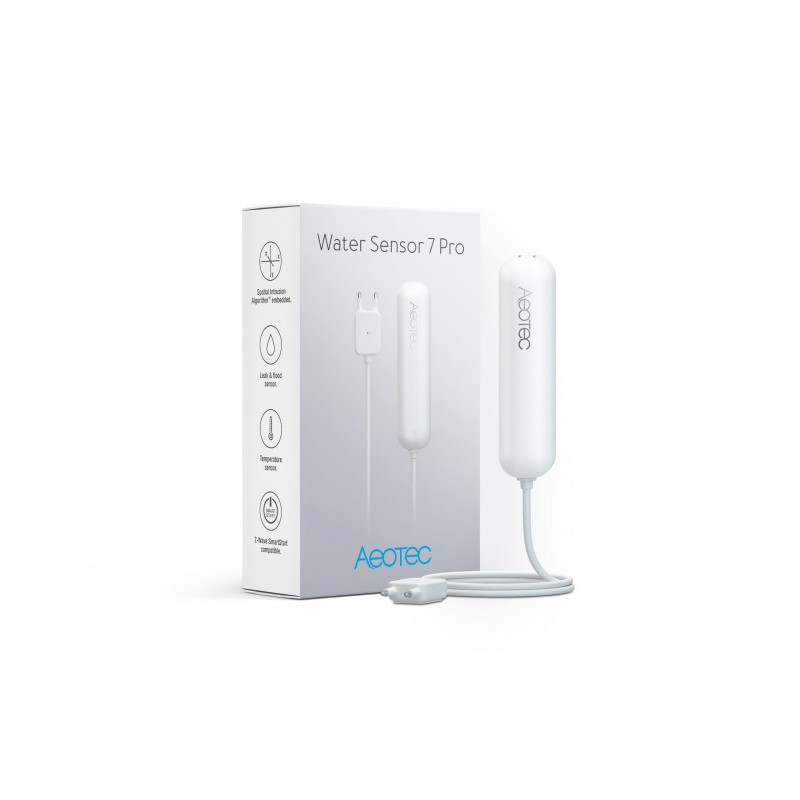

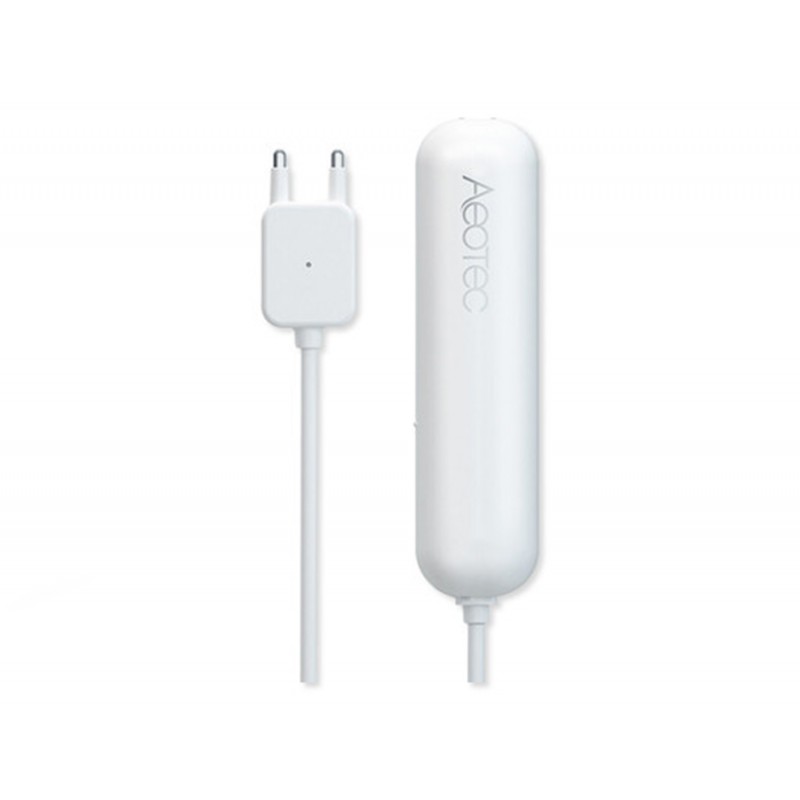

Sensor de água Aeotec 7 Pro Z-Wave + 700 sensor de inundação

Características tecnicas

Tecnologia	Z-Wave Serie 700

Mais Informação

O detector de inundação, Aeotec Water Sensor 7 Pro é um sensor de inundação, um sensor de vazamento e um sensor de segurança em um dispositivo.

Detecção de vazamento. Vazamentos são a base para contas caras e danos quando aparecem onde não deveriam. Ao monitorar mais do que apenas a presença de líquido, o sensor de água 7 Pro da Aeotec faz jus ao seu nome ao monitorar a ausência de água. Quando usado para monitorar tanques ou poços, o Aeotec Water Sensor 7 Pro pode alertá-lo quando os níveis de água estão muito baixos e ativar rotinas de automação.

O Aeotec Water Sensor 7 Pro não monitora apenas vazamentos de água. Uma vez conectado ao seu sistema de automação Z-Wave, o Aeotec Water Sensor 7 Pro pode tomar medidas de proteção para ajudar a limitar a quantidade de danos causados por gotejamentos, vazamentos, quebras ou outros fluxos de água. Por exemplo, em caso de ruptura de um tubo, o dispositivo inteligente pode comandar o fechamento automático das válvulas de água inteligentes, inclusive as instaladas no cano principal.

Gestão de aquecimento. O Aeotec Water Sensor 7 Pro monitora a temperatura ambiente para controlar e gerenciar os sistemas de aquecimento ou resfriamento conectados.

Gestão da qualidade do ar. Além de monitorar a temperatura ambiente, o Aeotec Water Sensor 7 Pro mede a umidade relativa do ambiente. Com monitoramento de umidade em tempo real, o dispositivo inteligente pode ser usado para gerenciar automaticamente a qualidade do ar em uma sala, ativando extratores e umidificadores ou desumidificadores.

Características proeminentes:

Sonda de sensor para detecção de vazamento em áreas de difícil acesso
Controla a temperatura entre -10 ° C e 65 ° C (14 ° F e 149 ° F) com uma variação de ± 1 ° C (± 1,8 ° F)
Ele controla a umidade relativa entre 0% e 80% com uma variação de ± 3%.
Até 5 anos de vida útil da bateria
Compatível com Aeotec Smart Home Hub
Tecnologia Gen7 (série Z-Wave 700)
SmartStart
Z-Wave Plus V2
Fonte de alimentação: bateria de lítio CR123A

Informação alargada da Z-Wave (Inglês)

Nome: Water Sensor 7 Pro

Fabricante:Aeotec

Identificador:ZWA019-C

Número de Certificação Z-Wave :ZC12-20060068

Plataforma de Hardware :ZGM130

FLiRS:Não

Tipo de Role :Reporting Sleeping Slave

Descrição breve :The Aeotec Water Sensor 7 Pro detects any liquid, which is spreaded by a leakage or other damage. It also measures the humidity and temperature of its environment.

Descrição :The Water Sensor 7 pro brings more safety into your home. With its flexible sensor probe and the sensitive sensor point it detects the presence and absence of water at any given location. Furthermore the Watersensor 7 pro is enabled to accurately measure the temperature and humidity of its environment, so you are always informed about your room climate. Thanks to the latest Z-Wave 700 series technology, the Water Sensor 7 is distinguished with and increased range, S2 Security, OTA FW update and SmartStart.

Descarregue o manual a partir de aqui.

Grupo

Nodos máximos

Descrição

1

5

Lifeline association to gateways

2

5

Control devices when water leakage is detected

3

5

Sends out alarm message when water leakage is detected

4

5

Sends out alarm messages when tamper is tripped

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

10

2

0

Time Delay of "Off" command frame

Off command is sent after a delay defined in this parameter.

11

2

0

Delay of Tamper Alarm Cancellation

Time a tamper alarm is delayed.

12

1

Reporting Tamper Alarm Cancellation

This parameter defines if the alarm cancellation event is reported.

16

1

20

Minimum Temperature change to report

This value defines the minimum change of temperature to cause an unsolicited report of humidity to the central controller using Lifeline. If the value is set to 0, there will be no reports sent to the controller, when the temperature changes. However, periodic reports, managed by configuration parameter 18, may still be active.

17

1

5

Minimum humidity change to report

This value defines the minimum change of humidity to cause an unsolicited report of humidity to the central controller using Lifeline. If the value is set to 0, there will be no reports sent to the controller, when the humidity changes. However, periodic reports, managed by configuration parameter 18, may still be active.

18

2

43200

Temperature and Humidity Periodic Reports

This parameter defines the time interval to send an unsolicited report. If the value is set to 0, there will be no periodic reports sent to the controller. However, reports on temperature/humidity changes, managed by configuration parameters 16 and 17, may still be active.

255

4

0

Reset Parameter

This parameter helps reset configuration parameters and the device to factory defaults 1 - 1431655764 (0x55555554) - Reset all Parameter settings to their default settings. 1431655765 - Completely factory reset sensor and send device reset locally notification.

3

1

7

Visual LED Indications

This parameter defines when LEDs will indicate events. Disabling all indications may extend battery life. Value 0 means - No Indications.

4

1

0

Range Test after double click

Allows to enable the activation of a Z-Wave range test with double clicking the tamper switch.

5

1

0

2nd Association Group Trigger

This parameter defines the status of the magnet switch that causes sending a BASIC command to all devices of Association Group 2.

6

1

2

Command Sent to Devices of Association Group 2

This parameter defines which commands is sent to 2nd Association Group

7

1

255

BASIC command "On event" value

This is the BASIC command value sent in case of "On" event.

8

1

0

BASIC command "Off event" value

This is the BASIC command value sent in case of "Off" event.

9

2

0

Time Delay of "On" command frame

On command is sent after a delay defined in this parameter.

Association Group Information V3

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Battery

COMMAND_CLASS_BATTERY

Configuration V4

COMMAND_CLASS_CONFIGURATION_V4

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V5

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Indicator V3

COMMAND_CLASS_INDICATOR_V3

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi-Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Notification V8

COMMAND_CLASS_NOTIFICATION_V8

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S2

COMMAND_CLASS_SECURITY_2

Sensor Multilevel V11

COMMAND_CLASS_SENSOR_MULTILEVEL_V11

Supervision

COMMAND_CLASS_SUPERVISION

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Wake Up V2

COMMAND_CLASS_WAKE_UP_V2

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Where to find S2 DSK on product

Scan the QR code inside the battery compartment of the device and your controller will add the device automatically when powered up.

Classic Inclusion

Inclusion

1. Open the housing.

2. Remove the battery protection.

3. Press the tamper on the side of the appliance three times quickly.

Classic Exclusion

Exclusion

1. Open the housing.

2. Press the tamper on the side of the appliance three times quickly.

Wake-Up Procedure

The Node Information Frame (NIF) is the business card of a Z-Wave device. It contains information about the device type and the technical capabilities. The inclusion and exclusion of the device is confirmed by sending out a Node Information Frame. Beside this it may be needed for certain network operations to send out a Node Information Frame. To issue a NIF execute the following action: Press the tamper once

Factory Reset Procedure

Reset to factory default

This device also allows to be reset without any involvement of a Z-Wave controller. This procedure should only be used when the primary controller is inoperable.

Once Cover is removed and the tamper switch is tripped, push the tamper for 5 seconds until the RED LED blinks once. Then release tamper and push it again for 5 seconds while the RED LED is blinking until the GREEN LED blinks once.

Other Special Features

- The product is able to perform a range test to the gateway by setting parameter 4 as described in the manual

S2 Authenticated

S2_AUTHENTICATED

S2 Unauthenticated

S2_UNAUTHENTICATED
