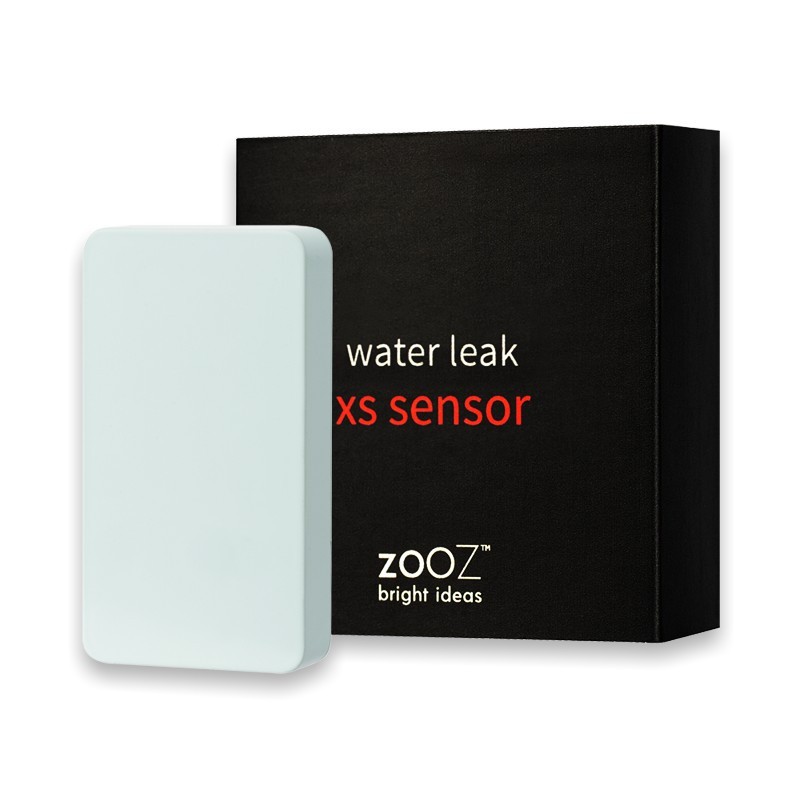

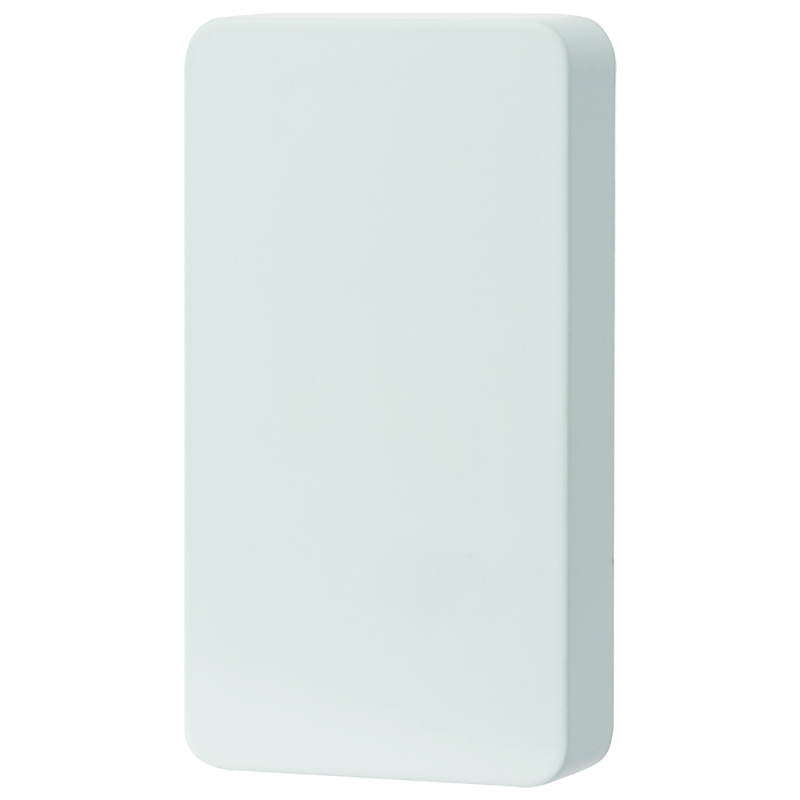

ZOOZ Water leak XS sensor

Características tecnicas

Tecnologia Domótica	Z-Wave Serie 700

Informação alargada da Z-Wave (Inglês)

Nome: Water Sensor

Fabricante:Zooz

Identificador:ZSE42

Número de Certificação Z-Wave :ZC12-21080294

Plataforma de Hardware :ZGM130

FLiRS:Não

Tipo de Role :Reporting Sleeping Slave

Descrição breve :The 700 Series Z-Wave Plus™ XS Water Leak Sensor was designed to detect and report leaks to your Z-Wave™ hub reliably and quickly so you can prevent potential water damage.

Descrição :PRODUCT HIGHLIGHTS: - Quick and reliable water leak alerts sent to your Z-Wave™ hub - NEW 700 series chip for faster communication and more battery life than ever - Extra small to fit anywhere - Powered by a long-lasting single coin battery - The latest S2 security and SmartStart for secure set-up - Supports OTA firmware updates PRODUCT SPECS: - Model Number: ZSE42 - Power: 1 x CR2032 battery - Operating Temperature: 32° – 104° F - Dimensions: 1.9” x 1” x 0.3” - Range: Up to 130 feet line of sight - Installation and Use: Indoor or outdoor under eve (can’t be exposed to direct rainfall or sun, a little splash is OK)

Descarregue o manual a partir de aqui.

Grupo

Nodos máximos

Descrição

1

3

Lifeline. Notification sent back to the hub when a leak is detected and when it's cleared.

2

5

This device will send a Basic Set command to Group 2 whenever it detects water. The value of the basic set command sent to Group 2 can be adjusted in the advanced settings to customize the sensor’s behavior.

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

1

LED Indicator Mode

Choose whether you'd like the LED indicator to light up when water is detected.

2

4

0

Alarm Clear Delay

Set the delay for a "dry" report to be sent to the hub when water is no longer detected.

3

1

10

Battery Reporting Threshold

Set the battery reporting threshold.

4

1

20

Low Battery Alert

Set the battery level for a low battery alert to be sent to the hub.

5

1

Group 2 ON/OFF Basic Set Commands

Choose when you'd like the sensor to send on/off basic set commands to Group 2 once the water detection status changes.

Association Group Information V3

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association V3

COMMAND_CLASS_ASSOCIATION_V3

Battery

COMMAND_CLASS_BATTERY

Configuration V4

COMMAND_CLASS_CONFIGURATION_V4

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V5

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Indicator V3

COMMAND_CLASS_INDICATOR_V3

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi-Channel Association V4

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V4

Notification V8

COMMAND_CLASS_NOTIFICATION_V8

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S2

COMMAND_CLASS_SECURITY_2

Sensor Binary V2

COMMAND_CLASS_SENSOR_BINARY_V2

Supervision

COMMAND_CLASS_SUPERVISION

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Wake Up V2

COMMAND_CLASS_WAKE_UP_V2

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

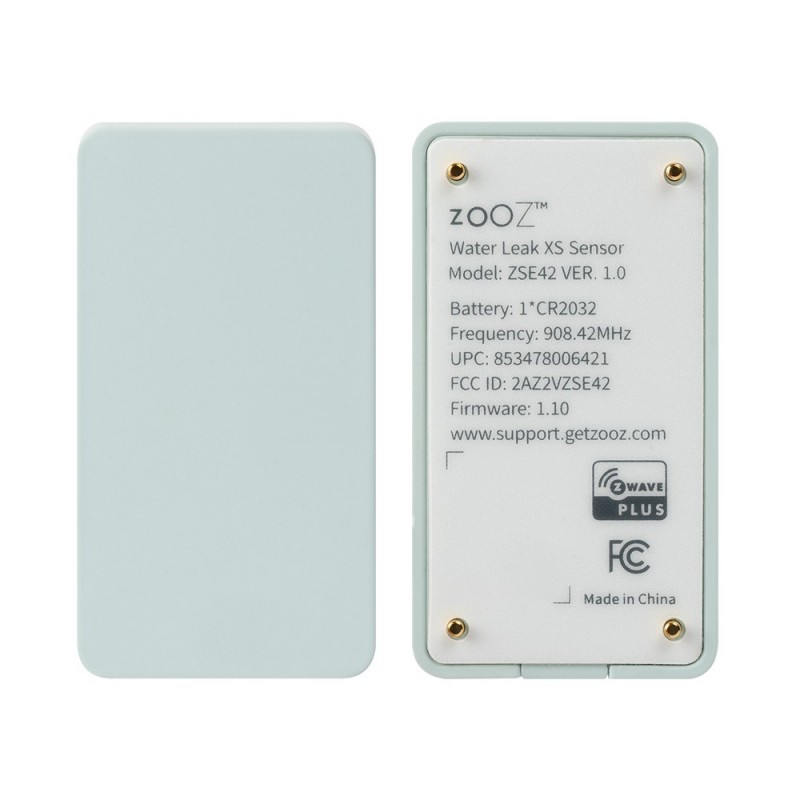

Where to find S2 DSK on product

Initiate inclusion (pairing) in the app (or web interface). Not sure how? ask@getzooz.com

If you’re using an S2 hub, it will ask you to enter the DSK PIN or scan the QR code printed on the back cover sticker of the sensor to complete SmartStart inclusion.

Classic Inclusion

Initiate inclusion (pairing) in the app (or web interface). Not sure how? ask@getzooz.com

While the hub is looking for new devices, click the Z-Wave button 3 times as quickly as possible. The LED indicator will start flashing to confirm inclusion mode and turn off once inclusion is completed.

Classic Exclusion

1. Bring the sensor within direct range of your Z-Wave hub.

2. Put the Z-Wave hub into exclusion mode (not sure how to do that? ask@getzooz.com).

3. Click the Z-Wave button 3 times as quickly as possible.

4. Your hub will confirm exclusion and the sensor will disappear from your controller's device list.

Factory Reset Procedure

When your network’s primary controller is missing or otherwise inoperable, you may need to reset the device to factory settings manually. In order to complete the process, make sure the sensor is powered, then click the Z-Wave button twice and hold it the third time for 10 seconds. The LED indicator will blink continuously. Immediately after, click the Z-Wave button twice more to finalize the reset. The LED indicator will flash 3 times to confirm a successful reset.

Wake-Up Procedure

The sensor’s wake-up interval is set to 12 hours by default to save battery life. Use the Wake Up Command Class to adjust the interval. Click the Z-Wave button 4 times quickly to wake the sensor up manually. The LED indicator will flash twice to confirm the device is awake. During wake-up, the sensor turns the Z-Wave radio on for one minute to receive communication from the hub. Long wake-up interval will not affect how often the sensor reports to your hub so we recommend leaving the default setting to conserve battery.

S2 Authenticated

S2_AUTHENTICATED

S2 Unauthenticated

S2_UNAUTHENTICATED

Battery Quantity

Enter the number of batteries of the designated type that the product uses.

Battery Type

Enter the type (e.g. AA, CR2032, AAA) of the battery/batteries that the product uses.

Color

If the product is only available in one color, pick the color from the list.

Firmware Updatable

Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.
