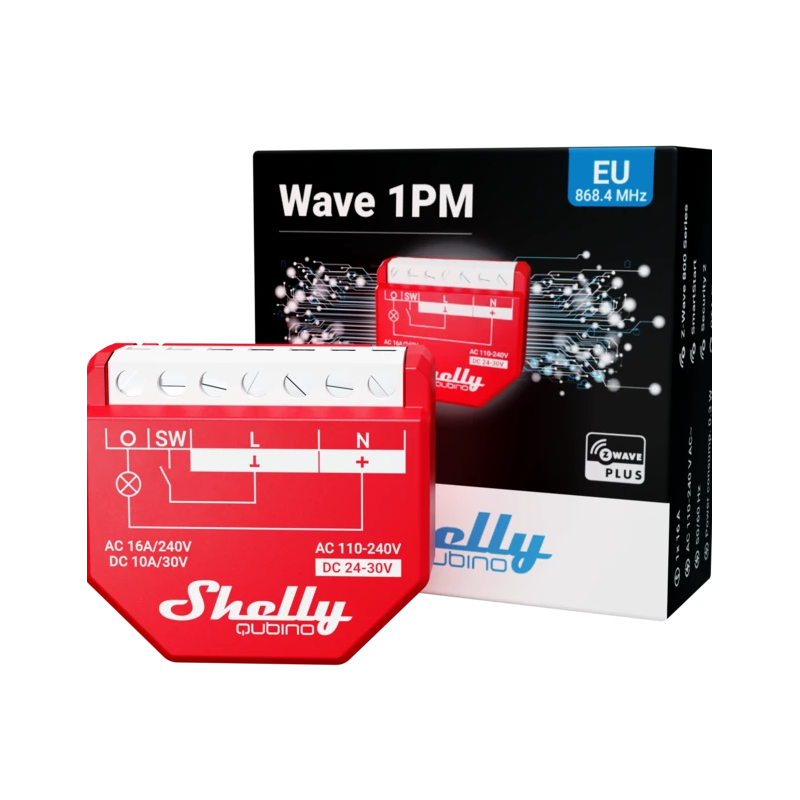

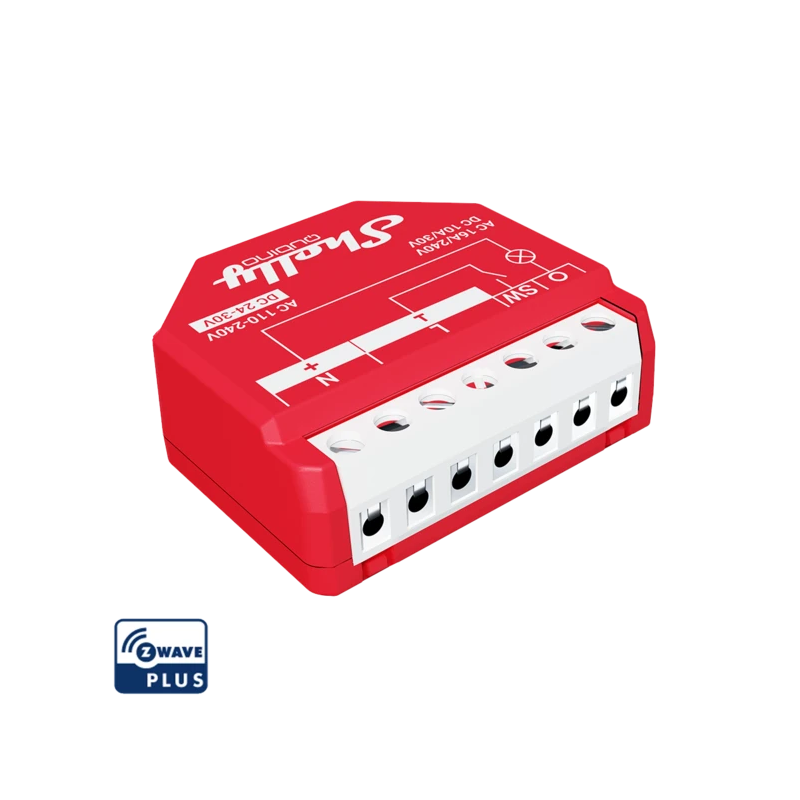

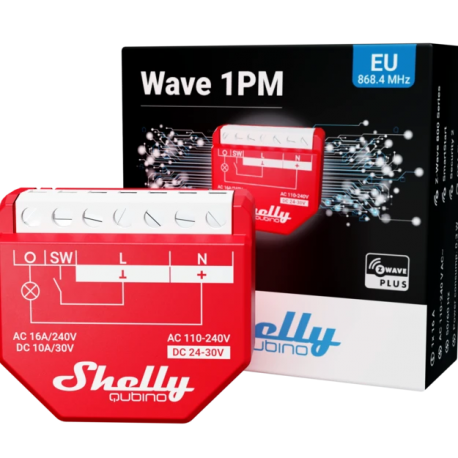

Shelly Qubino Wave 1PM - Micromódulo Relé 16A com medição de consumo

Características tecnicas

Tecnologia	Z-Wave Serie 800

Mais Informação

Micromódulo switch inteligente Z-Wave, 1 canal 16 A, com medição de potência.

Monitore e meça o consumo elétrico de uma ampla variedade de eletrodomésticos e equipamentos de escritório (luzes, linhas de energia, sistemas de segurança, aquecedores, esquentadores, etc.) de qualquer lugar.

Medição de potência
Consumo de energia extremamente baixo: 0,3 W.
Banda de frequência Z-Wave: 868,4 MHz (países CEPT)
Tecnologia mais recente: Chip Z-Wave Série 800
Configuração automática com SmartStart
Segurança 2 autenticada para o mais alto nível de segurança
Suporta atualizações de firmware sem fio

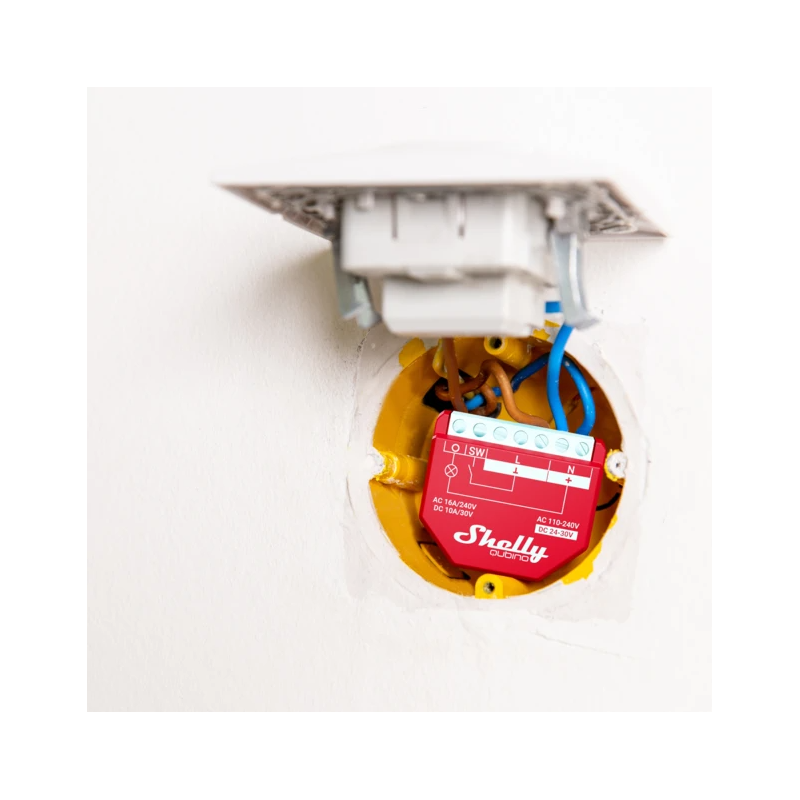

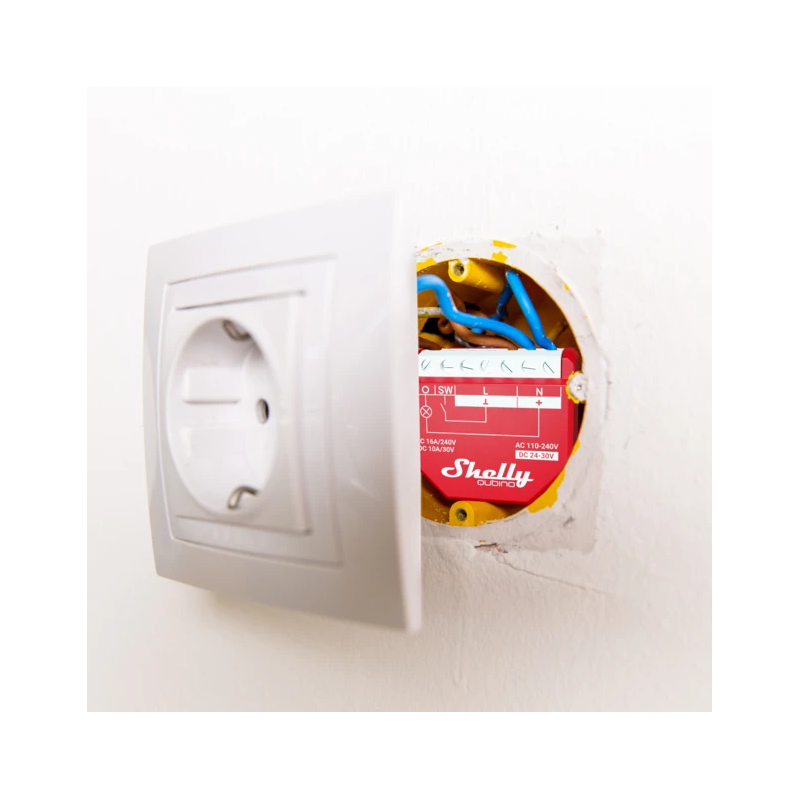

Fácil instalação na maioria das caixas elétricas e interruptores padrão
Funciona com gateways Z-Wave certificados e mais de 4.000 dispositivos Z-Wave
*Um gateway (smart hub) não está incluído. Um gateway (hub inteligente) é necessário para configuração do dispositivo.

Wave 1PM é compatível com versões anteriores da tecnologia Z-Wave e foi projetado para caber atrás de qualquer switch ou tomada, tornando-o inteligente instantaneamente. Depois de instalado, inclua-o em sua rede Z-Wave (é necessário gateway Z-Wave) e controle os aparelhos conectados de qualquer lugar usando seu smartphone ou tablet. Os dispositivos Shelly Qubino funcionam com mais de 4.000 dispositivos e gateways certificados pela Z-Wave Alliance.

Funciona com Z-Wave

Conecte o Wave 1PM à sua rede Z-Wave e controle-o remotamente. É compatível com todos os gateways Z-Wave certificados.

Associações

Estabeleça comunicação direta entre dispositivos em sua rede Z-Wave local e defina ações personalizadas sem a necessidade de um hub.

Controle do consumo elétrico

Wave 1PM fornece monitoramento preciso do consumo de energia.

Ampla faixa de tensão

Use uma ampla gama de níveis de tensão de saída.

Agendamentos personalizados

Crie horários personalizados alinhados com sua rotina diária ou sincronize com o nascer/pôr do sol para gerenciar sua iluminação (é necessário gateway).

Cenas inteligentes

Configure cenas personalizadas combinando Wave 1PM com qualquer outro dispositivo Z-wave (é necessário gateway).

Infinitas aplicações de uso

Controle seu sistema de piscina remotamente

Automatize o sistema da sua piscina e desfrute de água fresca e limpa durante todo o verão. Shelly Wave 1PM permite programar e monitorar facilmente o funcionamento dos equipamentos da piscina. Estabeleça rotinas para acionar automaticamente a bomba da piscina e o sistema de filtragem, otimizando a circulação da água e mantendo sua clareza. Programe as luzes da sua piscina para acenderem automaticamente à medida que a luz do dia diminui e mergulhe em uma experiência mais eficiente e agradável.

Automatize e controle seus eletrodomésticos de qualquer lugar

Automatize e controle remotamente facilmente uma ampla variedade de eletrodomésticos, como aquecedores de água, aparelhos de aquecimento, luzes e muito mais. Imagine acordar em uma casa aconchegante em uma manhã fria, enquanto seus aparelhos de aquecimento ligam automaticamente antes mesmo de você sair da cama. Você também pode ligar o aquecedor de água remotamente para obter água quente após um longo dia. Aproveite a comodidade, eficiência energética e controle personalizado que Shelly Wave 1PM traz para o seu dia a dia.

Controle o seu consumo de energia e reduza os custos de eletricidade

Com a medição precisa de energia integrada do Wave 1PM, você pode rastrear e controlar o consumo de seus aparelhos elétricos, simplificando a economia em suas contas de eletricidade. Otimize o consumo de energia sem sacrificar o conforto.

Maximize o conforto da sua casa

com cenas inteligentes
Combine o Wave 1PM com outros dispositivos e crie cenas personalizadas com base no tempo, iluminação ou vários gatilhos. Apague as luzes, dispositivos multimédia, tranque as portas e ajuste o aquecimento, tudo com um simples comando de voz ou um toque no seu smartphone.

Especificações

Alimentando	110-240 V CA / 24 30 V CC
Consumo de energia	<0,3 W
Medição de potência (W)	Garfos
Tensão máxima de comutação AC	240V
Corrente máxima de comutação AC	16A
Tensão máxima de comutação DC	30V
Corrente máxima de comutação DC	10A
Proteção contra superaquecimento	Garfos
Proteção de sobrecarga	Garfos
Distância	Até 40 m em ambientes internos (131 pés) (depende das condições locais)
Repetidor Z-Wave:	Garfos
CPU	Onda Z" S800
Bandas de frequência Z-Wave":	868,4 MHz; 865,2 MHz; 869,0 MHz; 921,4 MHz; 908,4 MHz; 916 MHz; 919,8 MHz; 922,5 MHz; 919,7-921,7-923,7 MHz; 868,1 MHz; 920,9 MHz
Potência máxima de radiofrequência transmitida em banda(s) de frequência	<25mW

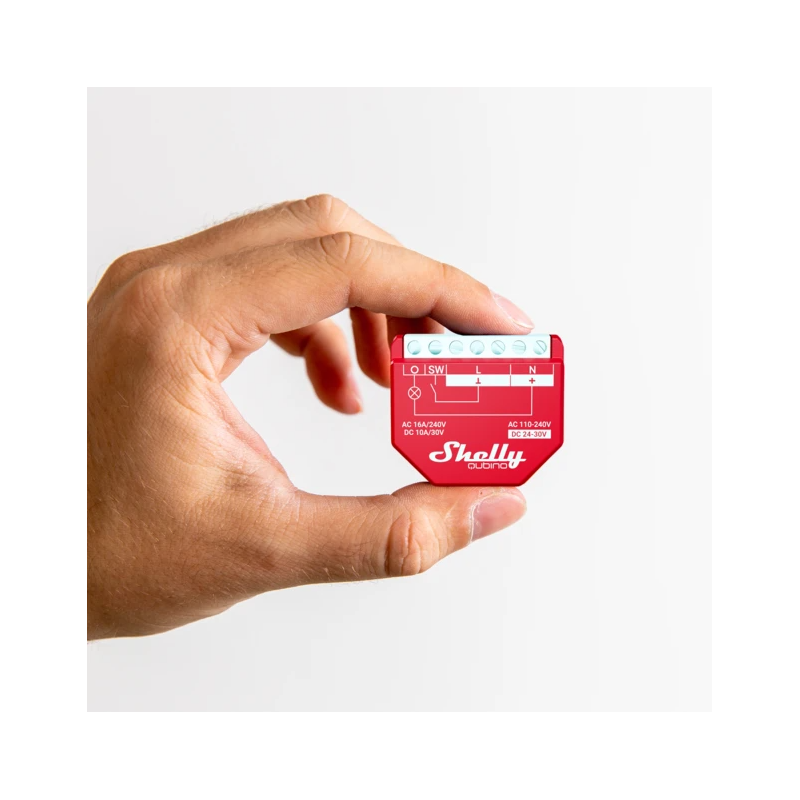

Tamanho (A x L x P)	37x42x16 ±0,5 mm / 1,46x1,65x0,63 ±0,02 pol.
Peso	27g/0,95 onças.
Montagem	console de parede
Terminais de parafuso máx. torque	0,4 Nm/3,5 lb.in.
Driver de seção transversal	0,5 a 1,5 mm² / 20 a 16 AWG
Comprimento despojado do driver	5 a 6 mm/0,20 a 0,24 pol.
material de concha	Plástico
Cor	Grade
Temperatura ambiente	-20°C a 40°C / -5°F a 105°F
Umidade	30% a 70% UR
Máx. altitude	2.000 m/6.562 pés.

Informação alargada da Z-Wave (Inglês)

Nome: Wave 1PM

Fabricante:Shelly Qubino

Identificador:QNSW-001P16EU

Número de Certificação Z-Wave :ZC14-23100356

Plataforma de Hardware :EFR32ZG23A

FLiRS:Não

Tipo de Role :Always On End Node

Descrição breve :The Device is a single product that enables the control of the on/off function for one electrical device such as bulb, ceiling fan, IR heater. It measures the power consumption of the connected device.

Descrição :The Device is a single product that enables the control of the on/off function for one electrical device such as bulb, ceiling fan, IR heater. It measures the power consumption of the connected device.

Grupo

Nodos máximos

Descrição

1

9

2

9

3

9

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

1

2

SW1 Switch type

0 push, 1 toggle state, 2 toggle change

120

1

0

Factory reset

17

1

0

Restore state of O1 after power failure

0 restore, 1 no restore

19

2

0

Turn O1 OFF Automatically with timer

0 - 32535, 0 disabled

20

2

0

Turn O1 ON Automatically with timer

0 - 32535, 0 disabled

201

4

2147483647

Serial Number 1

202

4

2147483647

Serial Number 2

203

4

2147483647

Serial Number 3

23

1

0

O1 NO/NC

0 NO, 1 NC

25

1

0

Set timer units to Seconds or Milliseconds for O1

0 seconds, 1 millisecods

36

1

50

O1 Power report on change - percenatge

1-100 percentage, 0 disabled

39

1

30

O1 min reporting time

1-120 seconds, 0 disabled

91

4

0

Alarm conf. - Water

0 no action 1 open relay 2 close relay

92

4

0

Alarm conf. - Smoke

0 no action 1 open relay 2 close relay

93

4

0

Alarm conf. - CO

0 no action 1 open relay 2 close relay

94

4

0

Alarm conf. - Heat

0 no action 1 open relay 2 close relay

Association Group Information (AGI) V3

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic V2

COMMAND_CLASS_BASIC_V2

Binary Switch V2

COMMAND_CLASS_SWITCH_BINARY_V2

Configuration V4

COMMAND_CLASS_CONFIGURATION_V4

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta Data V5

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Indicator V3

COMMAND_CLASS_INDICATOR_V3

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Meter V6

COMMAND_CLASS_METER_V6

Multi Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Notification V8

COMMAND_CLASS_NOTIFICATION_V8

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security 0

COMMAND_CLASS_SECURITY

Security 2

COMMAND_CLASS_SECURITY_2

Supervision

COMMAND_CLASS_SUPERVISION

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Where to find S2 DSK on product

When adding the Device to a Z-Wave network with a gateway supporting Security 2 (S2), the PIN Code of the Z-Wave Device Specific Key (DSK) is required. You can find it on the label on the side of the Device and a copy is inserted in the packaging, which must not be lost. Do not remove the Z-Wave DSK label from the Device. As a backup measure, use the label in the packaging.

The first five digits of the key are highlighted or underlined to help the user identify the PIN Code part of the DSK text. The DSK is additionally represented with a QR Code as shown on the image.

Classic Inclusion

6.1 Adding the Device to a Z-Wave™ network (inclusion)

Note! All Device outputs (O, O1, O2, etc. - depending on the Device type) will turn the load 1s on/1s off /1s on/1s off if the Device is successfully added to/removed from a Z-Wave™ network.

6.1.1 SmartStart adding (inclusion)

SmartStart enabled products can be added into a Z-Wave™ network by scanning the Z-Wave™ QR Code present on the Device with a gateway providing SmartStart inclusion. No further action is required, and the SmartStart device will be added automatically within 10 minutes of being switched on in the network vicinity.

1. With the gateway application scan the QR code on the Device label and add the Security 2 (S2) Device Specific Key (DSK) to the provisioning list in the gateway.

2. Connect the Device to a power supply.

3. Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave™ network.

4. Adding will be initiated automatically within a few seconds after connecting the Device to a power supply, and the Device will be added to a Z-Wave™ network automatically.

5. The blue LED will be blinking in Mode 2 during the adding process.

6. The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave™ network.

6.1.2 Adding (inclusion) with a switch/push-button

1. Connect the Device to a power supply.

2. Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave™ network.

3. Enable add/remove mode on the gateway.

4. Toggle the switch/push-button connected to any of the SW terminals (SW, SW1, SW2, etc.) 3 times within 3 seconds (this procedure puts the Device in Learn mode*). The Device must receive on/off signal 3 times, which means pressing the momentary switch 3 times, or toggling the switch on and off 3 times.

5. The blue LED will be blinking in Mode 2 during the adding process.

6. The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave™ network.

*Learn mode - a state that allows the Device to receive network information from the gateway.

6.1.3 Adding (inclusion) with the S button

1. Connect the Device to a power supply.

2. Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave™ network.

3. Enable add/remove mode on the gateway.

4. To enter the Setting mode, quickly press and hold the S button on the Device until the LED turns solid blue.

5. Quickly release and then press and hold (> 2s) the S button on the Device until the blue LED starts blinking in Mode 3. Releasing the S button will start the Learn mode.

6. The blue LED will be blinking in Mode 2 during the adding process.

7. The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave™ network.

Note! In Setting mode, the Device has a timeout of 10s before entering again into Normal mode.

Classic Exclusion

Removing the Device from a Z-Wave™ network (exclusion)

Note! The Device will be removed from your Z-wave™ network, but any custom configuration parameters will not be erased.

Note! All Device outputs (O, O1, O2, etc. - depending on the Device type) will turn the load 1s on/1s off /1s on/1s off if the Device is successfully added to/removed from a Z-Wave™ network.

6.2.1 Removing (exclusion) with a switch/push-button

1. Connect the Device to a power supply.

2. Check if the green LED is blinking in Mode 1. If so, the Device is added to a Z-Wave™ network.

3. Enable add/remove mode on the gateway.

4. Toggle the switch/push-button connected to any of the SW terminals (SW, SW1, SW2,…) 3 times within 3 seconds (this procedure puts the Device in Learn mode). The Device must receive on/off signal 3 times, which means pressing the momentary switch 3 times, or toggling the switch on and off 3 times.

5. The blue LED will be blinking in Mode 2 during the removing process.

6. The blue LED will be blinking in Mode 1 if the Device is successfully removed from a Z-Wave™ network.

6.2.2 Removing (exclusion) with the S button

1. Connect the Device to a power supply.

2. Check if the green LED is blinking in Mode 1. If so, the Device is added to a Z-Wave™ network.

3. Enable add/remove mode on the gateway.

4. To enter the Setting mode, quickly press and hold the S button on the Device until the LED turns solid blue.

5. Quickly release and then press and hold (> 2s) the S button on the Device until the blue LED starts blinking in Mode 3. Releasing the S button will start the Learn mode.

6. The blue LED will be blinking in Mode 2 during the removing process.

7. The blue LED will be blinking in Mode 1 if the Device is successfully removed from a Z-Wave™ network.

Note! In Setting mode, the Device has a timeout of 10s before entering again into Normal mode.

Factory Reset Procedure

6.3 Factory reset

6.3.1 Factory reset general

After Factory reset, all custom parameters and stored values (kWh, associations, routings, etc.) will return to their default state. HOME ID and NODE ID assigned to the Device will be deleted. Use this reset procedure only when the gateway is missing or otherwise inoperable.

6.3.2 Factory reset with a switch/push-button

Note! Factory reset with a switch/push-button is only possible within the first minute after the Device is connected to a power supply.

1. Connect the Device to a power supply.

2. Toggle the switch/push-button connected to any of the SW terminals (SW, SW1, SW2,…) 5 times within 3 seconds. The Device must receive on/off signal 5 times, which means pressing the push-button 5 times, or toggling the switch on and off 5 times.

3. During factory reset, the LED will turn solid green for about 1s, then the blue and red LED will start blinking in Mode 3 for approx. 2s.

4. The blue LED will be blinking in Mode 1 if the Factory reset is successful.

6.3.3 Factory reset with the S button

Note! Factory reset with the S button is possible anytime.

1. To enter the Setting mode, quickly press and hold the S button on the Device until the LED turns solid blue.

2. Press the S button multiple times until the LED turns solid red.

3. Press and hold (> 2s) S button on the Device until the red LED starts blinking in Mode 3. Releasing the S button will start the factory reset.

4. During factory reset, the LED will turn solid green for about 1s, then the blue and red LED will start blinking in Mode 3 for approx. 2s.

5. The blue LED will be blinking in Mode 1 if the Factory reset is successful.

6.3.4 Remote factory reset with parameter with the gateway

Factory reset can be done remotely with the settings in Parameter No. 120.

S2 Authenticated

S2_AUTHENTICATED

S2 Unauthenticated

S2_UNAUTHENTICATED

Color

If the product is only available in one color, pick the color from the list.

Electric Load Type

Select the electric load type(s) supported by the device.

Firmware Updatable

Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.

Neutral Wire Required

For electric in-wall/wired switches, indicate whether a neutral wire is required for installation.
