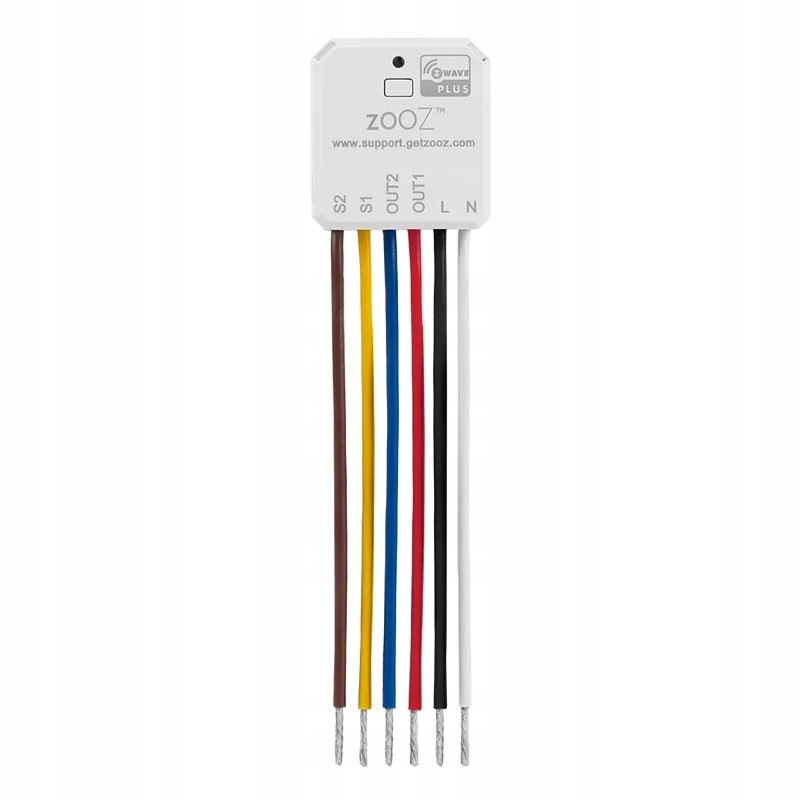

Zooz Double Relay - Relé doble Z-Wave micromódulo

Características tecnicas

Tecnologia Domótica	Z-Wave Serie 800

Informação alargada da Z-Wave (Inglês)

Nome: Double Relay

Fabricante:ZOOZ

Identificador:ZEN52 LR

Número de Certificação Z-Wave :ZC14-23020193

Plataforma de Hardware :ZGM130S037HGN2 / ZGM130S037HGN1

FLiRS:Não

Tipo de Role :Always On Slave

Descrição breve :Use the Double Relay to control 2 120 V lights or electrical devices under 5 A individually via Z-Wave™ or from your wall switches.

Descrição :Use the Double Relay to control 2 120 V lights or electrical devices under 5 A individually via Z-Wave™ or from your wall switches.

Grupo

Nodos máximos

Descrição

1

5

2

5

3

5

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

14

1

2

Restores state after power failure, relay 1

15

1

2

Restores state after power failure, relay 2

16

1

Enable or Disable Scene

17

1

Enable or Disable Output control relay 1

18

1

Enable or Disable Output control relay 2

2

1

Led indicator load status

20

1

2

External switch type input 1

21

1

2

External switch type input 2

22

1

10

Impulse time for par 20=3

23

1

10

Impulse time for par 21=3

24

1

Association reports

25

1

0

Relay 1 type behavior

26

1

0

Relay 2 type behavior

3

2

0

Auto turn-off timer Relay 1

4

2

0

Auto turn-on timer Relay 1

5

2

0

Auto turn-off timer Relay 2

6

2

0

Auto turn-on timer Relay 2

7

1

Timer for relay 1 seconds or minutes

8

1

Timer for relay 2 seconds or minutes

Application Status

COMMAND_CLASS_APPLICATION_STATUS

Association Group Information (AGI) V3

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic V2

COMMAND_CLASS_BASIC_V2

Binary Switch V2

COMMAND_CLASS_SWITCH_BINARY_V2

Central Scene V3

COMMAND_CLASS_CENTRAL_SCENE_V3

Configuration V4

COMMAND_CLASS_CONFIGURATION_V4

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta Data V5

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5

Indicator V3

COMMAND_CLASS_INDICATOR_V3

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi Channel V4

COMMAND_CLASS_MULTI_CHANNEL_V4

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security 2

COMMAND_CLASS_SECURITY_2

Supervision

COMMAND_CLASS_SUPERVISION

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

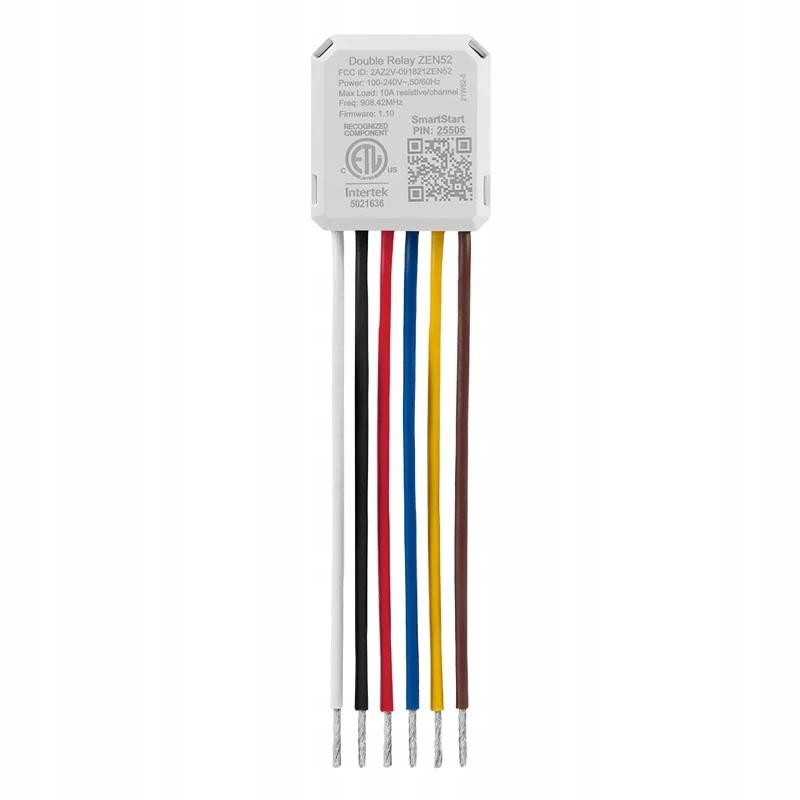

Where to find S2 DSK on product

The SmartStart QRCode is located on the back of the relay, next to the Z-Wave™ Plus logo.

Classic Inclusion

1. Add Device to your hub. Initiate inclusion (pairing) in the app (or web interface). Not sure how? Scan one of the QR codes below for step-by-step instructions or get in touch: www.support.getzooz.com

2. Finalize inclusion at the relay. TAP THE Z-WAVE BUTTON 3 TIMES QUICKLY

The LED indicator will blink green to signal communication and turn green for 2 seconds if inclusion is successful or turn red for 2 seconds if the pairing attempt fails.

Factory Reset Procedure

If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the relay, click the Z-Wave button twice and hold it for 15 seconds.

The LED indicator will flash during the process and turn red for 3 seconds to confirm a successful reset.

S2 Authenticated

S2_AUTHENTICATED

S2 Unauthenticated

S2_UNAUTHENTICATED

Firmware Updatable

Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.

Loads Controlled

The number of different loads controllable by the product if it supports more than one.

Neutral Wire Required

For electric in-wall/wired switches, indicate whether a neutral wire is required for installation.

Z-Wave Scene Type

Indicates which of the two types of Z-Wave scene command classes are supported. Scenes or Central Scene
