Reduced price! Philio PAN04-1B Z-Wave Plus 2x1,5 Kw - Micromódulo interruptor de 2 relés y control de consumo

View larger

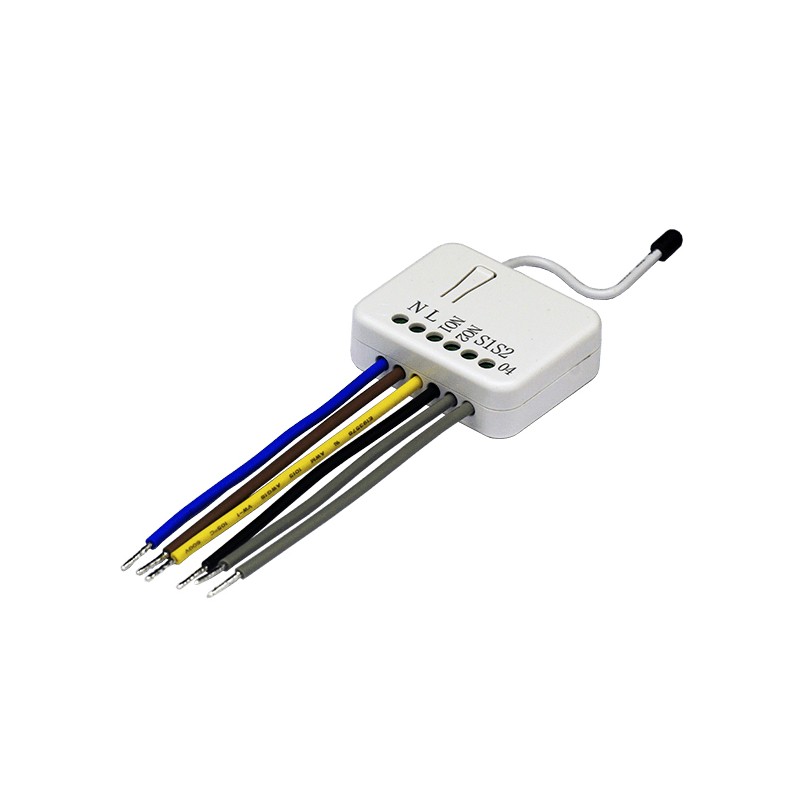

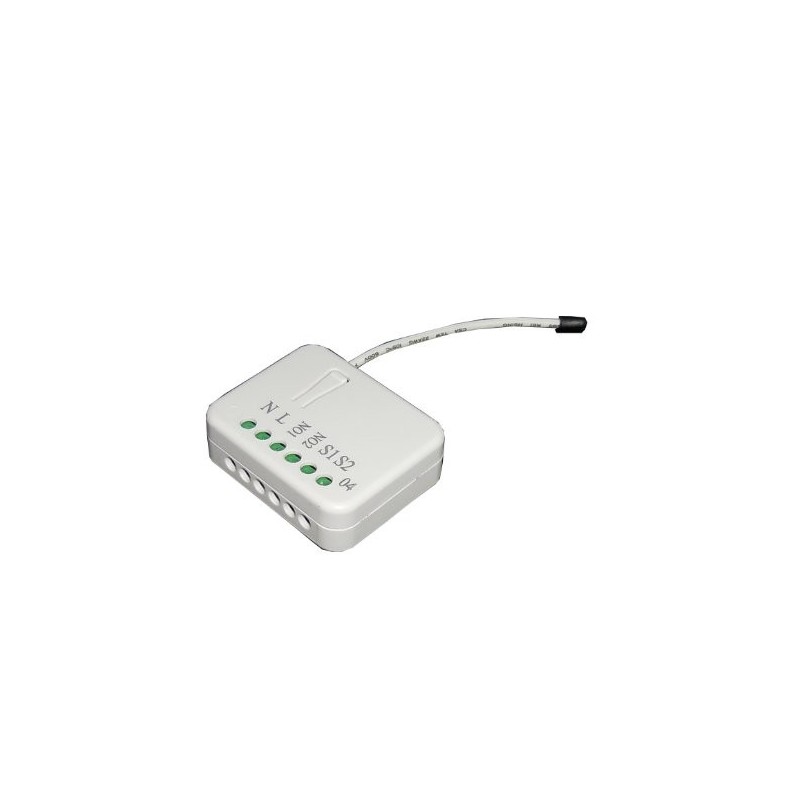

Philio PAN04-1B Z-Wave Plus 2x1,5 Kw - Chave micro-módulo com 2 relés e controle de consumo

Referência: PHIEPAN04-1B

Estado: Novo

É um micro-módulo de switch Z-Wave Plus comutador duplo com medição de energia Z-Wave

Mais detalhes

Em estoque

Retirar este produto da minha lista de favoritos.
Adicionar este produto à minha lista de favoritos.
Print

Características tecnicas

Tecnologia	Z-Wave Plus
Recurso	Medição de Consumo

Mais Informação

O switch de micromódulo duplo Philio PAN04-1B permite que você controle duas luzes ou dois dispositivos remotos com o protocolo Z-Wave + enquanto mantém seus switches existentes. Portanto, você poderá operar as cargas conectadas por meio de interruptores existentes, de um controlador Z-Wave ou diretamente deste botão no micromódulo.
Com sua tecnologia de calibração, o PAN04-1B pode ser usado para ligar e desligar vários tipos de lâmpadas, por exemplo, incandescentes, fluorescentes e LED.
Por outro lado, este micromódulo é capaz de transmitir o consumo instantâneo de potência (W) e cumulativo (KWh) do equipamento que nele se carrega. Ele também tem proteção contra sobrecarga.
Um controlador de automação residencial Z-Wave (dongle de controle remoto ...) é necessário para integrar este módulo em sua rede se você já tiver uma rede existente.
As funções do módulo Z-Wave incluem repetidor sem fio com outros módulos para garantir a cobertura Z-Wave completa de sua casa.

Observe que este módulo requer NEUTRO para operar.

CARACTERISTICAS:
Solicite duas luzes / acessórios remotamente
Instala por trás de interruptores existentes
Use a tecla basculante ou de pulso
Adota o mais recente chip Z-Wave + 500Series para suportar operações multicanal e maior taxa de dados
Alcance otimizado da antena
Função de inclusão automática
On off
Medir o consumo instantâneo e acumulado
Proteção de sobrecarga
relatório de status automático após controle de carga manual via interruptor
relatório de consumo automático com variação de 5%
Consumo de energia muito baixo, em conformidade com a Diretiva Europeia 2009/125 / CE no. 1275/2008
Pequeno, discreto e estético
Facilidade de uso e instalação

CARACTERÍSTICAS TECNICAS :
Tipo de módulo: o receptor Z-Wave +
Fonte de alimentação: 90 ~ 240VAC ou 24-60V DC ± 10%
Consumo de energia: 0,48 W
Fiação: 3 filhos, neutro necessário
Carga máxima: 1500W por saída
Frequência: 868,42 MHz
Distância de transmissão: 30m
Dimensões: mm 47,5x39x15,6
Peso: 30g
Temperatura de operação: 0-40 ° C
Certificação Z-Wave: ZC08-13040018

Nota: equivalente a Zipato PAN04-1B e Airlive SA102

Informação alargada da Z-Wave (Inglês)

Nome: In Wall Dual relay(1 way) switch module

Fabricante:Philio

Identificador:PAN04-1A

Número de Certificação Z-Wave :ZC10-14110001

Plataforma de Hardware :SD3502

FLiRS:Não

Tipo de Role :Always On Slave

Descrição breve :This in-wall dual relay switch module is a transceiver which is a Z- Wave Plus™ enabled device and is fully compatible with any Z-Wave™ enabled network.

Descrição : This in-wall dual relay switch module is a transceiver which is a Z-Wave Plus™ enabled device and is fully compatible with any Z-Wave™ enabled network. Mini size design let the module can easily hide itself into the wall box and that will be good for the house decoration. There are many kind of application by using the module to switch AC power On and Off, one main application is the light control. The new smart relay calibration technology can reduce the inrush current caused by the load and let the module work perfectly with many kind of light like incandescent, fluorescent and LED light. This in-wall switch module is able to detect Instant power wattage and overload current (7.5A) of connected light or appliances. When detecting overload state, the Module will be disabled and its On/Off button will be lockout of which LED will flash quickly. However, disconnect and re-connect the Module will reset its overload condition to normal status.

Descarregue o manual a partir de aqui.

Grupo

Nodos máximos

Descrição

For group 1, the Switch will report (1) ON/OFF status of Relay1 and Relay2 (2) Instant Power Consumption (Watt) of Relay1 and Relay2 (3) Accumulated Power Consumption (KWh) of Relay1 and Relay2 to Group1 node.

For group 2, the Switch will report (1) ON/OFF status of Relay1 (2) Instant Power Consumption (Watt) of Relay1 (3) Accumulated Power Consumption (KWh) of Relay1 to Group2 node.

For group 3, the Switch will report (1) ON/OFF status of Relay2 (2) Instant Power Consumption (Watt) of Relay2 (3) Accumulated Power Consumption (KWh) of Relay2 to Group3 node.

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

720

Watt Meter Report Period

If the setting is configured for 1hour (set value =720), the PAN04 will report its instant power consumption every 1 hour to the node of correspond Group. The maximum interval to report its instant power consumption is 45 hours (5s*32767/3600=45hr).

Existence of Endpoint3

Multi-Channel Command is a good way to control relay1 and relay2 of PAN04 individually. The endpoint3 of PAN04 is related to both relay1 and relay2. In some condition it becomes redundant in Multi-Channel Command Class. When the Existence of Endpoint3 is set as 2, the endpoint3 will be disabled. The default value is 1. Endpoint1 and Endpoint2 are fixed, only Endpoint3 is dynamic.

KWH Meter Report Period

If the setting is configured for 1hour (set value =6), the PAN04 will report its Accumulated Power Consumption (KW/h) every 1 hour to the node of correspond Group. The maximum interval to report its Accumulated Power Consumption (KW/h) is 227.55 days (10min*32767/1440=227.55 days).

Selected Relay

If Controller not using Multi_Channel command class to access the relay of PAN04, you may configure the select value to react the Basic Command Class、Binary Switch Command Class or Meter Command Class V3.

Edge or Pulse mode or Edge-Toggl e mode

Edge mode: this mode is suitable for the bi stable wall switch that has indicator point on the switch, and the same position correspond to same state of relay1 and relay2. if the PAN04 relay change the state because of receiving Z-Wave RF command, it may need two times of change (switch on to off or switch off to on) to let relay back to the correspond state. Pulse mode: this mode is suitable for the toggle type wall switch to swap the state of Relay1 or Relay2. Edge-Toggle mode: this mode is suitable for the normal bi-stable switch, every time when change the state of the wall switch will also swap the state of Relay1 or Relay2.

750

Threshold of current for Load Caution

This is a warning when the current of load over the preset threshold value, if the setting value is 750, when the load current of Relay1 or Relay2 over this value, PAN04 will send current meter report to the node of correspond Group, the Range of the setting value is from 10 to 750, and the default value is 750.

10000

Threshold of KWh for Load Caution

This is a warning when the KWh of load over the preset threshold value, If the setting value is 10000, when the Accumulated Power Consumption of Relay1 or Relay2 over this value, PAN04 will send KWh Meter Report command to the node of correspond Group, minimum value is 1KWh and default value is 10000 kWh.

Restore switch state mode

Whenever the AC power return from lost, PAN04 will restore the switch state which could be SWITCH OFF、LAST SWITCH STATE、SWITCH ON. The default setting is LAST SWITCH STATE.

Auto off timer

Whenever PAN11 switches to on, the auto off timer begin to count down. After the timer decrease to zero, it will switch off automatically. However if Auto off timer is set as 0, the auto off function will be disabled. The default setting is 0.

RF off command mode

Whenever a switch off command, BASIC_SET 、 BINARY_SWITCH_SET 、 SWITCH_ALL_OFF, is received, it could be interpreted as 4 kinds of commands. 1. Switch Off ： It switches to OFF state. The default setting is Switch Off. 2. Ignore ： The switch off command will be ignored. 3. Switch Toggle ： It switches to the inverse of current state. 4. Switch On ： It switches to ON state.

Inclusion

1. Put your Z-Wave controller into inclusion mode by following the instructions provided by the controller manufacturer.
2. Pressing INCLUDE_BUTTON three times within 2 seconds will enter inclusion mode.

Exclusion

1. Put your Z-Wave controller into exclusion mode by following the instructions provided by the controller manufacturer.
2. Pressing INCLUDE_BUTTON three times within 2 seconds will enter exclusion mode.

Factory Reset

This procedure should only be used in the event the primary controller is lost or otherwise inoperable.

1. Pressing INCLUDE_BUTTON three times within 2 seconds will enter inclusion mode.
2. Within 1 second, press INCLUDE_BUTTON again for 5 seconds.
3. IDs are excluded.
