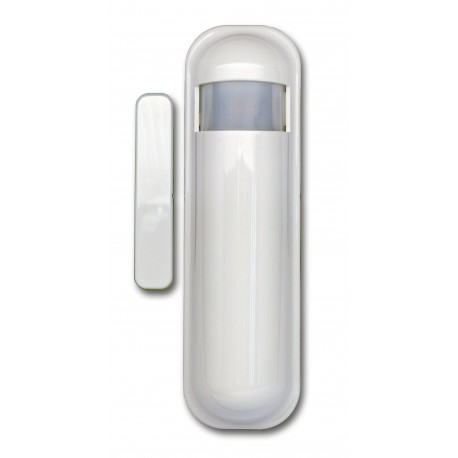

Multisensor Z-Wave 3 em 1 Philio PST02-1A (abertura, brilho e temperatura)

Características tecnicas

Tecnologia Domótica	Z-Wave Plus

Mais Informação

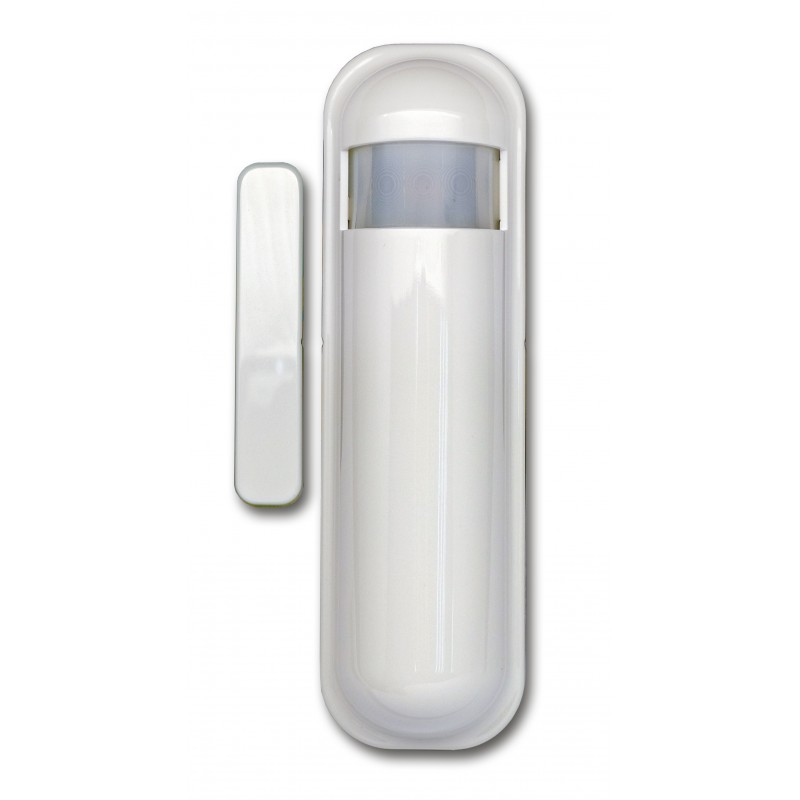

Com o sensor 3 em 1 PST02-1C do Philio, você não só pode monitorar o status de suas portas e janelas, como o dispositivo está equipado com 3 sensores diferentes no total:

Sensor de porta e janela
Sensor de temperatura
Sensor de luz

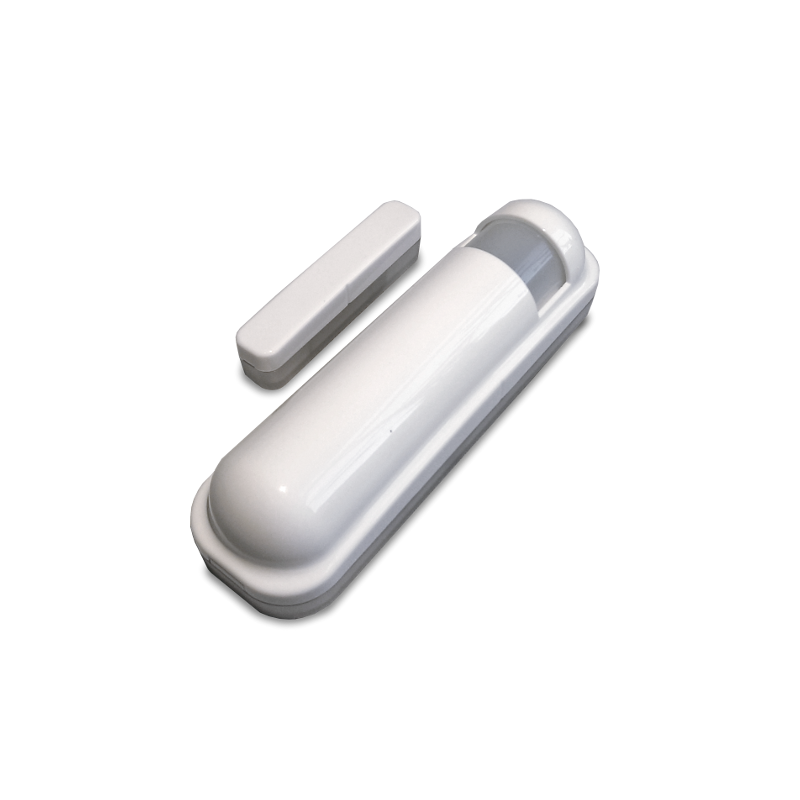

O sensor consiste em duas partes: um detector e um ímã. O ímã deve ser montado na parte de abertura da porta / janela e o detector na moldura fixa. A abertura da porta / janela eliminará o campo magnético, ativará o detector e gerará uma condição de alarme (se o sistema estiver armado).

O sensor também pode ser usado para controle automático de luz, uma cena possível é obter o nível de lux de iluminação dos sensores de luz embutidos e enviar um sinal para o centro de controle Z-Wave para ligar a luz assim que a porta aberto quando o quarto está escuro. Sempre que o sensor de porta / janela dispara uma mudança de estado, ele também envia o valor de temperatura e brilho.

Caracteristicas:

O sensor de contato monitora o status da porta e janela (aberta / fechada)
Medir e relatar valores adicionais de temperatura e brilho
Proteção contra adulteração
Pode ser montado em qualquer superfície plana na posição vertical ou horizontal
Atualização de firmware "Over The Air" (OTA)
Fonte de alimentação: Bateria (1x CR123A)
Tecnologia sem fio: Z-Wave Plus
Dimensões: 28 x 95 x 35 mm

Informação alargada da Z-Wave (Inglês)

Nome: Slim Multisensor

Fabricante:Philio

Identificador:PST02-1C

Número de Certificação Z-Wave :ZC10-14080018

Plataforma de Hardware :SD3502

FLiRS:Não

Tipo de Role :Reporting Sleeping Slave

Descrição breve :Slim Multisensor 3 in 1 (Door/Window, Temperature and Illumination)

Descrição :The slim multisensor PST02 has door/window, temperature and illumination, 3 sensors function in one,based on Z-Wave technology.

Descarregue o manual a partir de aqui.

Grupo

Nodos máximos

Descrição

1

8

Z-Wave Plus Lifeline

2

8

Using the "Basic Set" for lighting control.

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

10

1

12

Auto Report Battery Time

The interval time for auto report the battery level. 0 means turn off auto report battery. The default value is 12. The tick time can setting by the configuration No.20.

11

1

12

Auto Report Door/Window State Time

The interval time for auto report the door/window state. 0 means turn off auto report door/window state. The default value is 12. The tick time can setting by the configuration No.20.

12

1

12

Auto Report Illumination Time

The interval time for auto report the illumination. 0 means turn off auto report illumination. The default value is 12. The tick time can setting by the configuration No.20.

13

1

12

Auto Report Temperature Time

The interval time for auto report the temperature. 0 means turn off auto report temperature. The default value is 12. The tick time can setting by the configuration No.20.

2

1

255

Basic Set Level

Setting the BASIC command value to turn on the light. The 0xFF(-1) means turn on the light. For dimmer equipment 1 to 100 means the light strength. 0 means turn off the light.

20

1

30

Auto Report Tick Interval

The interval time for auto report each tick. Setting this configuration will effect configuration No.10, No.11, No.12 and No.13. Caution: Setting to 0 means turn off all auto report function.

21

1

Temperature Differential Report

The temperature differential to report. 0 means turn off this function. The unit is Fahrenheit. Enable this function the device will detect every minutes. And when the temperature is over 140 degree Fahrenheit, it will continue report. Enable this functionality will cause some issue please see the detail in the “Temperature Report” section.

22

1

0

Illumination Differential Report

The illumination differential to report. 0 means turn off this function. The unit is percentage. Enable this function the device will detect every minutes. Enable this functionality will cause some issue please see the detail in the “Illumination Report” section.

4

1

99

Light Threshold

Setting the illumination threshold to turn on the light. When the event triggered and the environment illumination lower then the threshold, the device will turn on the light. 0 means turn off illumination detected function. And never turn on the light. 1 means darkest. 99 means brightest. 100 means turn off illumination detected function. And always turn on the light. Notice: In none test mode, only the value in 1 to 99 will enable the illumination detected function and update the illumination value.

5

1

0

Operation Mode

Operation mode. Using bit to control. Bit0: Reserve. Bit1: 1 means test mode, 0 means normal mode. Notice: This bit only effect by the DIP Switch setting to “customer mode”, otherwise it decides by DIP Switch setting to Test or Normal Mode. Bit2: Disable the door/window function. (1:Disable, 0:Enable) Bit3: Setting the temperature scale. 0: Fahrenheit, 1:Celsius Bit4: Disable the illumination report after event triggered. (1:Disable, 0:Enable) Bit5: Disable the temperature report after event triggered. (1:Disable, 0:Enable) Bit6: Reserve. Bit7: Disable the back key release into test mode. (1:Disable, 0:Enable) Notice: The reserve bit is allowed any value, but no effect.

6

1

4

Mult-Sensor Function Switch

Multisensor function switch. Using bit to control. Bit0: Disable magnetic integrate illumination to turn ON the lighting nodes in the association group 2. (1:Disable, 0:Enable) Bit1: Reserve. Bit2: Reserve. Bit3: Reserve. Bit4: Disable delay 5 seconds to turn off the light, when door/window closed. (1:Disable, 0:Enable) Bit5: Disable auto turn off the light, after door/window opened to turn on the light. (1:Disable, 0:Enable) Notice: If bit2 is zero, this setting is useless. Notice: If the configuration No.9 is zero, this setting is useless. Bit6: Reserve. Bit7: Reserve. Notice: The reserve bit is allowed any value, but no effect.

7

1

4

Customer Function

Customer function switch, using bit control. Bit0: Reserve. Bit1: Reserve. Bit2: Reserve. Bit3: Disable send out BASIC OFF after door closed. (1:Disable, 0:Enable) Bit4: Notification Type, 0: Using Notification Report. 1: Using Sensor Binary Report. Bit5: Disable Multi CC in auto report. (1:Disable, 0:Enable) Bit6: Disable to report battery state when the device triggered. (1:Disable, 0:Enable) Bit7: Reserve. Notice: The reserve bit is allowed any value, but no effect.

9

1

4

Turn Off Light Time

After turn on the lighting, setting the delay time to turn off the lighting when the PIR motion is not detected. 8 seconds per tick, default tick is 4 (32 seconds). 0 means never send turn off light command.

Basic

COMMAND_CLASS_BASIC

Inclusion

There are two tamper keys in the device, one is in the back side, another is in the front side. Both of them can add, remove, reset or association from Z-Wave network.
To add into a Z-Wave network:
1. Have Z-Wave Controller entered inclusion mode.
2. Pressing tamper key three times within 1.5 seconds to enter the inclusion mode.
3. After add successful, the device will wake to receive the setting command from Z-Wave Controller about 20 seconds.

Exclusion

There are two tamper keys in the device, one is in the back side, another is in the front side. Both of them can add, remove, reset or association from Z-Wave network.
To remove the device from a Z-Wave network:
1. Have Z-Wave Controller entered exclusion mode.
2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode.
Node ID has been excluded.

Device Wake-Up

There are two tamper keys in the device, one is in the back side, another is in the front side. Both of them can add, remove, reset or association from Z-Wave network.
Press any key once, the device will awake 10 seconds.

Factory Reset

There are two tamper keys in the device, one is in the back side, another is in the front side. Both of them can add, remove, reset or association from Z-Wave network.
To reset the device:
Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable.
1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4th pressed, and the LED will light ON.
2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once.
3. IDs are excluded and all settings will reset to factory default.
