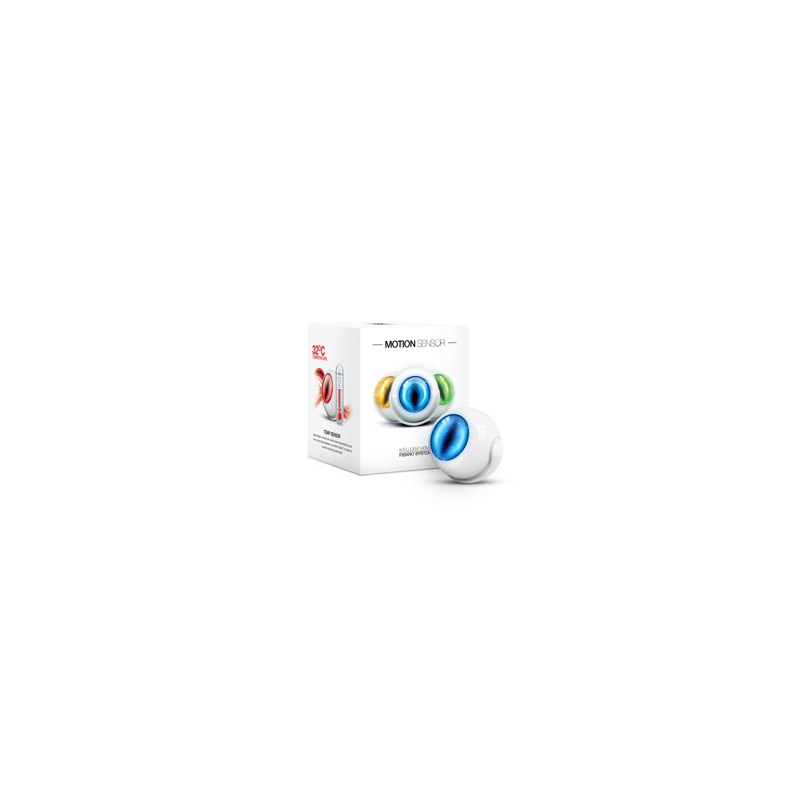

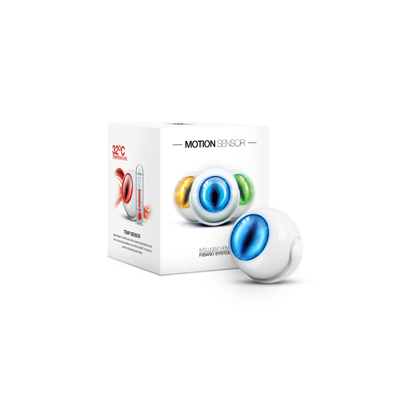

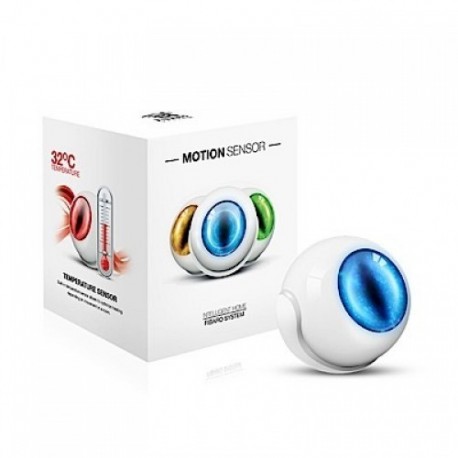

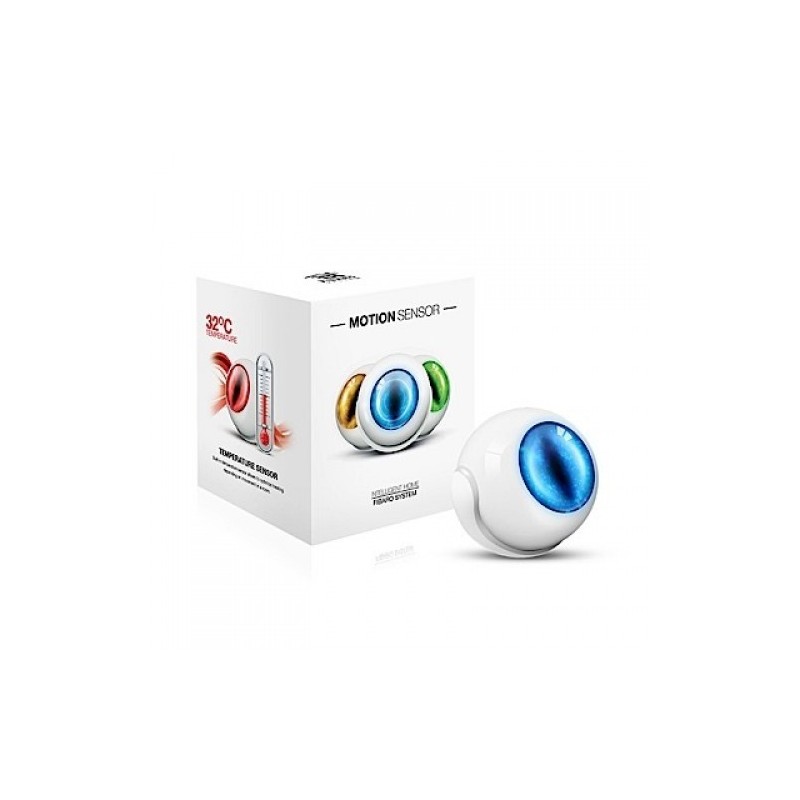

Detector de Movimento Multissensor 4-em-1 Fibaro Z-Wave Plus

Características tecnicas

Tecnologia Domótica	Z-Wave Plus

Mais Informação

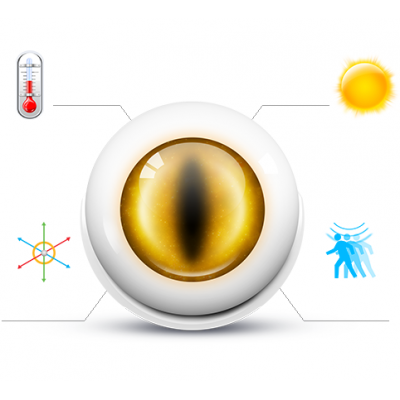

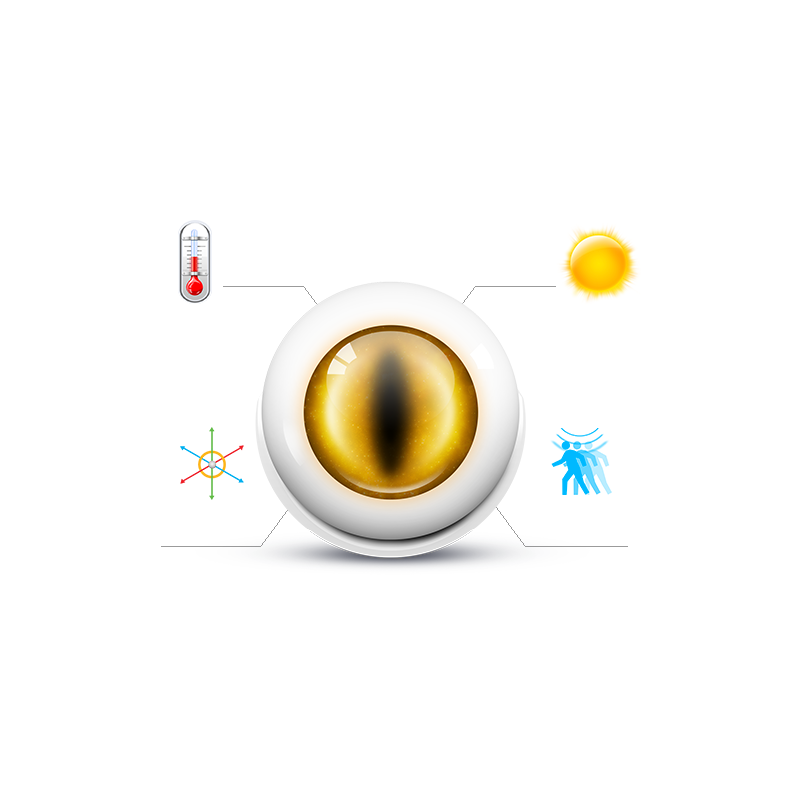

Este novo e inovador detector de movimentos Fibaro é um dispositivo multifuncional com tecnologia Z-Wave, com a capacidade de detectar: movimento, intensidade de luz, vibrações e temperatura. Instala-se de forma rápida e fácil em qualquer superfície. Seu LED multicolorido indica detecção de movimento e nível de temperatura. O sensor de movimento é ideal para criar cenas de iluminação e vigilância de segurança . Também é capaz de detectar qualquer tentativa de adulteração (adulteração), graças ao sensor de vibração integrado (acelerômetro).

Especificações técnicas :

FUNÇÕES:

Detector de movimento sem fio
Detecte movimento com um sensor infravermelho passivo
medição de temperatura
medição de intensidade de luz
Z-Wave Plus compatível
Proteção contra roubo e sabotagem
Alertas de movimento e temperatura indicados por LED piscando
modo de detecção de terremoto
Botão para incluir / excluir o detector
detecção de bateria fraca
Muito pequeno, de tamanho compacto
Fácil de instalar em uma parede, teto ou outra superfície

CARACTERÍSTICAS TECNICAS :

Tipo de Módulo: Transmissor Z-Wave
Alimentação: CR123A 3.6VDC
altura máxima altura de montagem recomendada: 2,4 m
medição da faixa de temperatura: -20 ° C a 100 ° C
Precisão de medição: 0,5 ° C
Faixa de medição de brilho: 0-32000 LUX
Frequência: 868,42 MHz
Distância de transmissão: campo livre 50m, 30m dentro de casa
Dimensões: 4,4 cm de diâmetro
Temperatura de operação: 0 a 40 ° C
certificações:
LVD 2006/95 / WE
EMC 2004/108 / WE
R & TTE 1999/5 / WE
RoHS II

Informação alargada da Z-Wave (Inglês)

Nome: Motion Sensor

Fabricante:FIBARO

Identificador:FGMS-001

Número de Certificação Z-Wave :ZC10-19076617

Plataforma de Hardware :ZM5202

FLiRS:Não

Tipo de Role :Reporting Sleeping Slave

Descrição breve :FIBARO Motion Sensor is a universal, battery-powered, Z-Wave Plus compatible multi-sensor.

Descrição :FIBARO Motion Sensor is a universal, Z-Wave Plus compatible multi-sensor. This device has a built-in motion sensor, temperature sensor and light sensor. Additionally, through vibrations detection, it may detect tampering attempt or an earthquake. FIBARO Motion Sensor is battery powered, completely wireless, and its casing allows for quick and non-invasive installation on any surface. The eye of the sensor visually indicates motion, temperature level, operating mode or may inform about Z-Wave network range. The device can be used for lighting scenes and presence monitoring systems.

Descarregue o manual a partir de aqui.

Grupo

Nodos máximos

Descrição

1

“Lifeline” reports the device status and allows for assigning single device only (main controller by default).

2

5

“Motion” is assigned to the motion sensor - sends motion detection and alarm cancellation frames to the associated devices.

3

5

“Tamper” is assigned to the tamper - sends tamper alarm and alarm cancellation frames to the associated devices.

4

5

“Motion BC” is assigned to the motion sensor - sends motion detection and alarm cancellation frames to the associated devices. Provides backward compatibility with controllers not supporting Z-Wave+ protocol.

5

“Tamper BC” is assigned to the tamper - sends tamper alarm and alarm cancellation frames to the associated devices. Provides backward compatibility with controllers not supporting Z-Wave+ protocol.

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

1

2

15

Motion detection - sensitivity

The lower the value, the more sensitive the PIR sensor is.

12

1

0

BASIC command class configuration

This parameter determines the command frames sent to 2nd association group (assigned to PIR sensor).

14

2

255

BASIC ON command frame value

The command frame sent at the moment of motion detection. Further motion detections, during the cancellation time, will not result in sending the association.

16

2

0

BASIC OFF command frame value

The command frame sent at the moment of motion alarm cancellation, after cancellation delay time specified in parameter 6.

18

1

15

Associations in Z-Wave network Security Mode

This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. It does not apply to 1st group “Lifeline”.

2

1

15

Motion detection - blind time

PIR sensor is “blind” (insensitive) to motion after last detection for the amount of time specified in this parameter. Shorter time periods allow to detect motion more frequently, but the battery will be drained faster.

20

1

20

Tamper - sensitivity

This parameter determines the change in force acting on the device, that will result in reporting tamper alarm - g-force acceleration.

22

2

30

Tamper - alarm cancellation delay

Time period after which a tamper alarm will be cancelled in the main controller and associated devices. Any tampering detected during this period will not extend the delay.

24

1

0

Tamper - operating modes

This parameter determines function of the tamper and sent reports. It is an advanced feature serving much more functions than just detection of tampering.

25

1

Tamper - alarm cancellation

This parameter allows to disable cancellation of the tamper alarm.

28

1

0

Tamper - broadcast mode

The parameter determines whether the tamper alarm frame will or will not be sent in broadcast mode. Alarm frames sent in broadcast mode can be received by all of the devices within range (if they accept such frames), but not repeated by them.

29

1

0

Tamper - backward compatible broadcast mode

The parameter determines whether the backward compatible tamper alarm frame will or will not be sent in broadcast mode. Alarm frames sent in broadcast mode can be received by all of the devices within range (if they accept such frames), but not repeated by them. This parameter provides backward compatibility with controllers not supporting Z-Wave+.

3

1

Motion detection - pulse counter

This parameter determines the number of moves required for the PIR sensor to report motion. The higher the value, the less sensitive the PIR sensor is. It is not recommended to modify this parameter settings!

4

1

2

Motion detection - window time

Period of time during which the number of moves set in parameter 3 must be detected in order for the PIR sensor to report motion. The higher the value, the more sensitive the PIR sensor is. It is not recommended to modify this parameter setting!

40

2

200

Illuminance report - threshold

This parameter determines the change in light intensity level resulting in illuminance report being sent to the main controller.

42

2

3600

Illuminance report - interval

Time interval between consecutive illuminance reports. The reports are sent even if there is no change in the light intensity.

6

2

30

Motion detection - alarm cancellation delay

Time period after which the motion alarm will be cancelled in the main controller and associated devices. Any motion detected during this period resets the timer.

60

2

10

Temperature report - threshold

This parameter determines the change in measured temperature that will result in new temperature report being sent to the main controller.

62

2

900

Temperature measuring - interval

Time interval between consecutive temperature measurements. The shorter the time, the more frequently the temperature will be measured, but the battery life will shorten.

64

2

0

Temperature report - interval

Time interval between consecutive temperature reports. The reports are sent even if there is no change in the temperature.

66

2

0

Temperature offset

The value to be added to the actual temperature, measured by the sensor (temperature compensation).

8

1

0

Motion detection - operating mode

This parameter determines in which part of day the PIR sensor will be active. This parameter influences only the motion reports and associations. Tamper, light intensity and temperature measurements will be still active, regardless of this parameter settings.

80

1

10

Visual LED indicator - signalling mode

This parameter determines the way in which visual indicator behaves after motion has been detected.

81

1

50

Visual LED indicator - brightness

This parameter determines the brightness of the visual LED indicator when indicating motion.

82

2

100

Visual LED indicator - illuminance for low indicator brightness

Light intensity level below which brightness of visual indicator is set to 1%.

83

2

1000

Visual LED indicator - illuminance for high indicator brightness

Light intensity level above which brightness of visual indicator is set to 100%.

86

2

18

Visual LED indicator - temperature for blue colour

This parameter is determines minimal temperature that will result in blue visual indicator colour. Relevant only when parameter 80 has been properly configured.

87

2

28

Visual LED indicator - temperature for red colour

This parameter is determines minimal temperature that will result in red visual indicator colour. Relevant only when parameter 80 has been properly configured.

89

1

Visual LED indicator - tamper alarm

This parameter allows to enable/disable indicating tamper alarm (flashing white, red and blue)

9

2

200

Motion detection - night/day

This parameter defines the difference between night and day in terms of light intensity, used in parameter 8.

Basic

COMMAND_CLASS_BASIC

Application Status

COMMAND_CLASS_APPLICATION_STATUS

Association Group Info

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic

COMMAND_CLASS_BASIC

Battery

COMMAND_CLASS_BATTERY

Configuration

COMMAND_CLASS_CONFIGURATION

CRC16 Encapsulation

COMMAND_CLASS_CRC_16_ENCAP

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V3

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Multi Channel Association V2

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2

Notification V5

COMMAND_CLASS_NOTIFICATION_V5

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S0

COMMAND_CLASS_SECURITY

Sensor Alarm

COMMAND_CLASS_SENSOR_ALARM

Sensor Binary

COMMAND_CLASS_SENSOR_BINARY

Sensor Multilevel V8

COMMAND_CLASS_SENSOR_MULTILEVEL_V8

Version V2

COMMAND_CLASS_VERSION_V2

Wake Up V2

COMMAND_CLASS_WAKE_UP_V2

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Inclusion

1. Open the cover by turning it counter-clockwise.

2. Place the device within the direct range of your Z-Wave controller.

3. Set the main controller in (security/non-security) add mode (see the controller’s manual).

4. Quickly, three times press the B-button.

5. Wait for the adding process to end.

6. Successful adding will be confirmed by the Z-Wave controller’s message.

Exclusion

1. Open the cover by turning it counter-clockwise.

2. Place the device within the direct range of your Z-Wave controller.

3. Set the main controller in remove mode (see the controller’s manual).

4. Quickly, three times press the B-button.

5. Wait for the removing process to end.

6. Successful removing will be confirmed by the Z-Wave controller’s message.

Factory Reset

1. Open the cover by turning it counter-clockwise.

2. Press and hold the B-button.

3. Wait for visual indicator to glow yellow (2nd menu position).

4. Release the B-button.

5. Click the B-button to confirm selection.

6. After few seconds the device will be reset, which is signalled with the red, fading visual indicator colour.

Use reset procedure only if the primary controller is missing or inoperable.

Device Wake-Up

The Motion Sensor will wake up at a defined time interval and will always try to communicate with the main controller. There is a possibility to wake up the device manually by clicking the B-button.
