Nome: Multiple Sound Siren
Fabricante:Philio
Identificador:PSE04
Número de Certificação Z-Wave :ZC12-21060239
Plataforma de Hardware :ZGM130
FLiRS:Sim
Tipo de Role :Listening Sleeping Slave

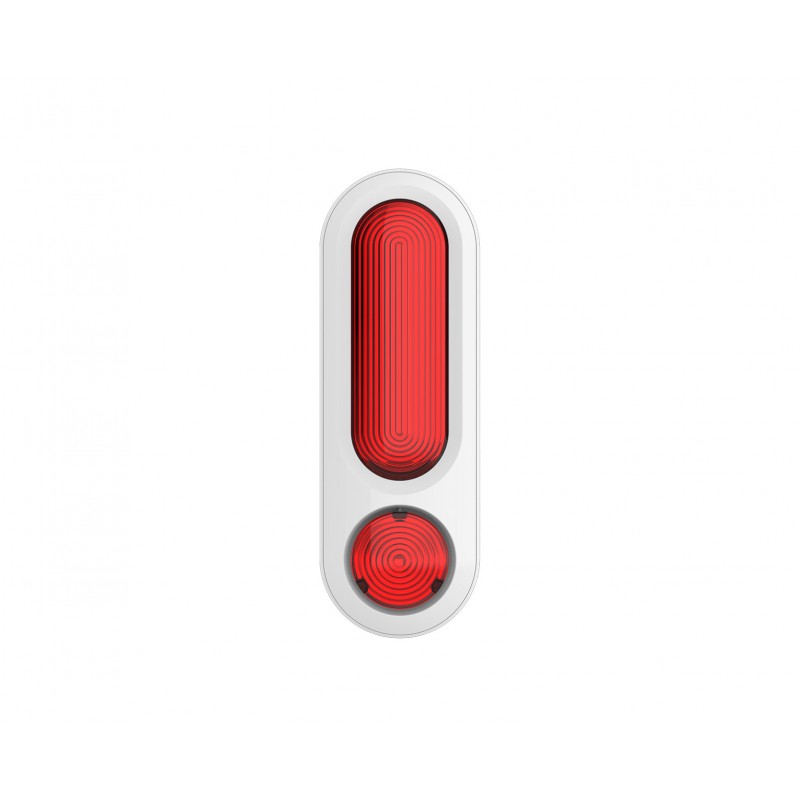

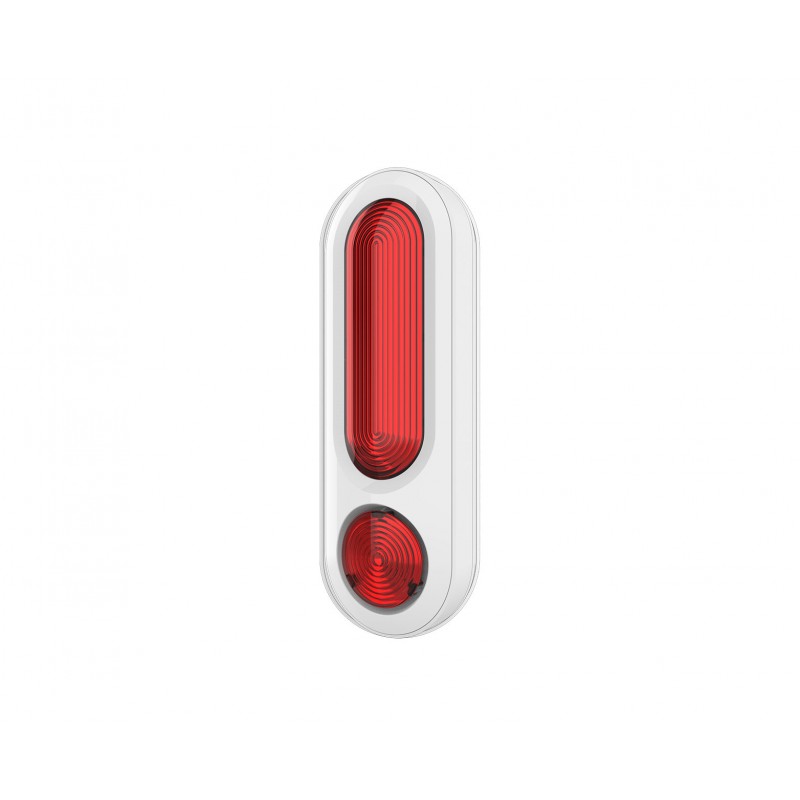

Descrição breve :The PSE04 is a wireless siren, based on Z-WaveTM technology.
Descrição :The PSE04 is the Z-WaveTM plus product, it support the security, OTA... Those newest features of the Z-WaveTM technology. Z-WaveTM is a wireless communication protocol designed for home automation, specifically to remotely control applications in residential and light commercial environments. The technology uses a low-power RF radio embedded or retrofitted into home electronics devices and systems, such as lighting, home access control, entertainment systems and household appliances.
Descarregue o manual a partir de aqui.
Grupo
Nodos máximos
Descrição
1
1
(LifeLine group) This machine provides one groups of nodes. Each group can set 1 Nodes.
Used for returned events.
Número
Tamanho (Bytes)
Valor por defeito
Nome
Descrição
1
1
30
Auto Report Tick Interval
The interval time for auto report each tick.
2
1
6
Sound Duration
Play sound duration, 1 tick is 30 seconds.
3
1
0
Customer Function
Customer function switch, using bit control.
4
1
12
Auto Report Temperature Time
The interval time for auto report the temperature.
5
1
0
Temperature Differential Report
The temperature differential to report.
6
1
12
Auto Report Battery Time
The interval time for auto report the battery level.
7
1
67
Play Sound Control
Control play sound's level and which sound.
Association Group Information V3
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
Association V2
COMMAND_CLASS_ASSOCIATION_V2
Basic V2
COMMAND_CLASS_BASIC_V2
Battery
COMMAND_CLASS_BATTERY
Configuration V4
COMMAND_CLASS_CONFIGURATION_V4
Device Reset Locally
COMMAND_CLASS_DEVICE_RESET_LOCALLY
Firmware Update Meta-Data V5
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
Indicator V3
COMMAND_CLASS_INDICATOR_V3
Manufacturer Specific V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
Multi-Channel Association V3
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3
Powerlevel
COMMAND_CLASS_POWERLEVEL
Security S0
COMMAND_CLASS_SECURITY
Security S2
COMMAND_CLASS_SECURITY_2
Sensor Multilevel V11
COMMAND_CLASS_SENSOR_MULTILEVEL_V11
Sound Switch
COMMAND_CLASS_SOUND_SWITCH
Supervision
COMMAND_CLASS_SUPERVISION
Transport Service V2
COMMAND_CLASS_TRANSPORT_SERVICE_V2
Version V3
COMMAND_CLASS_VERSION_V3
Z-Wave Plus Info V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Where to find S2 DSK on product
The QR code can be found on the device PSE04 or on the box.
Classic Inclusion
1. Have Z-WaveTM Controller entered inclusion mode.
2. Pressing tamper key three times within 1.5 seconds to enter the inclusion mode.
3. After add successful, the LED will light ON 1 second
Classic Exclusion
1. Have Z-WaveTM Controller entered exclusion mode.
2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode.
3. Node ID has been excluded.
Factory Reset Procedure
1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4th pressed, and the LED will light ON.
2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once.
3. IDs are excluded and all settings will reset to factory default.
Wake-Up Procedure
If a Z-Wave controller or other node in the network needs to communicate with a battery-powered device such as a door lock, the controller sends a special beam signal. The purpose of this beam is to wake up the FLiRS device.
When the FLiRS device receives this beam, it immediately fully wakes up and then communicates with the controller or other Z-Wave device utilizing standard Z-Wave protocol commands. If the device does not hear a Beam it goes back to full sleep for another period until it partially awakes again and listens for a Beam.
S2 Authenticated
S2_AUTHENTICATED
S2 Unauthenticated
S2_UNAUTHENTICATED
Battery Quantity
Enter the number of batteries of the designated type that the product uses.
Battery Type
Enter the type (e.g. AA, CR2032, AAA) of the battery/batteries that the product uses.
Firmware Updatable
Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.
