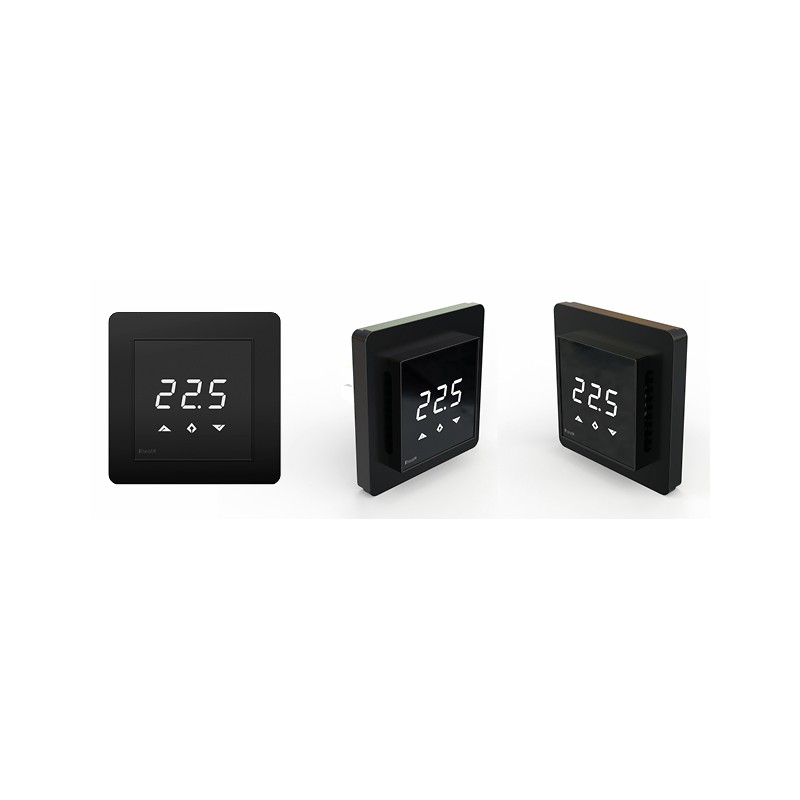

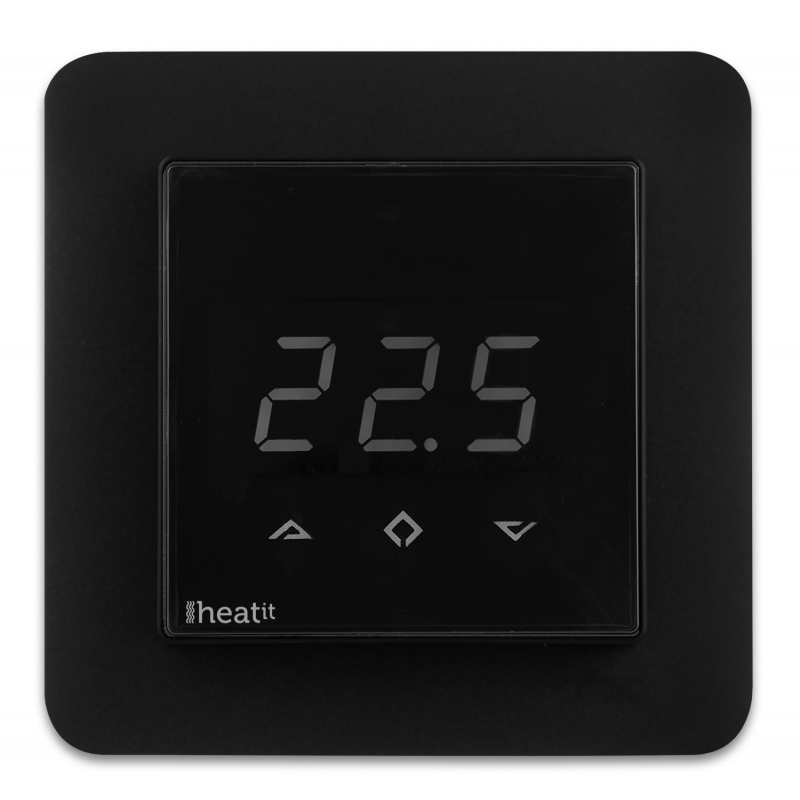

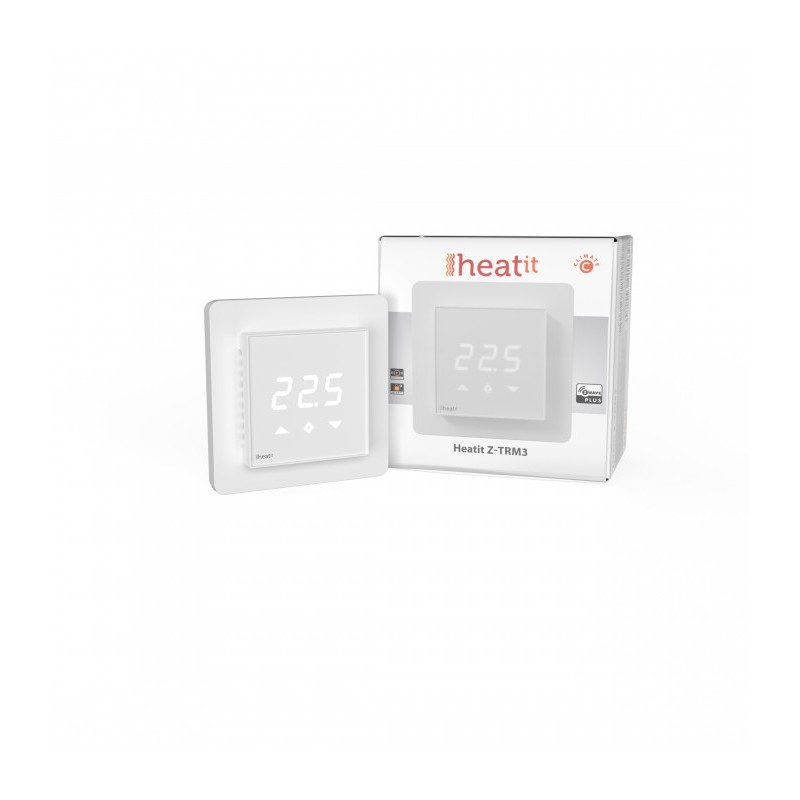

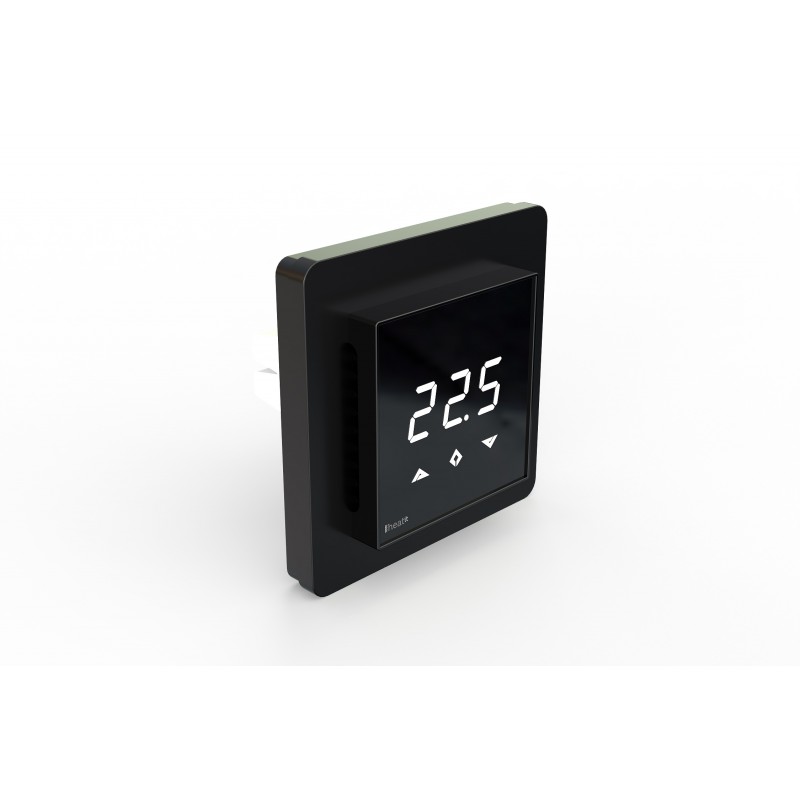

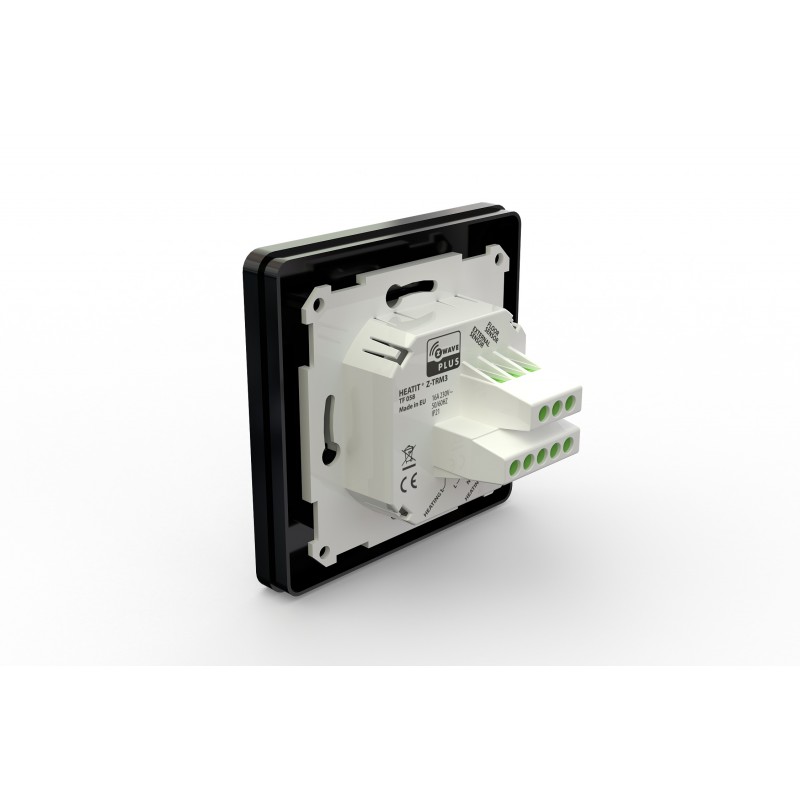

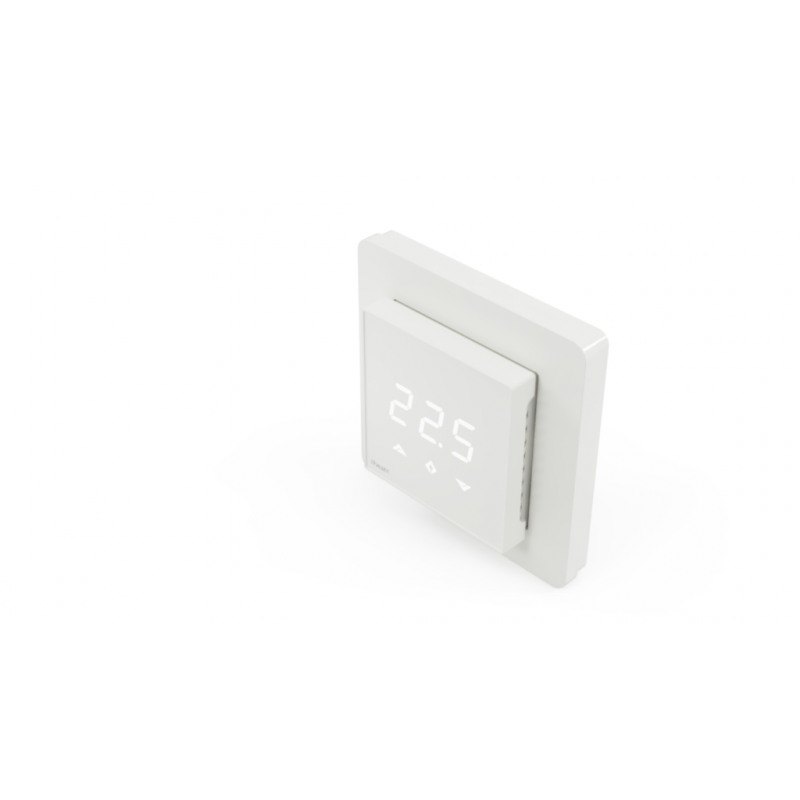

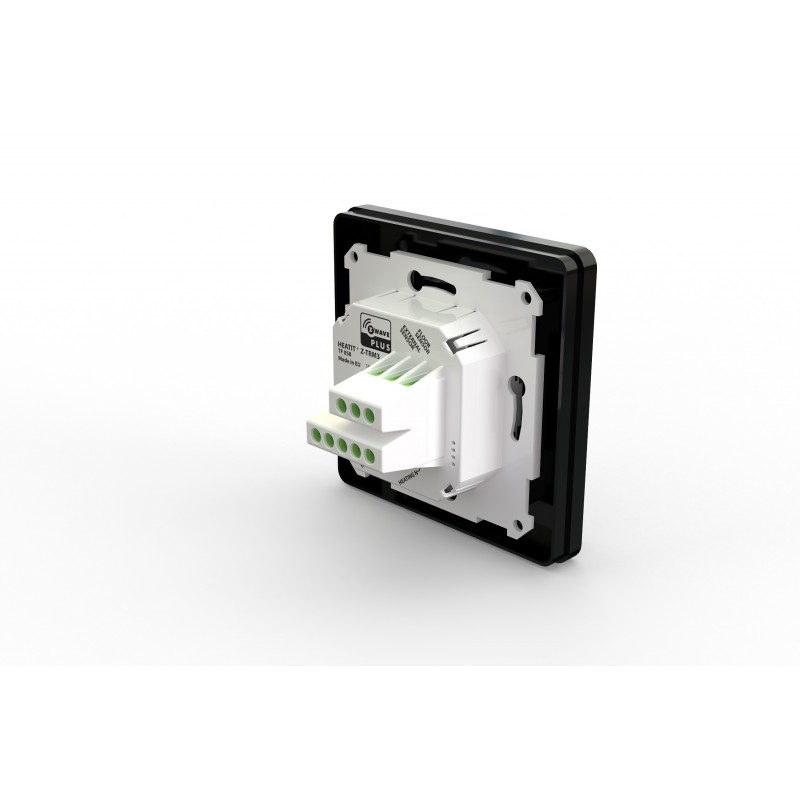

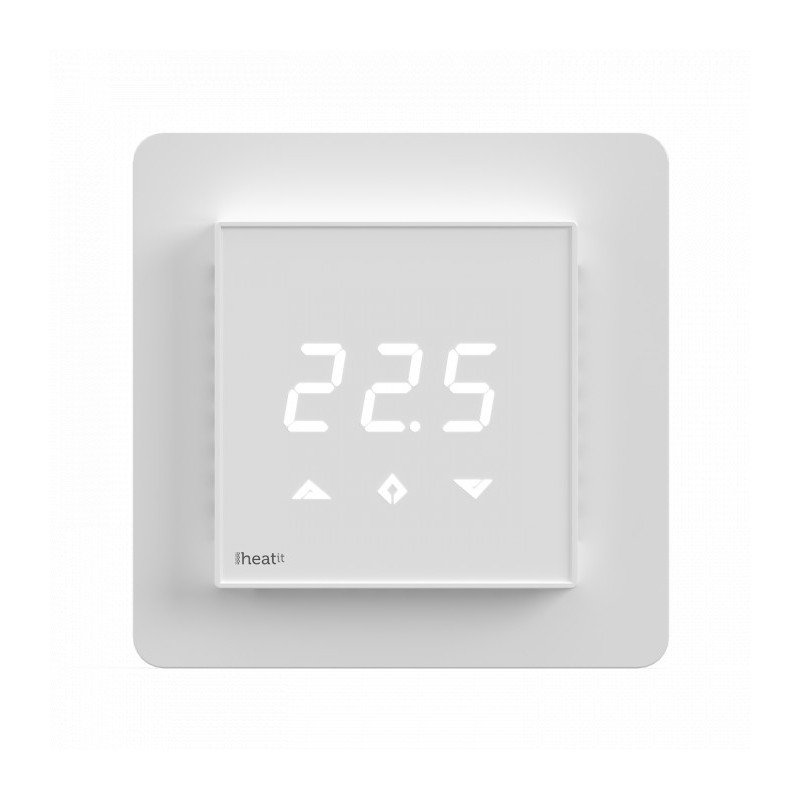

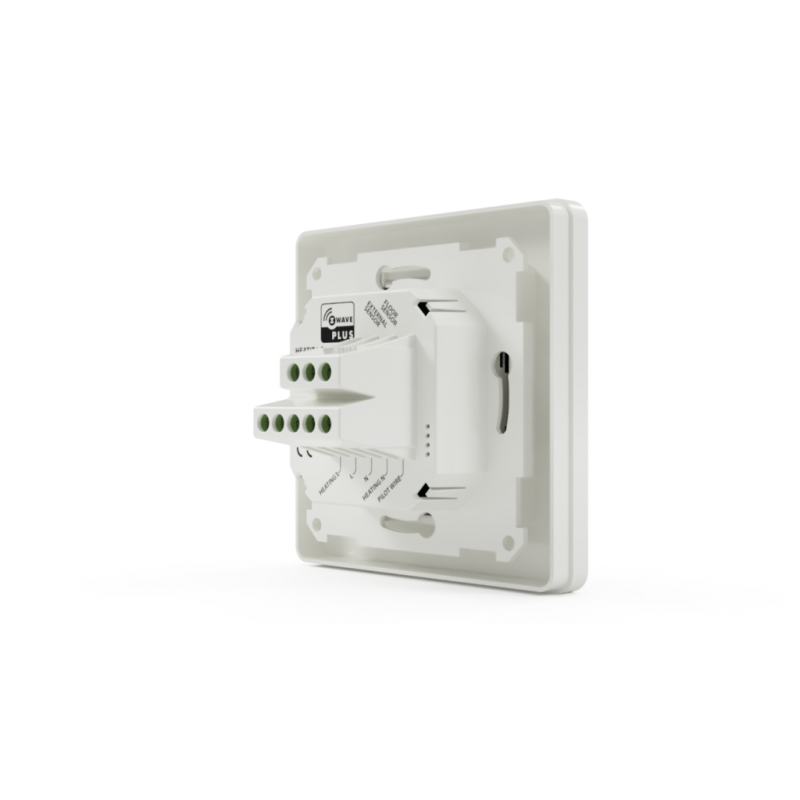

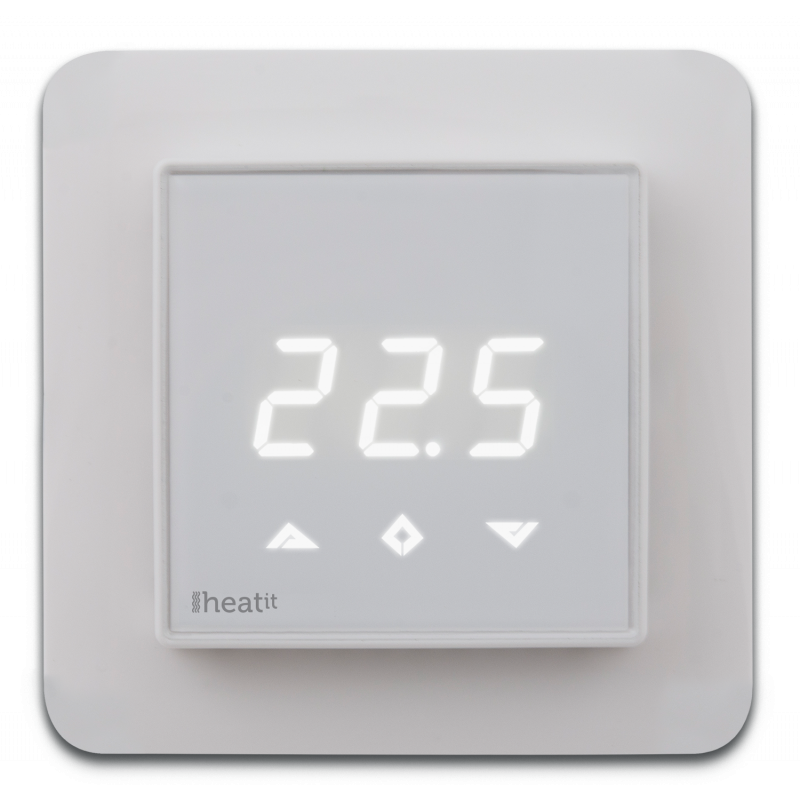

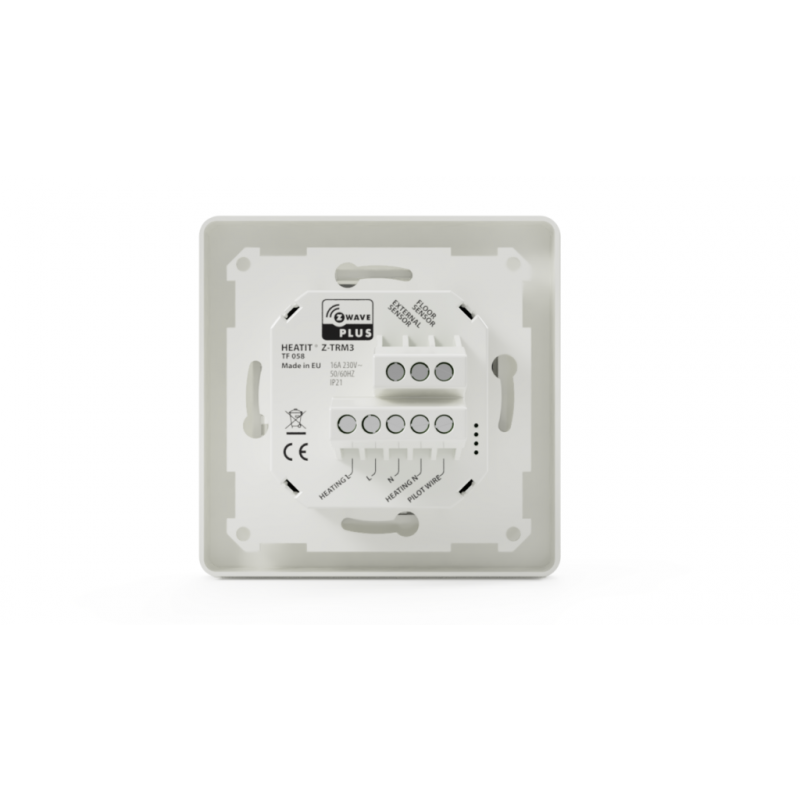

Termostato Heatit Z-TRM3 Z-Wave Plus para piso radiante

Características tecnicas

Tecnologia Domótica	Z-Wave Plus

Mais Informação

Heatit Z-TRM3 é um termostato eletrônico para aquecimento elétrico de piso, projetado para ser montado em uma caixa de parede padrão. O termostato possui um chip Z-Wave integrado que pode ser conectado a sistemas de automação residencial. O Heatit Z-TRM3 está equipado com um interruptor de um pólo e se encaixa nas estruturas do System 55. O termostato pode suportar uma carga máxima de 16A / 3600W a 230V. O termostato pode ser usado para aquecimento à base de água se o termostato estiver conectado ao Heatit Z-Water.

CARACTERISTICAS

O sensor de solo
Sensor interno da sala
Sensor externo da sala (com fio)
Limitador de temperatura
SmartStart
Programação / restauração semanal através do gateway
A temperatura lida no portal
Atualização de firmware (OTA)
Medição de energia
LEDs de status do relé
Chave de um único pólo
Modo de bloqueio para crianças / bloqueio
Calibração
5 associações
Suporta o modo de criptografia: S0, S2 Authenticated Class, S2 Unauthenticated Class
Este produto é um produto de segurança Z-Wave Plus com criptografia. O produto deve ser usado com um controlador de segurança Z-Wave para ser totalmente utilizado.

DADOS TÉCNICOS
Protocolo Wave Z - 868,4 MHz
Chip Z-Wave 500
Tensão nominal 230 V 50/60 Hz
Carga máxima 3600W (carga resistiva) 750W cabo de aquecimento autolimitado
Corrente máxima 16A
Consumo de energia <2,0W
Temperatura ambiente 0 ° C a 40 ° C (durante a operação)
Faixa de temperatura de 5 ° C a 40 ° C
Histerese 0,3 ° C a 3,0 ° C (padrão 0,5 ° C)
Compatível com sensores NTC com valores de 10, 12, 15, 22, 33 e 47 k © a 25 ° C
Código IP IP 21
Aprovações Z-Wave Plus, CE, EN 60730-1, EN 60730-2-9, EMC 2014/30 / EU, RoHS 2011/65 / EU, LVD 2014/35 / EU

DIMENSÕES

Tamanho Termostato Z-Wave Heatit Z-TRM3

Informação alargada da Z-Wave (Inglês)

Nome: Heatit Z-TRM3

Fabricante:HEATIT

Identificador:Z-TRM3

Número de Certificação Z-Wave :ZC10-20036889

Plataforma de Hardware :ZM5101

FLiRS:Não

Tipo de Role :Always On Slave

Descrição breve :Heatit Z-TRM3 is an electronic thermostat for electrical floor heating, designed to be mounted in a standard flush box. The thermostat has a built-in Z-Wave chip that can be connected with Home Automation systems. Heatit Z-TRM3 has SmartStart.

Descrição :Heatit Z-TRM3 is an electronic thermostat for electrical floor heating, designed to be mounted in a standard flush box. The thermostat has a built-in Z-Wave chip that can be connected with Home Automation systems. Heatit Z-TRM3 has SmartStart. This feature allows the user to include all devices with SmartStart by scanning the QR codes on the devices. On startup all the devices will automatically be included in the gateway (requires SmartStart compability). This saves the installer a lot of work. Heatit Z-TRM3 is equipped with a single pole switch and fits into System 55 frames. The thermostat can withstand a load of max 16A /3600W at 230V. At higher loads the thermostat must control a contactor. The thermostat may be connected to two wired external sensors. The thermostat has the capacity of up to 5 associations (relays, wall plugs etc.). The thermostat is designed for electrical heating. It may be used for waterbased heating if the thermostat is linked with the Heatit Z-Water.

Descarregue o manual a partir de aqui.

Grupo

Nodos máximos

Descrição

1

5

Lifeline. Normally used by the Z-Wave Controller

2

5

Send Binary Switch Set commands representing the status of the internal relay

3

5

Send Multilevel Sensor Reports for internal temperature sensor

4

5

Send Multilevel Sensor Reports for external room temperature sensor

5

Send Multilevel Sensor Reports for floor sensor

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

1

Operation mode

10

1

0

Room sensor calibration (A)

Room sensor calibration (A) NB. To set a negative value, use 256 and subtract the desired value.

11

1

0

Floor sensor calibration

Floor sensor calibration. NB. To set a negative value, use 256 and subtract the desired value.

12

1

0

External sensor calibration

External sensor calibration. NB. To set a negative value, use 256 and subtract the desired value.

13

1

0

Temperature display

Temperature display. Selects which temperature is shown on the display. Refer to Chapter 11 ”Standby and main screen”.

14

1

50

Button brightness – dimmed state

Button brightness – dimmed state. Configure the brightness of the buttons in dimmed state.

15

1

100

Button brightness – active state

Button brightness – active state. Configure the brightness of the buttons in active state.

16

1

50

Display brightness – dimmed state

Display brightness – dimmed state. Configure the brightness of the display in dimmed state.

17

1

100

Display brightness – active state

Display brightness – active state. Configure the brightness of the display, in active state.

18

2

60

Temperature report interval

Temperature report interval. Time interval between consecutive temperature reports. Temperature reports can also be sent as a result of polling.

19

1

10

Temperature report hysteresis

Temperature report hysteresis. The temperature report will be sent if there is a difference in temperature value from the previous value reported, defined in this parameter (hysteresis). Temperature reports can also be sent as a result of polling.

2

1

Sensor mode

20

2

90

Meter report interval.

Meter report interval. Time interval between consecutive meter reports. Meter reports can also be sent as a result of polling.

21

1

10

Meter report delta value

Meter report delta value. Delta value in kWh between consecutive meter reports. Meter reports can also be sent as a result of polling.

3

1

0

Floor sensor type

4

1

5

Temperature control hysteresis (DIFF I)

5

2

50

Floor minimum temperature limit (FLo)

6

2

400

Floor maximum temperature limit (FHi)

7

2

50

Air (A2) minimum temperature limit (ALo)

8

2

400

Air (A2) maximum temperature limit (AHi)

9

2

210

Heating mode setpoint

Meter V3

COMMAND_CLASS_METER_V3

Sensor Multilevel V5

COMMAND_CLASS_SENSOR_MULTILEVEL_V5

Thermostat Mode V3

COMMAND_CLASS_THERMOSTAT_MODE_V3

Thermostat Operating State

COMMAND_CLASS_THERMOSTAT_OPERATING_STATE

Thermostat Setpoint V3

COMMAND_CLASS_THERMOSTAT_SETPOINT_V3

Association Group Info

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic V2

COMMAND_CLASS_BASIC_V2

Configuration V3

COMMAND_CLASS_CONFIGURATION_V3

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V4

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Meter V3

COMMAND_CLASS_METER_V3

Multi-Channel Association V3

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel V4

COMMAND_CLASS_MULTI_CHANNEL_V4

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S0

COMMAND_CLASS_SECURITY

Security S2

COMMAND_CLASS_SECURITY_2

Sensor Multilevel V5

COMMAND_CLASS_SENSOR_MULTILEVEL_V5

Supervision

COMMAND_CLASS_SUPERVISION

Thermostat Mode V3

COMMAND_CLASS_THERMOSTAT_MODE_V3

Thermostat Operating State

COMMAND_CLASS_THERMOSTAT_OPERATING_STATE

Thermostat Setpoint V3

COMMAND_CLASS_THERMOSTAT_SETPOINT_V3

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V3

COMMAND_CLASS_VERSION_V3

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Where to find S2 DSK on product

The Z-Wave DSK can be found in the QR-Code and is located in 3 locations;

1. On the product box.

2. On the physical product, placed on the black plastic underneath the front.

3. On the PCB internally.

Classic Exclusion

Remove.

The primary controller/gateway has a mode for removing devices. Please refer to your primary controller manual on how to set the primary controller in remove mode. The device may only be removed from the network if the primary controller is in remove mode. When the device is removed from the network, it will NOT revert to factory settings.

Removing mode is indicated on the display by rotating LED segments on the display. This lasts until the timeout occurs after 90 seconds, or until the module has been added/removed in the network. Confirmation will show Inc/EcL on the display. Exit programming mode by choosing ESC in the menu. Your thermostat is

now ready for use with default settings.

NB! When the thermostat is removed from the gateway, the parameters are not reset.

Other Special Features

Chapter 8. Principles of regulation

Chapter 11. Standby and main screen

Chapter 12. Choice of sensor

Chapter 13. Selecting the right value for your external floor sensor

Chapter 14. Calibration

Chapter 17. Min/Max temperature settings

Chapter 18.1 Display on/off

Chapter 18.2 Childlock

Factory Reset Procedure

By pressing buttons Right and Center (down and confirm) for 20 seconds, the thermostat will perform a complete factory reset.

NB! Please use this procedure only when the primary controller/gateway is missing or otherwise inoperable.

The device will display rES for 10 seconds while performing a factory reset. When rES no longer is displayed, the thermostat has been reset.

Classic Inclusion

Add.

The primary controller/gateway has a mode for adding devices. Please refer to your primary controller manual on how to set the primary controller in add mode. The device may only be added from the network if the primary controller is in add mode.

There are two ways to add the Heatit Z-TRM3 to a Z-Wave network.

METHOD 1: STANDARD (MANUAL)

1. Press Center (confirm) for 10 seconds. The display will show OFF.

2. Press Right (down) 5 times until you see Con on the display.

3. Start the add/remove device process in your primary controller.

4. Start the add/remove mode in the Heatit Z-TRM3 by pressing Center (confirm) for approximately 2 seconds.

Adding mode is indicated on the display by rotating LED segments on the display. This lasts until the timeout occurs after 90 seconds, or until the module has been added in the network. Confirmation will show Inc/EcL on the display. Exit programming mode by choosing ESC in the menu. Your thermostat is now ready for use with default settings.

METHOD 2: SMARTSTART (AUTOMATIC)

SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR-Code present on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity.

S2 Authenticated

S2_AUTHENTICATED

S2 Unauthenticated

S2_UNAUTHENTICATED

IP (Ingress Protection) Rated

Product is suitable for Outdoor use and is waterproof under an IP (Ingress Protection) rating system.

Switch Type

Describes the type of operator for a switch.

Thermostat HVAC Systems Supported

Indicate which HVAC system or systems are supported by the thermostat.

Thermostat Modes

Select the mode(s) supported by the thermostat.
