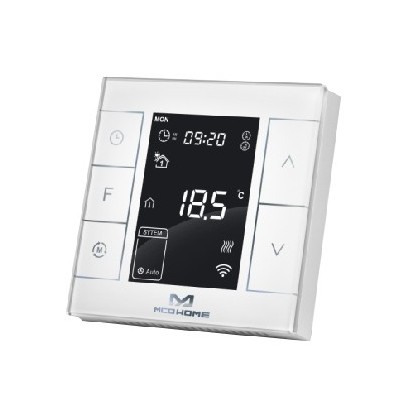

Reduced price! MCO Home - Termostato para Calefacción Eléctrica MH7

View larger

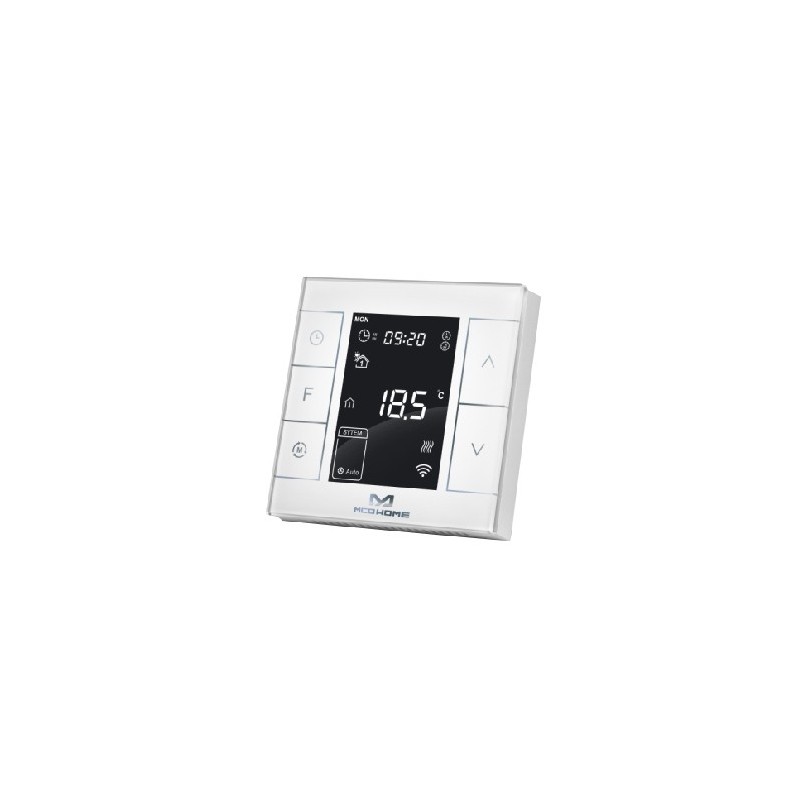

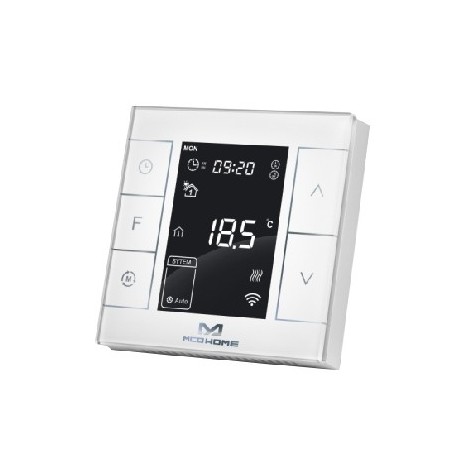

MCO Home - Termostato MH7 para Aquecimento Elétrico

Referência: MH7-EH-EU

Estado: Novo

Z-Wave mais termostato para aquecimento com base em água limpa, como sistemas de caldeira a gás , válvula ou bomba de água, aquecimento por piso radiante de água quente, sistemas de radiadores, etc.

Mais detalhes

Em estoque

Avaliação

Ver as avaliações (1)
Escrever uma avaliação

Retirar este produto da minha lista de favoritos.
Adicionar este produto à minha lista de favoritos.
Print

Características tecnicas

Tecnologia Domótica	Z-Wave Plus

Mais Informação

Z-Wave mais termostato para aquecimento com base em água limpa, como sistemas de caldeira a gás, válvula ou bomba de água, aquecimento por piso radiante de água quente, sistemas de radiadores, etc.

Este termostato painel de vidro temperado com botões capacitivos
Programação programável: 4 eventos todos os dias de 7 dias 5 + 2 5 + 1 + 1
Operação: manual, automático (períodos de tempo), feriados (economia de energia)
Com dois sensores de temperatura para o controle interno de temperatura. Sensor: NTC 15K
Temp externo Sensor (opcional): NTC R25 = 15K e Omega B25 / 50 = 3550K
Ambiente de trabalho: 0-50 <90% RH (sem condensação)
Built-in Z-Wave module (UE) Opcional: RS485, WIFI

Download

MCO Home MH7 Series

Download (316.66k)

Informação alargada da Z-Wave (Inglês)

Nome: Heating Thermostat

Fabricante:MCO Home

Identificador:MH7H-WH/EH

Número de Certificação Z-Wave :ZC10-18046084

Plataforma de Hardware :ZM5202

FLiRS:Não

Tipo de Role :Always On Slave

Descrição breve :MCOHome Water / Electrical Heating Thermostat MH7H is a Z-Wave Plus enabled device for indoor temperature control.

Descrição : MH7H-WH is mainly applied to control wall mounted boiler, water valve/pump etc. , while MH7H-EH is for electrical heating system.The device is of high reliability and practicability, which can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. Features：  Capacitive touch buttons  Tempered glass panel, PC alloy enclosure  Precise temperature calibration function  Attractive appearance  Clear display, easy to operate Specification:  Power Supply：AC85-260V, 50/60HZ  Output: MH7H-WH ≤5A ; MH7H-EH≤ 16A  Self Consumption：≤1W  External Temp. Sensor(optional): NTC R25℃=15KΩ B25℃/50℃=3550K  Working Environment：0-50℃; 0-90% RH（Non- condensation)  Temperature Setting：5-37 ℃（41-99℉）（Adjustable）  Dimension：86* 86*15mm  Hole Pitch：60-61mm

Descarregue o manual a partir de aqui.

Grupo

Nodos máximos

Descrição

Z-Wave Plus Lifeline

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

Association Group Info

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic

COMMAND_CLASS_BASIC

Firmware Update Meta-Data V4

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S2

COMMAND_CLASS_SECURITY_2

Sensor Multilevel V5

COMMAND_CLASS_SENSOR_MULTILEVEL_V5

Supervision

COMMAND_CLASS_SUPERVISION

Thermostat Mode V2

COMMAND_CLASS_THERMOSTAT_MODE_V2

Thermostat Operating State

COMMAND_CLASS_THERMOSTAT_OPERATING_STATE

Thermostat Setpoint V2

COMMAND_CLASS_THERMOSTAT_SETPOINT_V2

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V2

COMMAND_CLASS_VERSION_V2

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Inclusion

In normal working interface, press & hold S4 to enter interface for adding or removing of Z-Wave network. Before device added into network, “- - -” will display on the screen. Then press S4 once, device will enter learning mode to get a node ID. If adding is succeed, a node ID will display on the screen in a few seconds.

A node ID can always inform us whether the device is in the network or not.

After adding, turn off the device and then turn it on. Now the device is ready to be operated by controller/ gateway in Z-Wave network.

Exclusion

In normal working interface, press & hold S4 to enter interface for adding or removing of Z-Wave network. Before device removed from network, a Node ID will display on the screen. Then press S4 once. If removing is succeed, “- - -”will display on the screen in a few seconds.

A node ID can always inform us whether the device is in the network or not.When removed, the device will restore its factory setting.

Factory Reset

A parameter P18 in the secret menu can be used to restore factory setting locally. Please use this procedure only when the network primary controller is missing or otherwise inoperable. ; And a parameter FF can be used to restore the factory setting via Z-Wave.

S2 Unauthenticated

S2_UNAUTHENTICATED

Thermostat HVAC Systems Supported

Indicate which HVAC system or systems are supported by the thermostat.

Thermostat Modes

Select the mode(s) supported by the thermostat.

Thermostat Power Source

Select one or more supported power sources for a thermostat.

Firmware Updatable

Indicates whether the firmware can be updated and whether it is done by the consumer or a technician.

Switch Load Capacity Current

The amount of switch load energy the product is rated for in Amps
