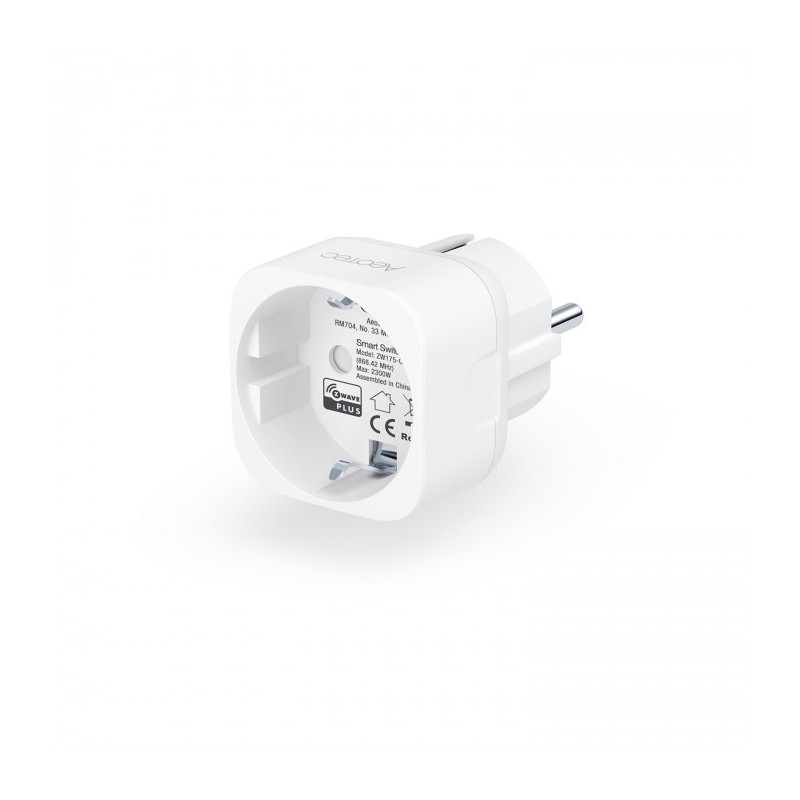

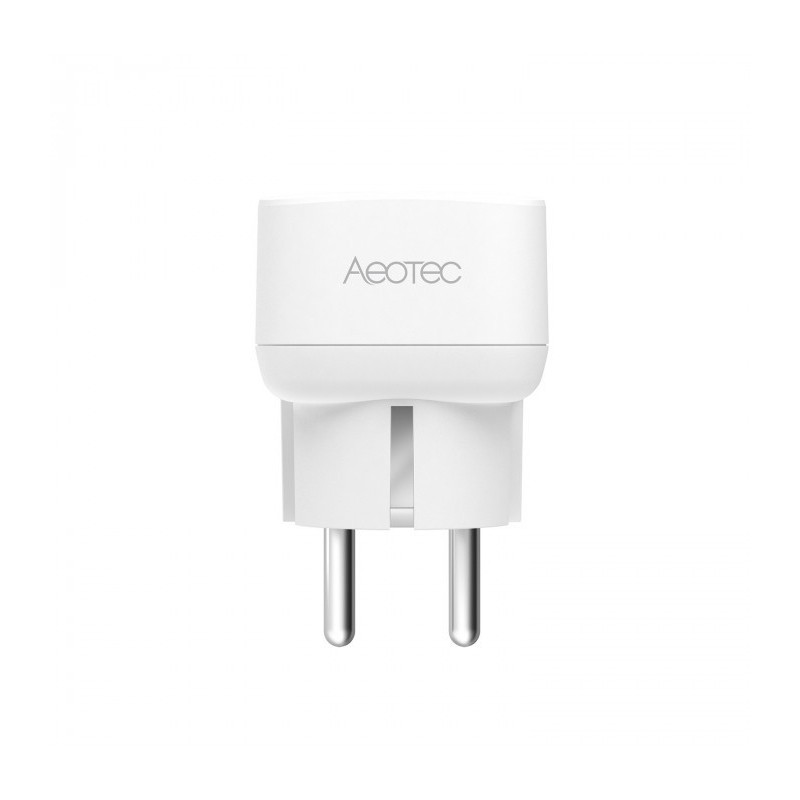

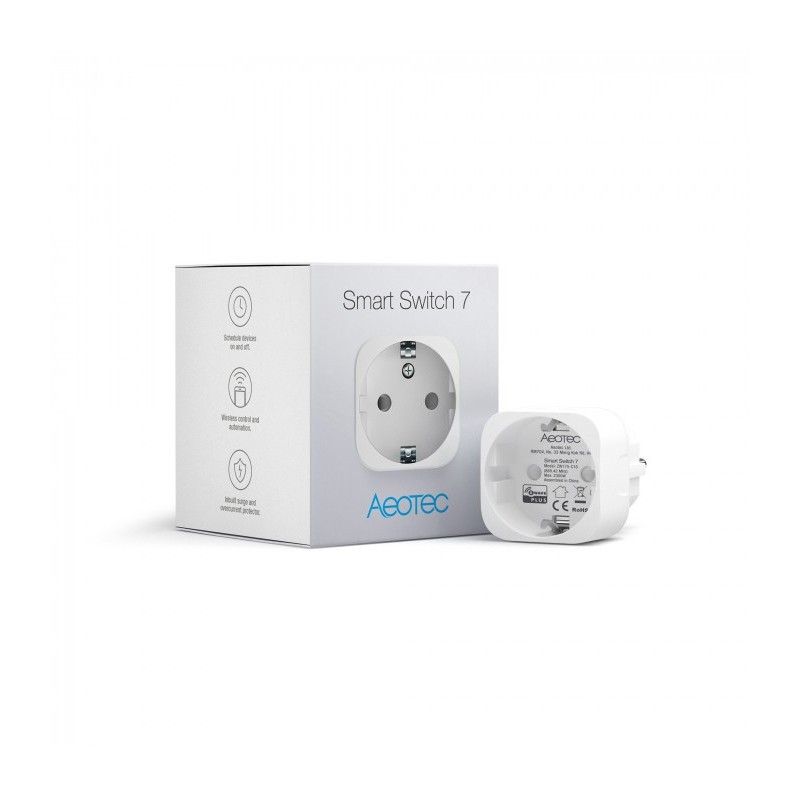

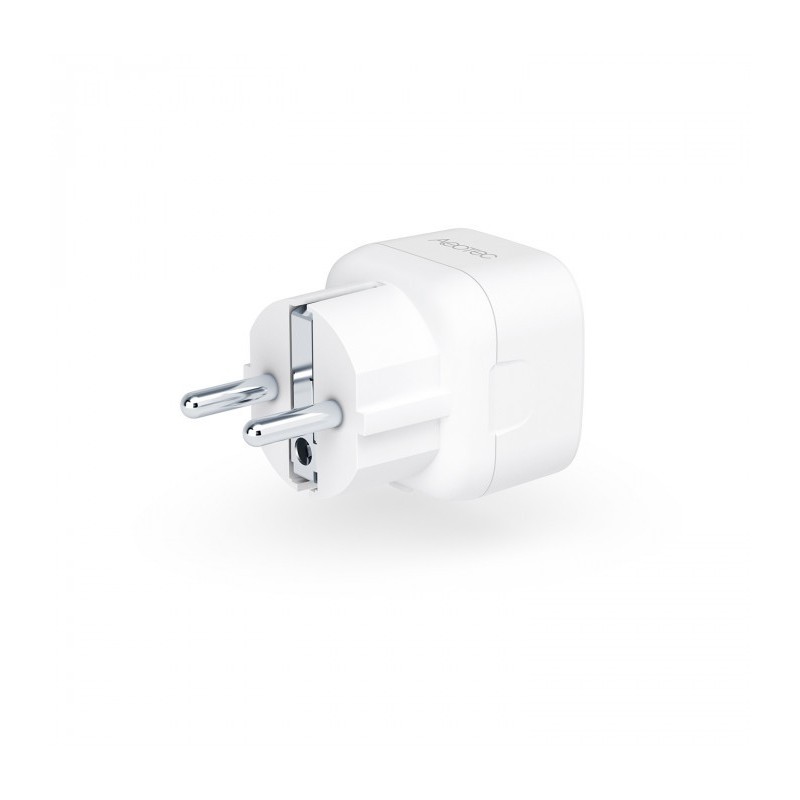

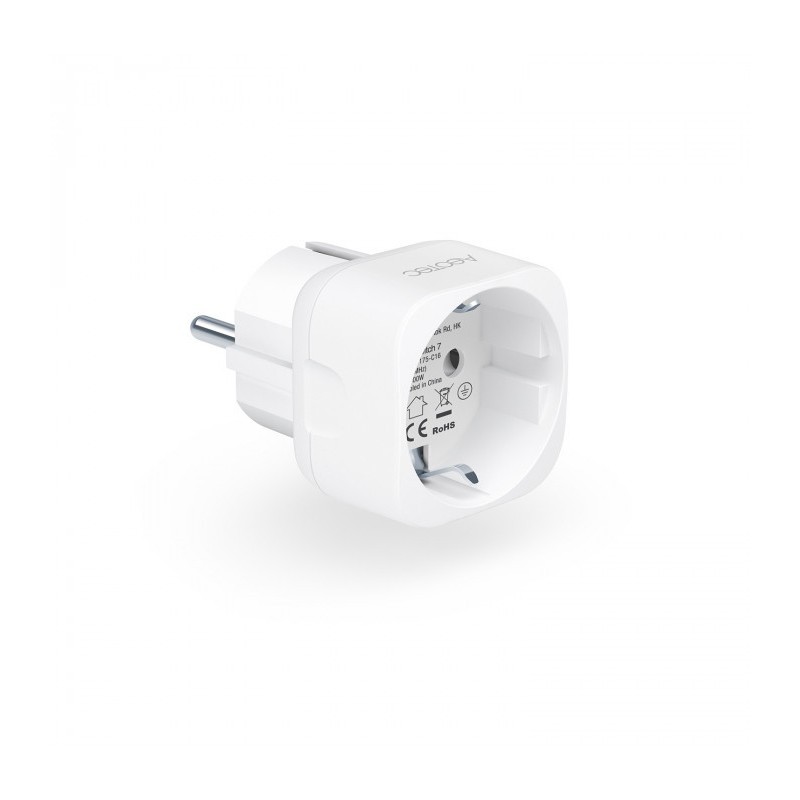

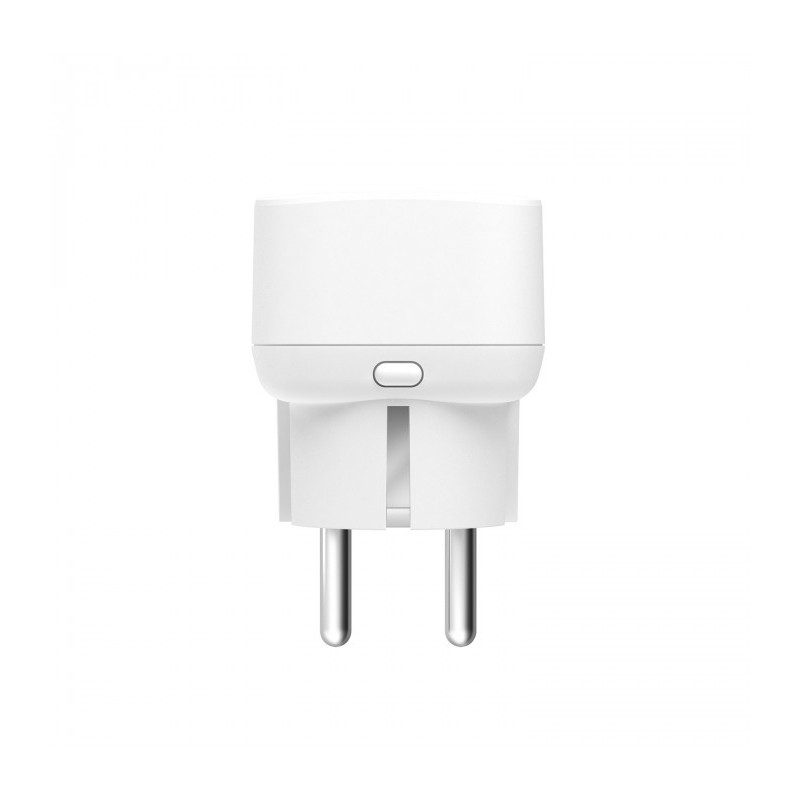

Aeotec Smart Switch 7 - Medidor de consumo Z-Wave Plus On-Off Plug

Características tecnicas

Tecnologia Domótica	Z-Wave Plus
Recurso	Medição de Consumo

Mais Informação

Ligue-o. Automatize Controle isso. Saiba quanta eletricidade você está gastando. O Aeotec Smart Switch 7 é o menor plug inteligente da Aeotec e também o mais seguro.

A inteligência está sob controle. Os aparelhos ligam quando necessário e desligam quando não estão. Em uma programação. Ou automatizado de forma inteligente e ativado quando necessário. Você está completamente sob controle. É inteligente porque pode ser automatizado. Mas também é um plugue inteligente, porque o poder de ligar ou desligar manualmente está sempre presente.

Em tempo real e com precisão de 99%, o Aeotec Smart Switch 7 analisa o consumo de eletricidade dos aparelhos e ajuda a economizar o que gasta. Além disso, o Aeotec Smart Switch 7 é um dos melhores em design e qualidade. Design europeu, engenharia alemã e certificação SGS fazem do Aeotec Smart Switch 7 o menor e mais seguro plugue inteligente.

Interruptor inteligente para o plugue Aeotec Smart Switch 7 . Mais inteligente. O mais seguro. Ainda menor.

Ligue-o. Automatizar Verificado. E entenda quanta eletricidade você gasta. Aeotec Smart Switch 7 - O menor plug inteligente da Aeotec também é o mais seguro para todos.

A inteligência está sob controle.
Os dispositivos ligam quando necessário e desligam quando não estão. Em um calendário Ou automatizado de forma inteligente e ativado quando necessário.

Você tem controle.
É inteligente porque pode ser automatizado. Mas também é um plugue inteligente, porque você sempre tem a possibilidade de ativá-lo ou desativá-lo manualmente.

As despesas estão sob controle.
Em tempo real e com precisão de 99%, o Aeotec Smart Switch 7 analisará o consumo elétrico dos dispositivos e ajudará você a economizar em suas despesas.

A qualidade está sob controle.
O design europeu, a engenharia alemã e a certificação SGS tornam o Smart Switch 7 o menor e mais seguro plugue inteligente.

Incrível longo alcance.
Graças ao seu design aprimorado de antena e ao uso de Z-Wave e S2, o sinal sem fio do Smart Switch 7 atinge até 150 metros em uso real e agora se comunica com reatividade 50% mais rápida.

Configuração quase instantânea.
A conexão do Aeotec Smart Switch 7 a um hub inteligente é feita em alguns segundos. Com o SmartStart integrado, gateways compatíveis podem ser conectados sem fio simplesmente digitalizando o código QR do soquete.

Anti-pirataria ativada.
Nenhum plugue inteligente foi mais seguro. O Aeotec Smart Switch 7 usa três níveis de segurança diferentes, incluindo o Z-Wave S2, para tornar praticamente impossível o hacking e o hacking.

FUNÇÕES:

A ficha inteligente mais pequena e segura
43x43mm de diâmetro. Apenas alguns milímetros maiores que uma captura real.
48,6% menor que o Smart Switch 6.
Certificado SGS. Empresa de certificação com sede na Suíça. Uma das três maiores empresas de certificação da UE.
"5 segundos de instalação". Integrar o SmartStart
3 camadas de segurança sem fio; chaves de rede exclusivas, criptografia AES de 128 bits e troca de chaves ECDH.
Proteção integrada contra sobretensão.
Protege contra surtos / picos de até 2.000 volts.
Projetado de acordo com as normas CE EN60950 e EN301489
Proteção integrada contra sobrecorrente - até 10 amperes.

AS ESPECIFICAÇÕES TÉCNICAS

Tecnologia sem fio: Z-Wave
Z-Wave Plus: sim
Classe de segurança: não seguro, S0, S2 não autenticado e autenticado
SmartStart: sim
Tensão de entrada: 230V 50Hz
Corrente de funcionamento: 7mA
Corrente à espera: 4mA
Corrente de saída máxima: 10 A (carga resistiva)
Potência máxima de saída: 2300W
Dimensões: 43,4 x 43.4 x 43.4 x 68mm
Peso: 56g
Potência máxima em espera: 0,6W
Repetidor: sim
Temperatura de operação: 0 a 40 ° C
Umidade de operação: 8% a 80%.
Distância de operação: 35m em ambientes fechados, 150m ao ar livre
Índice de impermeabilidade: IP20
Leitura mínima do sensor de potência: 2W
Porcentagem de erro na leitura de energia:
Menos de 300W: + -3W
Maior ou igual a 300W: + -1%.

Informação alargada da Z-Wave (Inglês)

Nome: Smart Switch 7

Fabricante:Aeotec

Identificador:ZW175-C16

Número de Certificação Z-Wave :ZC10-19066544

Plataforma de Hardware :ZM5101

FLiRS:Não

Tipo de Role :Always On Slave

Descrição breve :A small but powerful switch with energy metering function.

Descrição :1. Elegant appearance, small size, easy to use, friendly operation. 2. Support power metering function, with high measurement accuracy, and more accurate knowledge of the power consumption of the load. 3. Support over-current, over-load and over-heat protection, which is more secure and reliable. 4. Support scene personalization and is more intelligent. 5. Support Night Light Mode to reduce light pollution. 6. Support S2 Security, which is safer and more reliable. 7. Support SmartStart, making inclusion more convenient.

Descarregue o manual a partir de aqui.

Grupo

Nodos máximos

Descrição

1

5

Z-Wave Plus Lifeline. *Device Reset Locally Notification: Issued when Factory Reset is performed. *Basic Report: Issued when switch state has changed. *Binary Switch Report: Issued when switch state has changed. *Color Switch Report: Issued when a color component level of the Indicator Light has changed. *Multilevel Switch Report: Issued when the multilevel switch value of the Indicator Light has changed. *Notification Report (Type=0x08; Event=0x06): Issued when over-current detected. *Notification Report (Type=0x08; Event=0x08): Issued when over-load detected. *Notification Report (Type=0x08; Event=0x00): Issued when over-current or over-load is release. *Notification Report (Type=0x09; Event=0x03): Issued when built-in unrecoverable temperature fuse detected the internal temperature exceeds the limit and disconnect. *Meter Report: Issued periodically to report the current Meter reading, and the sending frequency is related to Configuration Parameter 0x6F (111). Issued when the current Power, Power Consumption or Current is over the threshold value.

2

5

Retransmit a Basic Set, Binary Switch Set or Scene Activation Set to the nodes associated.

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

10

2

0

Setting to disable alarm

Determines the method of disabling the alarm of the device. Note: Power off will also disable the alarm response without any limitation.

101

4

15

Configure which meter reading will be periodically report via Lifeline.

The format of the parameter is Bit field (Checkboxes). The parameter MUST be treated as a bit field where each individual bit can be set or reset. A graphical configuration tool SHOULD present this parameter as a series of checkboxes. Note: The sending frequency is related to Configuration Parameter 0x6F (111).

111

4

600

Configure the sending frequency of Meter Report.

18

1

2

LED blinking frequency

When receiving the enable Alarm, it will flash according to the blink frequency configured by this parameter until the Alarm is disable. Brightness level and color is based on current indicator. If the value of brightness level and color is 0, it will flash based on last visible color.

19

2

0

Start or stop LED blinking.(Write Only)

The parameter can be used to test the effect of LED blinking.

20

1

0

Action in case of power out.

255

1

0

Factory Reset or Initialization (Write Only)

4

2

2415

Over-load protection

Define a threshold power and automatically turn off switch when the load connected bypasses the maximum allowed power regardless of always on setting. Over-load protection will be active if the load power exceeds the setting and lasts for more than 30s. If be active, Indicator Light will become red light blinking and the product will send out Notification Report (Over-load detected), and disable the function that manually or RF control the switch state until users set Protection State to be unprotected through the Gateway or Controller. Even power off will still keep Protection State.

8

1

0

Alarm Response

Enabled by (Alarm Settings), and determines what the switch does in the case an alarm is triggered. When receives any alarm enabled by Alarm Settings, Indicator Light will keep blinking based on Parameter 0x12 (18). It will prohibit user from manually or RF control the switch state until the alarm is disable.

80

1

2

Configure what command will be sent via Lifeline when switch state has changed.

81

1

2

Load Indicator Mode setting.

Note: Configuring brightness and color of Indicator Light in different time/status of different modes will be saved in the current setting mode. Please refer to the manual for more details.

82

4

301991936

Configure the enable and disable time of Night Light Mode

If you want to set Night Light Mode to be enable at 19:00 at night and disable at 07:30 in the morning, you just need to configure: Value1=0x13, Value2=0x00, Value3=0x07, Value4=0x1E.

9

2

0

Alarm Settings

Determine if alarms are enabled in Switch, and what Switch will react to which alarm. The format of the parameter is Bit field (Checkboxes). The parameter MUST be treated as a bit field where each individual bit can be set or reset. A graphical configuration tool SHOULD present this parameter as a series of checkboxes. Please refer to the manual for more details about supported Notification Type and Notification Event.

91

2

0

Threshold Power (W) for inducing automatic report.

92

2

0

Threshold Power Consumption (kWh) for inducing automatic report.

93

1

0

Threshold Current (A) for inducing automatic report.

Basic

COMMAND_CLASS_BASIC

Notification V4

COMMAND_CLASS_NOTIFICATION_V4

Scene Activation

COMMAND_CLASS_SCENE_ACTIVATION

Switch Binary

COMMAND_CLASS_SWITCH_BINARY

Application Status

COMMAND_CLASS_APPLICATION_STATUS

Association Group Info

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic

COMMAND_CLASS_BASIC

Clock

COMMAND_CLASS_CLOCK

Configuration

COMMAND_CLASS_CONFIGURATION

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V4

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Meter V4

COMMAND_CLASS_METER_V4

Notification V4

COMMAND_CLASS_NOTIFICATION_V4

Powerlevel

COMMAND_CLASS_POWERLEVEL

Protection V2

COMMAND_CLASS_PROTECTION_V2

Scene Activation

COMMAND_CLASS_SCENE_ACTIVATION

Scene Actuator Conf

COMMAND_CLASS_SCENE_ACTUATOR_CONF

Security S0

COMMAND_CLASS_SECURITY

Security S2

COMMAND_CLASS_SECURITY_2

Supervision

COMMAND_CLASS_SUPERVISION

Switch Binary

COMMAND_CLASS_SWITCH_BINARY

Switch Color

COMMAND_CLASS_SWITCH_COLOR

Switch Multilevel V2

COMMAND_CLASS_SWITCH_MULTILEVEL_V2

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V2

COMMAND_CLASS_VERSION_V2

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Exclusion

1. Set your Z-Wave Controller into its 'Remove Device' mode in order to remove the product from your Z-Wave system. Refer to the Controller's manual if you are unsure of how to perform this step.

2. Make sure the product is powered. If not, plug it into a wall socket and power on.

3. Click Action Button 2 times quickly; it will bright violet light, up to 2s.

4. If Removing fails, it will bright red light for 2s and then turn back to Load Indicator Mode; repeat steps 1 to 3. Contact us for further support if needed.

5. If Removing succeeds, it will become breathing blue light. Now, it is removed from Z-Wave network successfully.

Inclusion

This product supports Security 2 Command Class. While a Security S2 enabled Controller is needed in order to fully use the security feature. This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.

(1) SmartStart Learn Mode

SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity.

Indicator Light will become flash white light for 1s indicating the product has been powered, and then become flash blue light indicating SmartStart Learn Mode starts. It will become constantly bright yellow light after being assigned a NodeID.

If Adding succeeds, it will bright blue light for 2s and become Load Indicator Mode.

If Adding fails, it will bright red light for 2s and turn back to breathing blue light and then start SmartStart Learn Mode again.

Note:

The label of QR Code on the product and package are used for SmartStart Inclusion. The Z-Wave DSK Code is at bottom of the package. Please do not remove or damage them.

(2) Classic Inclusion Learn Mode

1. Set your Z-Wave Controller into its 'Add Device' mode in order to add the product into your Z-Wave system. Refer to the Controller's manual if you are unsure of how to perform this step.

2. Make sure the product is powered. If not, plug it into a wall socket and power on; its LED will be breathing blue light all the time.

3. Click Action Button once, it will quickly flash blue light for 30 seconds until it is added into the network. It will become constantly bright yellow light after being assigned a NodeID.

4. If your Z-Wave Controller supports S2 encryption, enter the first 5 digits of DSK into your Controller's interface if /when requested. The DSK is printed on its housing.

5. If Adding fails, it will bright red light for 2s and then become breathing blue light; repeat steps 1 to 4. Contact us for further support if needed.

6. If Adding succeeds, it will bright blue light for 2s and then turn to Load Indicator Mode. Now, this product is a part of your Z-Wave home control system. You can configure it and its automations via your Z-Wave system; please refer to your software's user guide for precise instructions.

Note:

If Action Button is clicked again during the Classic Inclusion Learn Mode, the Classic Inclusion Learn Mode will exit. At the same time, Indicator Light will bright red light for 2s, and then become breathing blue light.

Factory Reset

If the primary controller is missing or inoperable, you may need to reset the device to factory settings.

Make sure the product is powered. If not, plug it into a wall socket and power on. To complete the reset process manually, press and hold the Action Button for at least 15s and then release. The LED indicator will become breathing blue light, which indicates the reset operation is successful. Otherwise, please try again. Contact us for further support if needed.

Note:

1. This procedure should only be used when the primary controller is missing or inoperable.

2. Factory Reset will:

(a) Remove the product from Z-Wave network;

(b) Delete the Association setting;

(c) Restore the configuration settings to the default.

Additional Special Features

Regardless of the state of the product, when over-current or over-load detected, it will automatically TURN OFF switch and set Local Protection State to be 2 and RF Protection State to be 1, and start red light blinking. Users can’t manually or RF control the switch state until setting the Protection State to be unprotected through the Gateway or Controller, even power off will still keep Protection State.

S2 Authenticated

S2_AUTHENTICATED

S2 Unauthenticated

S2_UNAUTHENTICATED

Sensors

Sensor types supported by the product.

Supported Notification Types

Select the Notification Types that the product handles (controllers), or sends (slaves).

Switch Load Capacity Watts

The amount of switch load energy the product is rated for in Watts

Z-Wave Scene Type

Indicates which of the two types of Z-Wave scene command classes are supported. Scenes or Central Scene
