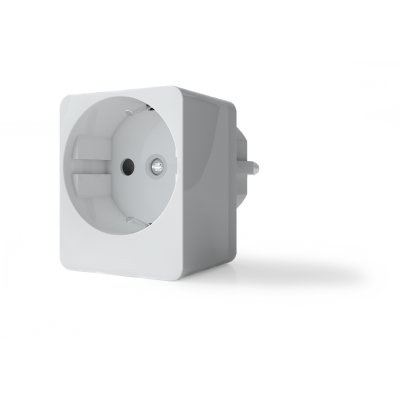

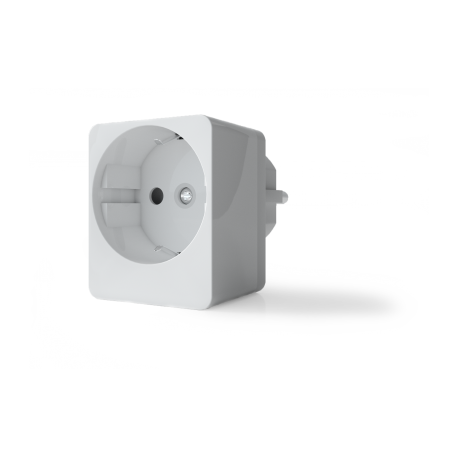

Qubino Smart Plug 16A - Plugue on-off de tamanho pequeno Z-Wave Plus

Características tecnicas

Tecnologia	Z-Wave Plus
Recurso	Medição de Consumo

Mais Informação

O plugue Z-Wave Qubino Smart Plug de 16A é ideal para o controle remoto e inteligente de dispositivos, dispositivos e dispositivos elétricos, além de medir o consumo de energia. Sem reduzir a capacidade de carga do plugue da casa à qual ele se conecta, que normalmente será de 16 amperes, o Smart Plug 16A pode suportar até mesmo os dispositivos mais consumidos em uma casa ou escritório, como o forno elétrico de convecção, o secador , a máquina de lavar roupa ou até vários dispositivos de uma só vez.

Como o Smart Plug 16A pode ser usado?

O Smart Plug 16A pode ser usado em muitos cenários diferentes, o que pode ajudar a tornar sua vida mais confortável.
Existem inúmeras opções para usar o Qubino Smart Plug 16A para controlar e medir remotamente o consumo de energia
de seus dispositivos conectados, bem como ativá-los e desligá-los manualmente ou de forma inteligente, com base em cenas ou reações de eventos em nossa automação residencial. Você pode vê-lo em comparação com outros conectores inteligentes Z-Wave aqui.

Plugue Qubino Smart Plug 16A

Controlar e medir remotamente o consumo de energia de um dispositivo elétrico ( candeeiro de mesa , por exemplo)

Controle da lâmpada Z-Wave

Controlar e medir remotamente o consumo de energia de um dispositivo elétrico ( aquecedor de água quente doméstico, por exemplo)

Controle térmico com o celular

Controlar e medir remotamente o consumo de energia de um dispositivo elétrico (por exemplo, um forno )

Controle remoto de um forno

Controlar e medir remotamente o consumo de energia de um dispositivo elétrico (um ferro , por exemplo)

Controle remoto de ferro

Controlar e medir remotamente o consumo de energia de um dispositivo elétrico (um ventilador , por exemplo)

Ventilador de teto controle remoto

Controlar e medir remotamente o consumo de energia de um dispositivo elétrico (um radiador elétrico , por exemplo)

Controle remoto de aquecimento com o celular

Meça o consumo de energia do refrigerador remotamente e / ou acumulado

Meça o consumo da geladeira

Meça remotamente o consumo de energia do microondas

Meça o consumo de microondas

Medir remotamente o consumo de energia da TV

medir consumo elétrico de televisão

Meça remotamente o consumo de energia de computadores e servidores conectados a uma tomada elétrica

Medir o consumo de computadores ou servidores

Principais vantagens

O inteligente Q-Plug Smart Plug 16A Z-Wave , o menor no mercado em sua categoria, é ideal para controlar remotamente dispositivos elétricos e medir o consumo de energia, sem reduzir a energia elétrica do plugue ao qual nos conectamos, como é frequentemente o caso acontecer com outras fichas competitivas. Você pode controlar dispositivos de alto consumo (como medir seu consumo de energia e ativá-los remotamente) e é um dispositivo Plug & Play.

Controle de comutação automática

O Z Wave Qubino Smart Plug 16A pode ligar ou desligar dispositivos / luzes automaticamente após um determinado período de tempo (quando você estiver longe de casa). Por exemplo, a luz se apagará automaticamente se estiver ligada por 8 horas, digamos. Esta função é independente de outras cenas e comandos de gateway (hub)

Controle outros dispositivos na sua rede Z-Wave

Conecte o Smart Plug 16A com outros dispositivos em sua rede para acionar remotamente e automaticamente outro dispositivo Z-Wave. E outros dispositivos Z-Wave ativam seu Qubino Smart Plug 16A

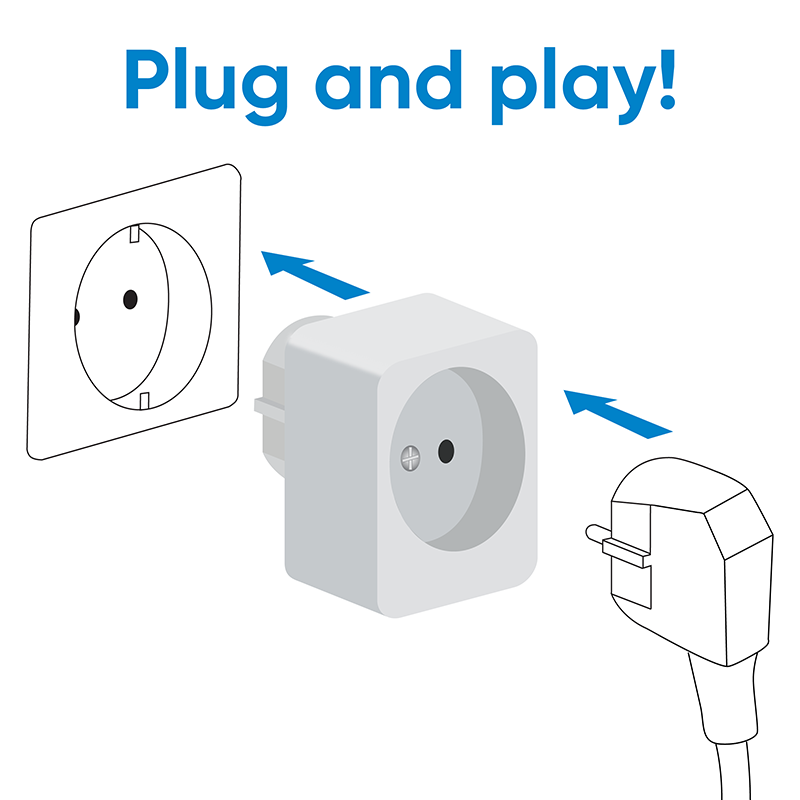

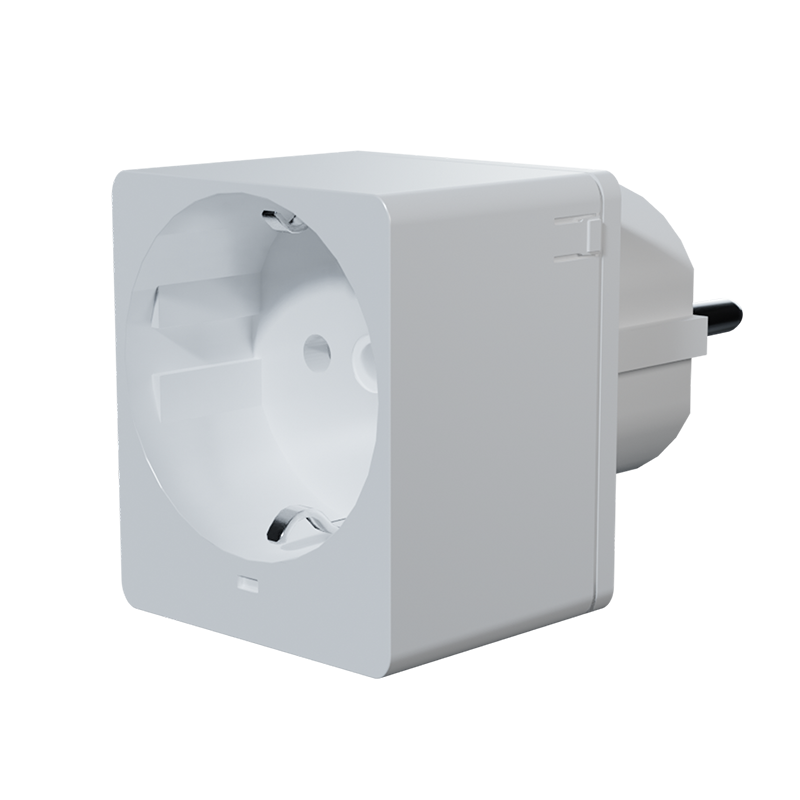

A instalação mais simples

O Qubino Smart Plug 16A permite a instalação mais fácil e rápida possível: é um dispositivo Plug & Play, o que significa que as habilidades de instalação não são necessárias para a configuração do dispositivo. O dispositivo se adapta a qualquer tomada schuko .

S: Botão de serviço (usado para incluir ou excluir o Qubino Smart Plug 16A da rede Z-Wave e para ligar / desligar o relé interno quando usado manualmente)

LED1:

Quando o Smart Plug 16A é EXCLUÍDO:

Quando o relé está desligado:

"o LED azul pisca (1 segundo ligado, 1 segundo desligado)

Quando o relé está ligado:

"LED azul está aceso
"o LED vermelho está piscando (0,3 segundo ligado, 0,3 segundo desligado) quando a corrente excede 14.4A
"o LED vermelho está ligado depois que a sobrecarga ocorreu

Quando o Smart Plug 16A está INCLUÍDO:

Quando o relé está desligado:

"O LED está desligado

Quando o relé está ligado:

"LED azul está aceso
"o LED vermelho está piscando (0,3 segundo ligado, 0,3 segundo desligado) quando a corrente excede 14.4A
"o LED vermelho está ligado depois que a sobrecarga ocorreu

Conteúdo do pacote:

O pacote contém 1 produto e 1 manual do usuário.

Dimensões da embalagem (LxAxP): 43 x 52 x 75 mm
Peso Bruto (com embalagem): 80 g

Download

Qubino Smart Plug 16A Manual

Download (2.44M)

Informação alargada da Z-Wave (Inglês)

Nome: Smart Plug 16A

Fabricante:QUBINO

Identificador:ZMNHYD1

Número de Certificação Z-Wave :ZC10-18116325

Plataforma de Hardware :ZM5101

FLiRS:Não

Tipo de Role :Always On Slave

Descrição breve :The Qubino Smart Plug 16A is ideal for remotely controlling electrical devices and measuring the energy consumption.

Descrição :The Smart Plug 16A controls on/off function for the connected device. It also measures power consumption of the connected device according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates energy and power from the measured signals.

Descarregue o manual a partir de aqui.

Grupo

Nodos máximos

Descrição

1

Lifeline - Supports the following command classes: • Device Reset Locally: triggered upon request • Meter Report: triggered according to Configuration parameters 40 and 42 • Notification Report: triggered on overload/overcurrent or according to Configuration parameters 70, 71 and 72 • Switch Binary Report: triggered upon request or according to Configuration parameters 11 and 12

2

5

Plug Status - Supports the following command classes: • Basic set: triggered at change of relay state

3

5

Plug Threshold - Supports the following command classes: • Basic set: triggered at change of active power in combination with Configuration parameters 50, 51 and 52

Número

Tamanho (Bytes)

Valor por defeito

Nome

Descrição

11

2

0

Parameter no. 11 - Turn Smart plug 16A Off Automatically with Timer

Parameter no. 11 - Turn Smart plug 16A Off Automatically with Timer If Smart plug 16A is ON, you can schedule it to turn OFF automatically after a period defined in this parameter. The timer is reset to zero each time the device receives an ON command, either remotely (from the gateway (hub) or associated device) or locally from the switch. Values (size is 2 byte dec): • default value 0 • 0 - Auto OFF Disabled 1 - 32535 = 1 - 32535 seconds. Auto OFF timer enabled for a given number of seconds.

12

2

0

Parameter no. 12 - Turn Smart plug 16A On Automatically with Timer

If Smart plug 16A is OFF, you can schedule it to turn ON automatically after a period of time defined in this parameter. The timer is reset to zero each time the device receives an OFF command, either remotely (from the gateway (hub) or associated device) or locally from the switch. Values (size is 2 byte dec): • default value 0 • 0 - Auto ON Disabled 1 - 32535 = 1 - 32535 seconds. Auto ON timer enabled- for a given amount of seconds.

30

1

0

Parameter no. 30 - Restore on/off status for Smart plug 16A after power failure

This parameter determines if on/off status is saved and restored for the Smart plug 16A after power failure. Values (size is 1 byte dec): • default value 0 • 0 - Device saves last on/off status and restores it after a power failure. • 1 - Device does not save on/off status and does not restore it after a power failure, it remains off.

40

1

20

Parameter no. 40 – Watt Power Consumption Reporting Threshold for Smart plug 16A

Choose by how much power consumption needs to increase or decrease to be reported. Values correspond to percentages, so if 20 is set (by default), the device will report any power consumption changes of 20% or more compared to the last reading. Values (size is 1 byte dec): • default value 20 • 0 - Power consumption reporting disabled • 1 - 100 = 1% - 100% Power consumption reporting enabled. New value is reported only when Wattage in real time changes by more than the percentage value set in this parameter compared to the previous Wattage reading, starting at 1% (the lowest value possible). Power consumption needs to increase or decrease by at least 1 Watt to be reported, REGARDLESS of percentage set in this parameter. NOTE: When reporting Watts, module will automatically report also [V] (Voltage) and [A] (Amperes)

42

2

0

Parameter no. 42 – Watt Power Consumption Reporting Time Threshold for Smart plug 16A Load

Set value refers to the time interval with which power consumption in Watts is reported (30 – 32535 seconds). Values (size is 2 byte dec): • default value 0 • 0 - Power consumption reporting on time interval disabled • 30 - 32535 = 30 - 32535 seconds. Power consumption reporting enabled. Report is sent according to time interval (value) set here. The device is reporting the following values (if there was a change): W, V and A. NOTE: The energy consumption (kWh) is reported regardless of the values, set in the parameters 40 and 42. The energy consumption will be reported, when it increases for at least 0,1 kWh.

50

2

30

Parameter no. 50 – Down value

Lower power threshold used in parameter no. 52. Values (size is 2 byte dec): • default value 30 = 30 W • 0 – 4000 = 0W – 4000 W Down value cannot be higher or equal to the value specified in parameter no. 51. If the set value is higher or equal to the value in parameter 51, the set command is ignored. NOTE: if parameter no. 50 value is 100W, if measured power is lower than 100W, the association is sent. Power threshold step is 1W

51

2

50

Parameter no. 51 – Up value

Upper power threshold used in parameter no. 52 Values (size is 2 byte dec): • default value 50 = 50 W • 0 – 4000 = 0 W – 4000W Up value cannot be lower or equal to the value specified in the parameter no. 50. If the set value is lower or equal to the value in parameter 50, the set command is ignored. NOTE: If parameter no. 51 value is 200W. If measured power is higher than 200W the association is sent. Power threshold step is 1W.

52

1

6

Parameter no. 52 - Action in case of exceeding defined power values (parameters 50 and 51)

Parameter defines the way 3rd association group devices are controlled, depending on the current power load Values (size is 1 byte dec): • default value 6 • 0 – function inactive • 1 – turn the associated devices on, once the power drops below Down value (parameter no. 50) • 2 – turn the associated devices off, once the power drops below Down value (parameter no. 50) • 3 – turn the associated devices on, once the power rises above Up value (parameter no. 51) • 4 – turn the associated devices off, once the power rises above Up value (parameter no. 51) • 5 – 1 and 4 combined. Turn the associated devices on, once the power drops below Down value (parameter no. 50). Turn the associated devices off, once the power rises above Up value (parameter no. 51). • 6 – 2 and 3 combined. Turn the associated devices off, once the power drops below Down value (parameter 50). Turn the associated devices on, once the power rises above Up value (parameter no. 51).

70

2

0

Parameter no. 70 - Overload safety switch

The function allows for turning off the controlled device in case of exceeding the defined power for more than 3 seconds. Controlled device can be turned back on by S-button or sending a control frame. By default this function is inactive. Values (size is 2 byte dec): • default value 0 • 1 – 4000 = 1 W – 4000W • 0 = function not active NOTE: This functionality is not an overload safety protection, please check installation note for details. In case of overload the following message will be send towards the controller: • COMMAND_CLASS_NOTIFICATION_V5 • The Alarm V1 type field set to 0x00 • Notification Type 0x08 and 0x08 (Overload detected) NOTE: Regardless of the value set in this parameter the overcurrent protection is always active and can not be disabled.

71

2

0

Parameter no. 71 – Power threshold

This functions allows setting the power threshold for triggering the Program started notification. When the threshold will be reached the notification will let the user know that the device connected to the smart plug started working. Values (size is 2 byte dec): • default value 0 • 1 – 4000 = 1 W – 4000W • 0 = function not active When the threshold is reached the following message will be send towards the controller: • COMMAND_CLASS_NOTIFICATION_V5 • The Alarm V1 type field set to 0x00 • Notification Type 0x0C and 0x01 (Program started)

72

1

Parameter no. 72 – Time interval

This function allows setting the time interval for triggering the Program completed notification. When the active power will fall below the power threshold set in parameter 71, the time interval will start and when it will expire the notification will let the user know that the device connected to the smart plug finished working. The time interval is useful for the devices that have pause intervals during operations. Values (size is 1 byte dec): • default value 1 • 0 – 125 = 0 – 125 minutes • 0 = immediate sending of notification when active power drops bellow threshold set in parameter 71 When the the time interval expires the following message will be send towards the controller: • COMMAND_CLASS_NOTIFICATION_V5 • The Alarm V1 type field set to 0x00 • Notification Type 0x0C and 0x03 (Program completed)

73

1

Parameter no. 73 – Turn Smart Plug OFF

This function allows turning the Smart Plug output to OFF once the time interval is expired and the Program completed notification is sent to the controller. Values (size is 1 byte dec): • default value 0 • 0 – function disabled • 1 – turn OFF relay once the notification Program completed is sent

74

1

Parameter no. 74 – Enable/disable LED

This function allows enabling or disabling the Smart Plug LED. In case the user doesn’t want the LED indicator he can turn it OFF with this parameter. NOTE: if an overload or overcurrent occurs the red LED will still turn ON regardless of the value set in this parameter. Values (size is 1 byte dec): • default value 1 • 0 – LED is disabled • 1 – LED is enabled

Basic V2

COMMAND_CLASS_BASIC_V2

Association Group Information V2

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2

Association V2

COMMAND_CLASS_ASSOCIATION_V2

Basic V2

COMMAND_CLASS_BASIC_V2

Configuration

COMMAND_CLASS_CONFIGURATION

Device Reset Locally

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Firmware Update Meta-Data V4

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Manufacturer Specific V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Meter V4

COMMAND_CLASS_METER_V4

Notification V5

COMMAND_CLASS_NOTIFICATION_V5

Powerlevel

COMMAND_CLASS_POWERLEVEL

Security S0

COMMAND_CLASS_SECURITY

Security S2

COMMAND_CLASS_SECURITY_2

Supervision

COMMAND_CLASS_SUPERVISION

Switch Binary V2

COMMAND_CLASS_SWITCH_BINARY_V2

Transport Service V2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Version V2

COMMAND_CLASS_VERSION_V2

Z-Wave Plus Info V2

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Exclusion

REMOVAL FROM A Z-WAVE NETWORK (Z-WAVE EXCLUSION)

1. Connect the device to the power supply

2. Make sure the device is within direct range of your Z-Wave gateway (hub) or use a hand-held Z-Wave remote to perform exclusion

3. Enable add/remove mode on your Z-Wave gateway (hub)

4. Press and hold the Service button S from 2 to 6 seconds (with holding the S button for the interval between 2 and 6 seconds you put the device in EXCLUSION MODE)

5. The device will be removed from your network, but any custom configuration parameters will not be erased

Inclusion

AUTOMATICALLY ADDING THE DEVICE TO A Z-WAVE NETWORK (AUTO INCLUSION)

1. Enable add/remove mode on your Z-Wave gateway (hub)

2. Automatic selection of secure/unsecure inclusion

3. The device can be automatically added to a Z-Wave network during the first 2 minutes

4. Connect the device to the power supply

5. Auto-inclusion will be initiated within 5 seconds of connection to the power supply and the device will automatically enrol in your network (when the device is excluded and connected to the power supply it automatically enters the INCLUSION MODE state.)

Factory Reset

FACTORY RESET

• The reset is only possible the first minute after the power on

• Press and hold the service button S more than 6 seconds

• The device will be removed from your network and the led will start blinking. The device is now in its factory default state.

• When the S button is held more than 6 seconds after the first minute is passed, the relay should not react!

By resetting the device, all custom parameters previously set on the device will return to their default values, and the owner ID will be deleted. Use this reset procedure only when the main gateway (hub) is missing or otherwise inoperable.

Additional Special Features

1. Qubino Smart Plug 16A supports S2 Authenticated security.

2. Smart Plug 16A can automatically turn devices/lights on or off after a set period of time. Independent of other scenes and gateway (hub) commands.

S2 Authenticated

S2_AUTHENTICATED

S2 Unauthenticated

S2_UNAUTHENTICATED

IP (Ingress Protection) Rated

Product is suitable for Outdoor use and is waterproof under an IP (Ingress Protection) rating system.

Outdoor Use

Product is suitable for use outdoors.

Color

If the product is only available in one color, pick the color from the list.

Supported Meter Type

Indicate which type of metering is supported by the device.
